| Brand Name: | NUOYING |
| Model Number: | NYRD900 |
| MOQ: | 1 pc |
| Price: | $280~$580/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
80GHz Tank RS485 Radar Level Transmitter Measurement with High Precision
80GHz NYRD900 Radar Level Transmitter Product Description
The NYRD900 radar level transmitter, which uses a millimeter-wave band with a higher frequency than the Ku band radar, provides long-range imaging in the presence of long-range target detection, strong smoke and dust conditions, multi-spectral imaging has important applications, and can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger security.
80GHz NYRD900 Radar Level Meter Design Feature
1. Good transient performance:Based on self-developed COMS millimeter wave RF chip. It is independent research and development, and has independent software, independent chip.
2. Small beam angle, small antenna size and easy installation: the smaller the beam angle, the smaller the influence on the measured project, which greatly improves the measurement reliability and accuracy.
3. Low energy: Not easy to destroy the substance to be tested.
4. Large measuring range and small blind area:The good results can also be obtained for small can measurement.
5. Strong penetrability: It can be used to detect the internal structure of material.
80GHz NYRD900 Radar Level Transmitter Technical Parameters
| Typical application |
1.The electromagnetic wave emission Angle is less than 3 degrees, suitable for narrow space or waveguide tube measurement; 2.Suitable for large tanks (150m) and small tanks (small blind area); 3.High precision and high sanitary level measurement; 4.Occasions with complex process conditions (mixing, heating rod, ladder, floating roof, strong dust, strong steam, etc.) |
| Transmission frequency | 76Hz-81Hz, FM scanning frequency width 5GHz |
| Antenna form | Lens antenna, antiseptic lens antenna |
| Antenna material | PTFE, 304＋PTFE |
| Measuring range | 0.08-150m |
| Measuring accuracy | 0.05%-0.1% F.S |
| Power supply | 24VDC, 220VAC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+260℃ (≥260℃ can be customized) |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread, flange |
| Protection Class | IP67,IP68 (optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Note: Products can be customized according to the specific requirements of users.

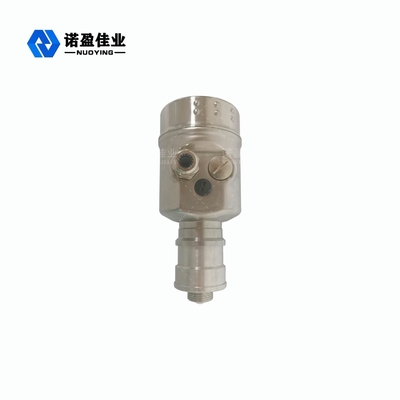

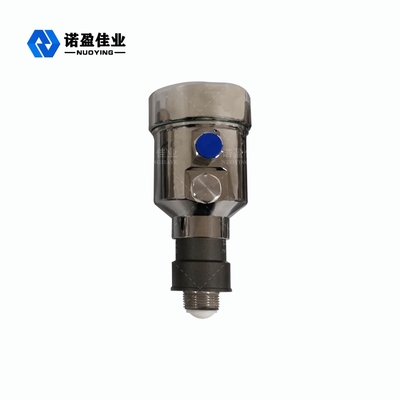

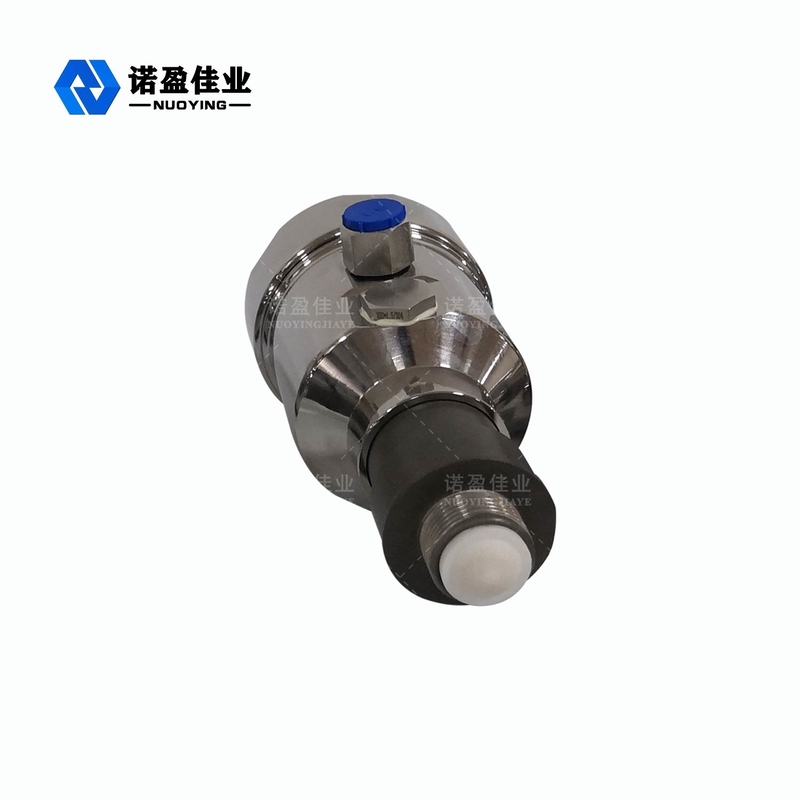

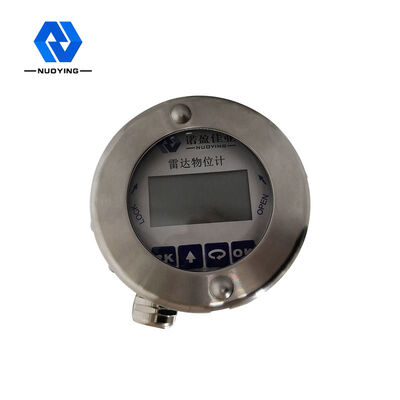

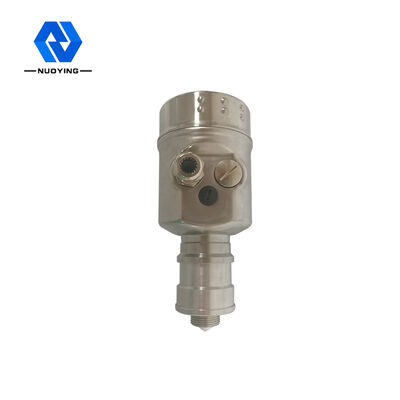

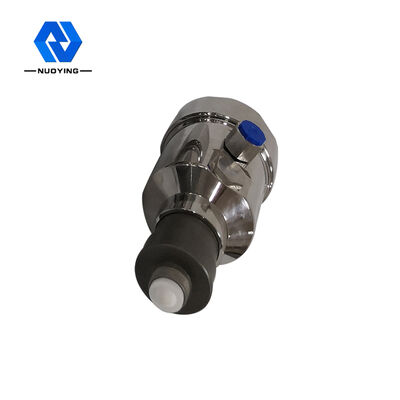

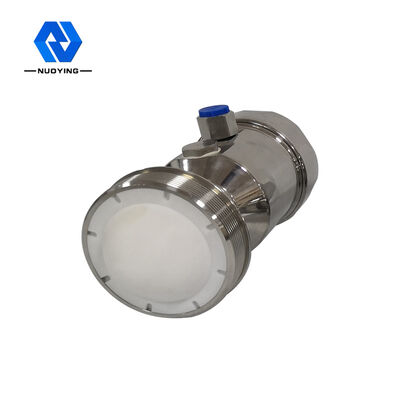

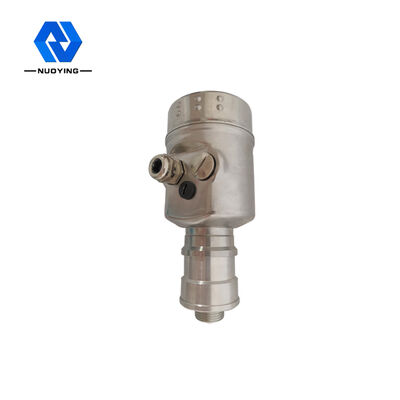

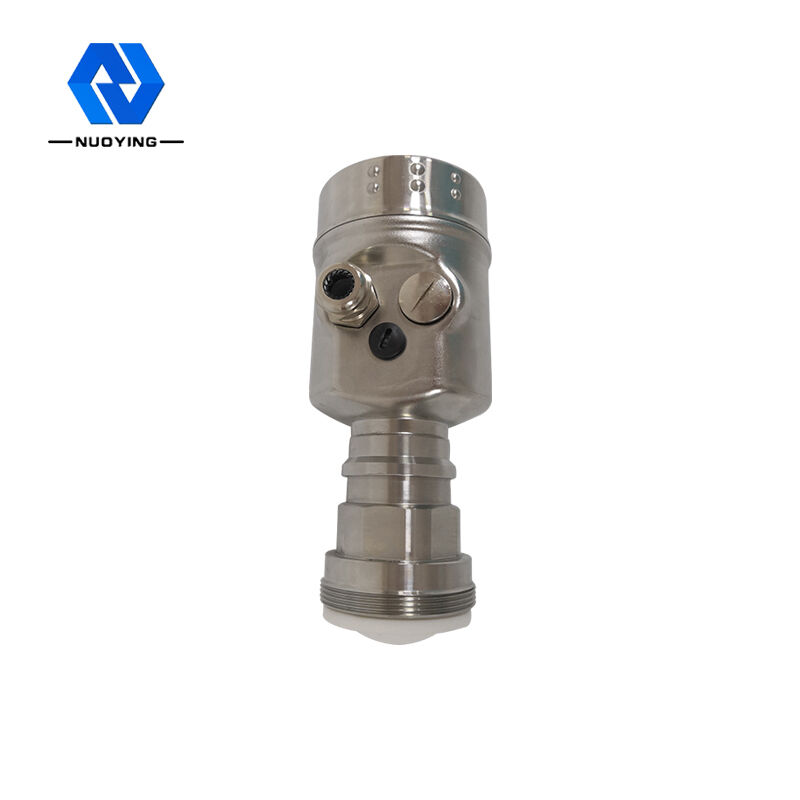

80GHz NYRD900 Radar Level Transmitter Pictures
