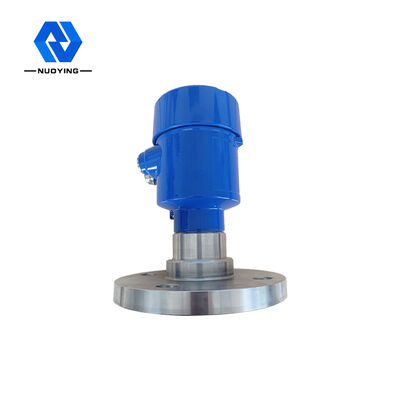

80GHz Radar Level Transmitter Product Description


The NYRD900 radar level transmitter is widely used in remote target detection, remote imaging, multispectral imaging, strong smoke and dust conditions, etc. As it uses the millimeter-wave band with a higher frequency than the Ku band , it can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger security.

80GHz Radar Level Transmitter Design Features

1.Good transient performance: Based on the self-developed CMOS millimeter-wave RF chip, to achieve a more compact RF structure, higher noise-signal ratio.

2.The 5GHz working bandwidth makes the product have a higher measurement resolution ratio and measurement accuracy

3.Coherence: a coherent current-driven dipole shock generation or a nonlinear differential frequency effect of a coherent laser pulse generation

4.Low energy: millimeter wave photon energy has only a few millielectron volt, there will be no X-ray ionization and destruction of the substance to be detected, so it is not easy to destroy the substance to be detected

5.Strong penetration: Strong penetration for non-polar substances. Many nonmetallic nonpolar materials absorb less rays in this band and, therefore, can be used to probe the internal structure of the material. For example, ceramics / cardboard / plastic products / foam are transparent to this band of electromagnetic radiation, and can also be used for airport / station safety monitoring, such as exploring machinery / explosives and drugs, or for circuit board welding detection.

6.Easy to be absorbed by polar molecules: this band has less scattering in non-homogeneous substances, and can detect and measure the water vapor content. You can also study the material composition or conduct quality control by analyzing their characteristic profiles.

7.Large measuring range, small blind area. The maximum range can reach 120m, and the blind area can reach 8cm.

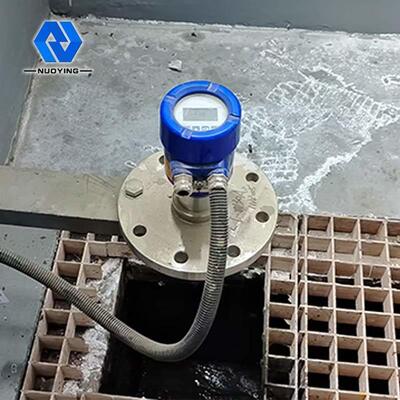

80GHz Radar Level Transmitter Typical Applications

1. Suitable for the measurement of narrow space or guided wave tube

2. Applicable to super large tank (120m) and small tank

3. High-precision, high-hygiene grade of measurement

4. Occasions with complex process conditions (mixing, heating Rod, ladder, floating roof, strong dust, strong steam, etc.)

NYRD900 Radar Level Transmitter Technical Parameters



NYRD900 Radar Level Transmitter Customers
