| Brand Name: | NUOYING |
| Model Number: | NYRD900 |
| MOQ: | 1 pc |
| Price: | $240~$350/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
80GHZ High Frequency Easy Installation 80m 120m Smart Radar Level Transmitters with Small Integrated Lens Antenna
80GHz High Frequency Radar Level Transmitter Working Principle
NYRD900 FMCW radar products (also known as millimeter wave radar), due to the higher frequency of millimeter wave than Ku-band radar, it has important applications in long-distance target detection, strong smoke and dust environment, long-distance imaging, multi-spectral imaging, etc., and can detect targets smaller than microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.
◎Coherence: Coherence is produced by coherent current-driven dipole oscillations, or by nonlinear difference-frequency effects of coherent laser pulses.
◎Strong penetrability: It has strong penetrating power for non-polar substances. Many non-metallic non-polar materials absorb less radiation in this band. Therefore, they can be used to detect the internal structure of materials. For example, ceramics, cardboard, plastic products, foam, etc. , are transparent to electromagnetic radiation in this band, and can also be used for security detection in airports and stations, such as detection of machinery, explosives and drugs, or for circuit board welding detection.
◎Low energy: The energy of millimeter wave photons is only a few millielectron volts, and there is no phenomenon of X-ray ionization and destruction of the substance to be detected, so it is not easy to destroy the substance to be detected.
80GHz High Frequency Radar Level Transmitter Typical Applications
1. Suitable for the measurement of narrow space or guided wave tube
2. Applicable to super large tank (150m) and small tank
3. High-precision, high-hygiene grade of measurement
4. Occasions with complex process conditions (mixing, heating Rod, ladder, floating roof, strong dust, strong steam, etc.)
80GHz High Frequency Radar Level Transmitter Technical Parameters
| Typical application |
1.The electromagnetic wave emission Angle is less than 3 degrees, suitable for narrow space or waveguide tube measurement; 2.Suitable for large tanks (150m) and small tanks (small blind area); 3.High precision and high sanitary level measurement; 4.Occasions with complex process conditions (mixing, heating rod, ladder, floating roof, strong dust, strong steam, etc.) |
| Transmission frequency | 76Hz-81Hz, FM scanning frequency width 5GHz |
| Antenna form | Lens antenna, antiseptic lens antenna |
| Antenna material | PTFE, 304＋PTFE |
| Measuring range | 0.08-150m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC, 220VAC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+260℃(≥260℃ can be customized) |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread, bracket, flange, sanitary clamp (optional) |
| Protection level | IP65,IP67,IP68(optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Note: Products can be customized according to the specific requirements of users.

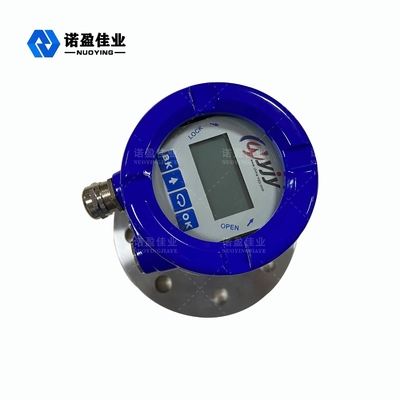

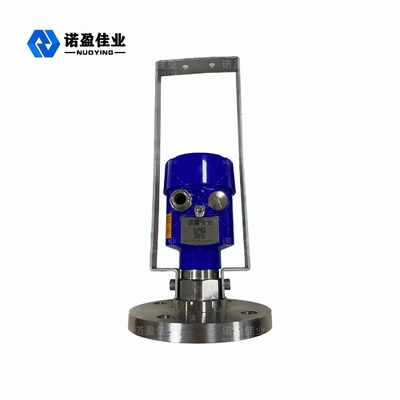

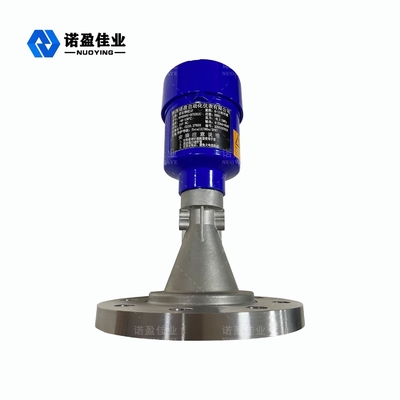

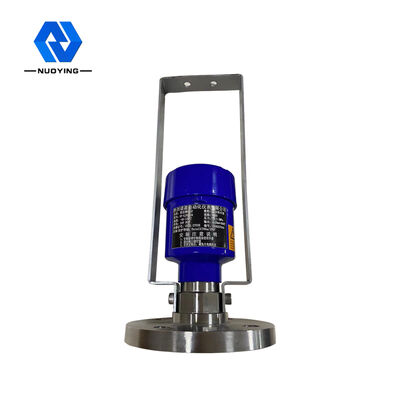

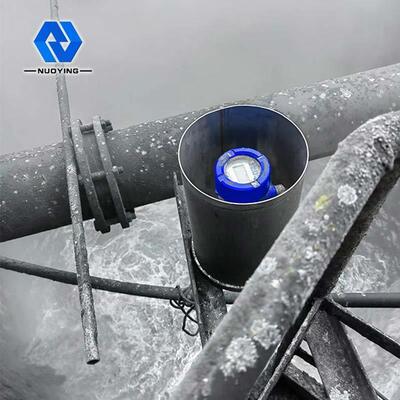

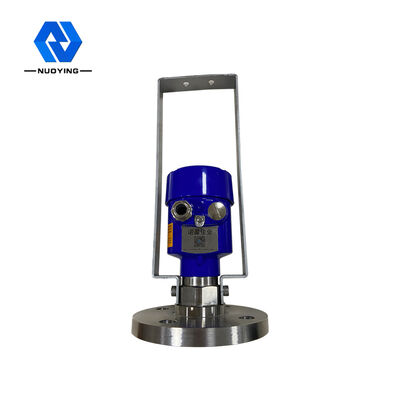

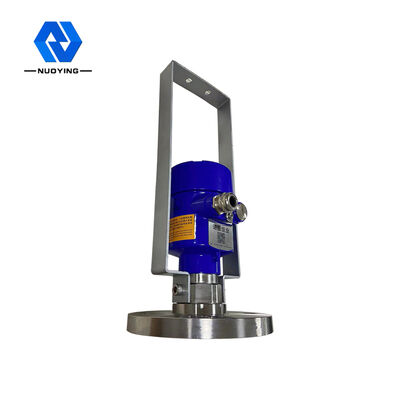

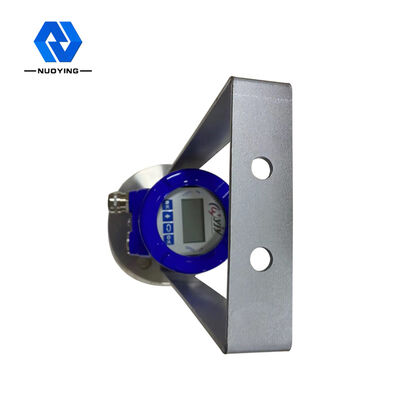

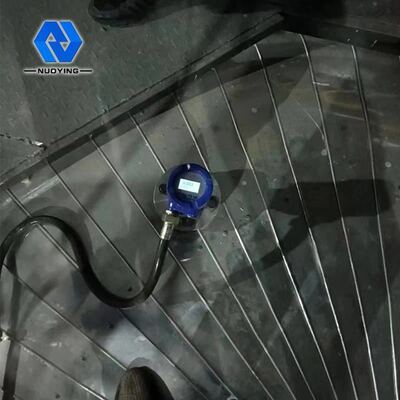

80GHz High Frequency Radar Level Transmitter Detail Picture
