| Brand Name: | NUOYING |
| Model Number: | NYRD900 |
| MOQ: | 1 pc |
| Price: | $160~$580/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
80GHz Radar Level Transmitter Design Features
1.Good transient performance: Based on the self-developed CMOS millimeter-wave RF chip, to achieve a more compact RF structure, higher noise-signal ratio.
2.The 5GHz working bandwidth makes the product have a higher measurement resolution ratio and measurement accuracy
3.Coherence: a coherent current-driven dipole shock generation or a nonlinear differential frequency effect of a coherent laser pulse generation
4.Low energy: millimeter wave photon energy has only a few millielectron volt, there will be no X-ray ionization and destruction of the substance to be detected, so it is not easy to destroy the substance to be detected
5.Strong penetration: Strong penetration for non-polar substances. Many nonmetallic nonpolar materials absorb less rays in this band and, therefore, can be used to probe the internal structure of the material. For example, ceramics / cardboard / plastic products / foam are transparent to this band of electromagnetic radiation, and can also be used for airport / station safety monitoring, such as exploring machinery / explosives and drugs, or for circuit board welding detection.
80GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD900 |
| Transmission frequency | 76Hz-81Hz, FM scanning frequency width 5GHz |
| Antenna form | Lens antenna, antiseptic lens antenna |
| Antenna material | PTFE, 304＋PTFE |
| Measuring range | 0.08-150m |
| Measuring accuracy | 0.05%-0.1% F.S |
| Power supply | 24VDC, 220VAC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+260℃ (≥260℃ can be customized) |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread, flange |
| Protection Class | IP67, IP68 (optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Note: Products can be customized according to the specific requirements of users.

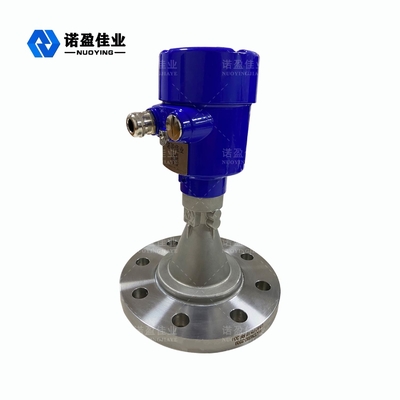

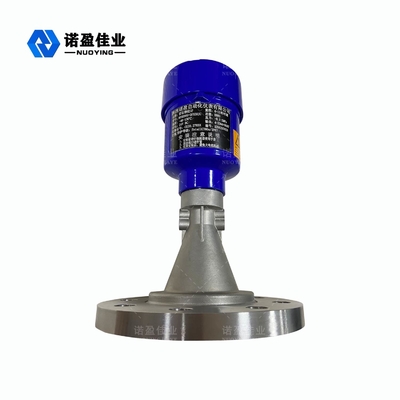

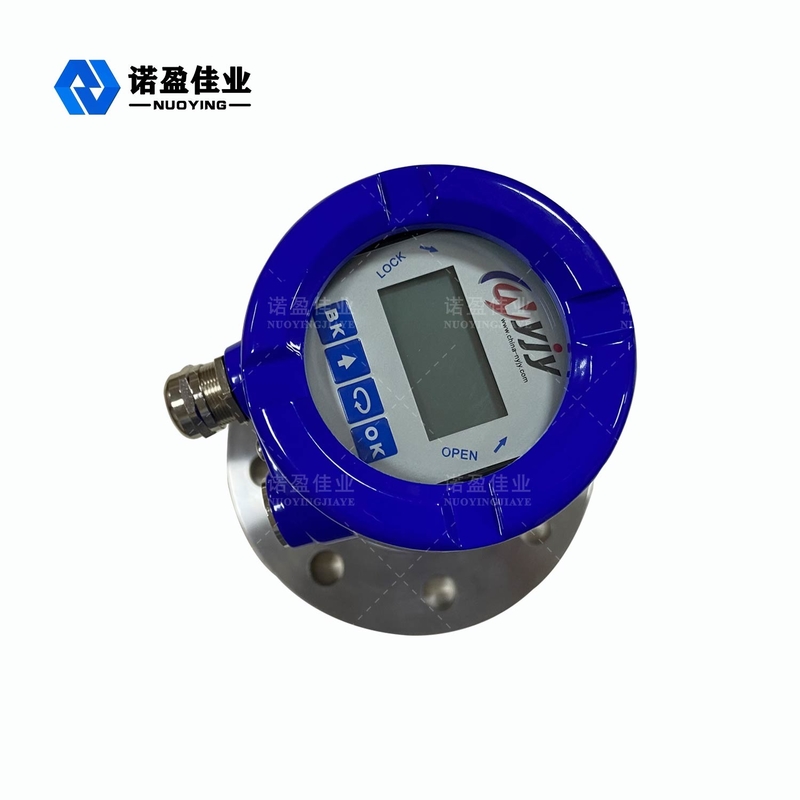

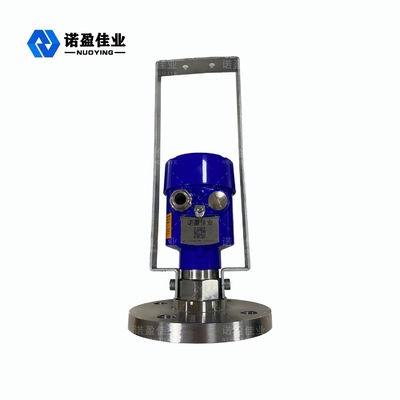

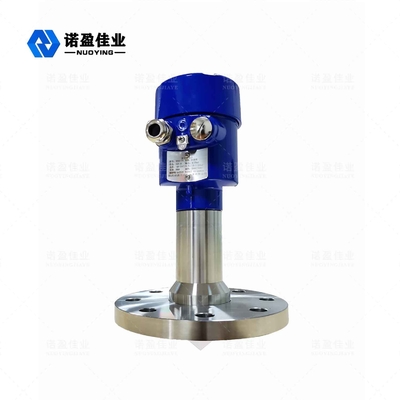

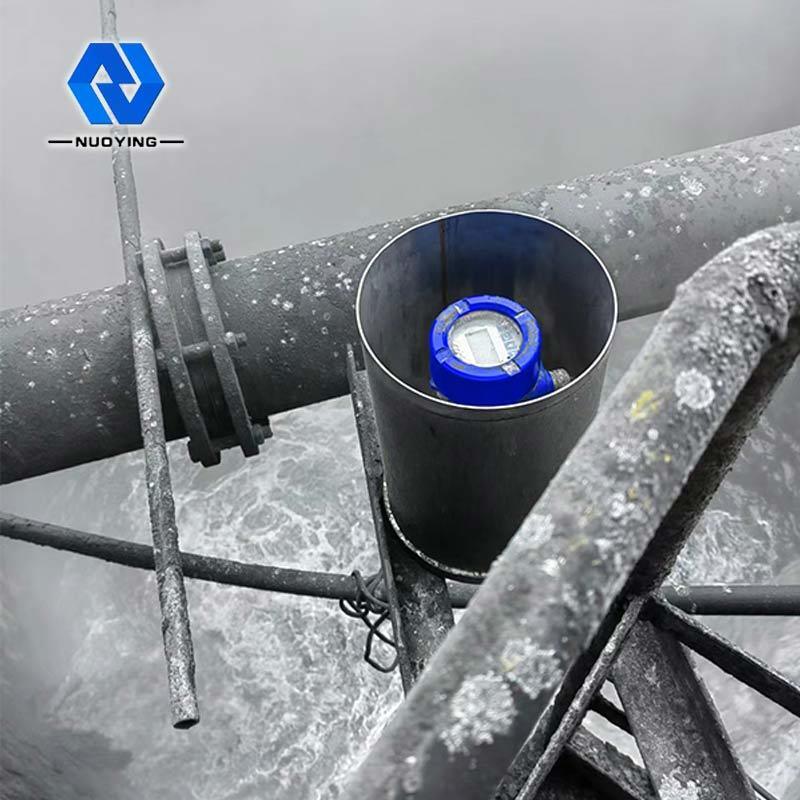

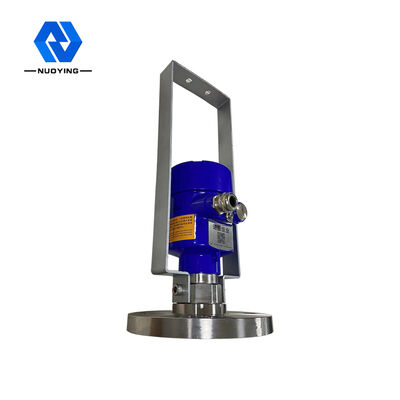

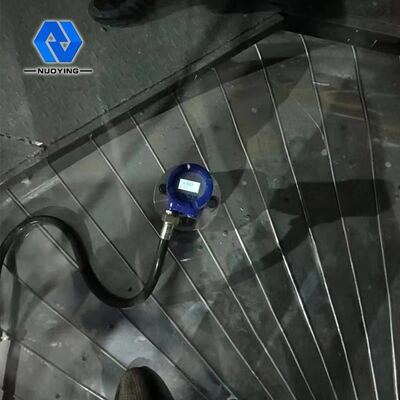

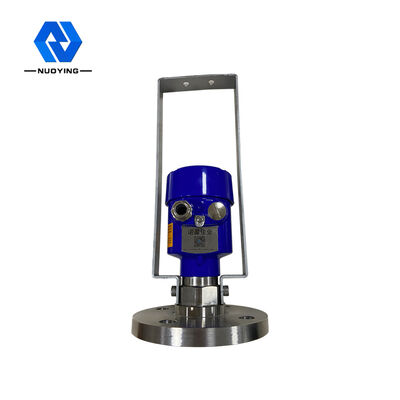

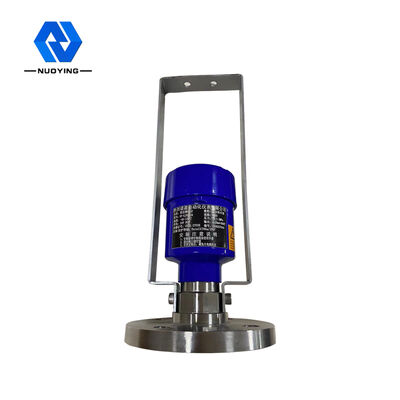

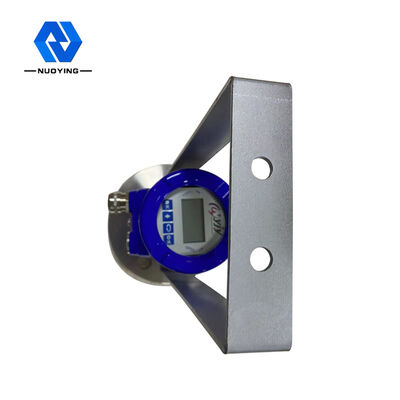

80GHz Radar Level Transmitter Pictures
