| Brand Name: | NUOYING |
| Model Number: | NYRD808 |
| MOQ: | 1 pc |
| Price: | $138~$760/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
26GHz Industrial Non Contact Tank Radar Type Material Level Sensor 70m Radar Level Transmitter for Solids and Particles
26GHz Radar Level Transmitter Product Description
The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 70 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
26GHz Radar Level Transmitter Application Fields
1. Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
2. Chemical: Raw material silos, ammonia tank, asphalt storage tank, etc.
3. Metallurgy: Raw material silos, auxiliary material silos, etc.
4. Foodstuffs: Raw sugar storage tank, etc.
5. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
6. Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
7. Other: Quarry, coal mine, environmental protection and other industries.
26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD808 |
| Typical application | Solids, particles and strong dust |
| Antenna material | PTFE, 304, 316, PP, PFA |
| Antenna type | Horn Antenna |
| Measuring range | 70m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire), 220VAC |
| Medium temperature | -40~+120℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

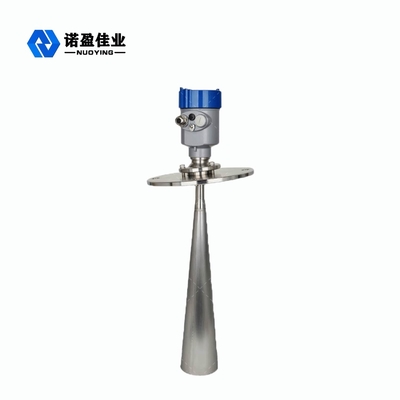

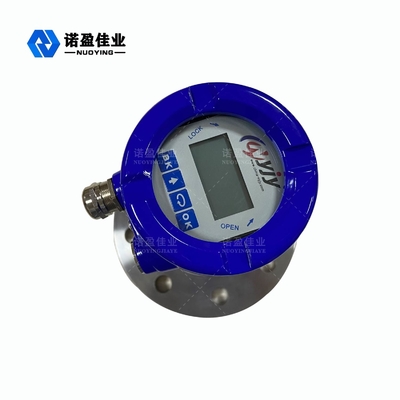

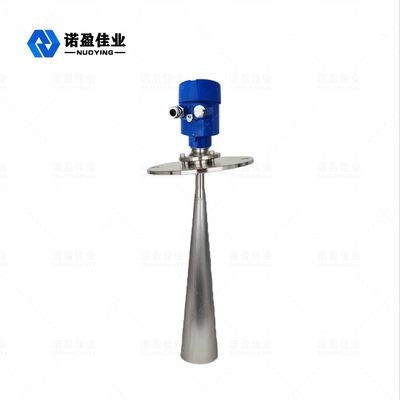

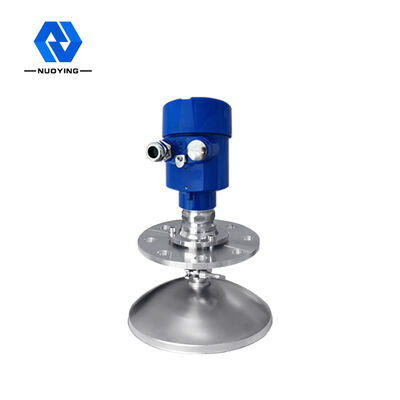

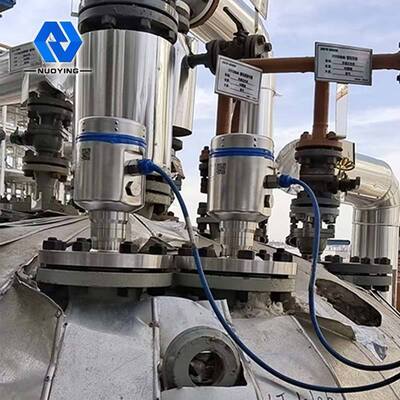

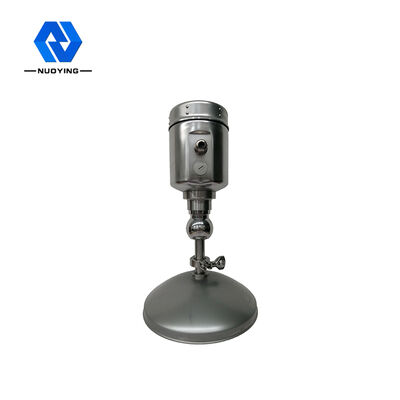

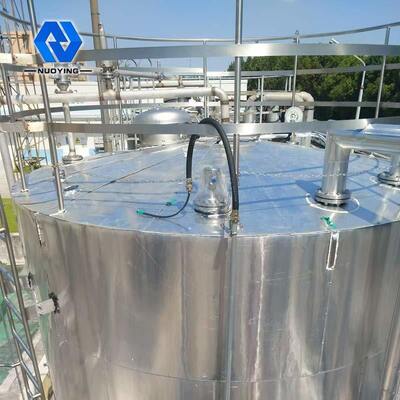

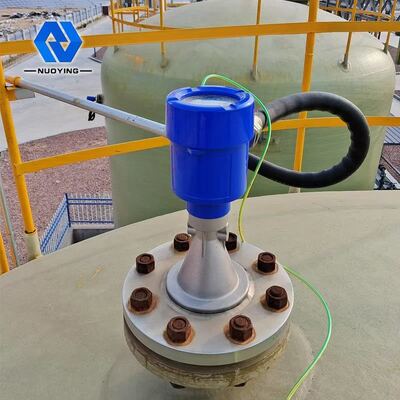

26GHz Radar Level Transmitter Related Pictures
