Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter

Brand Name: NUOYING
Model Number: NYSP-Z18
MOQ: 1pcs
Price: $219 to $269/pcs
Payment Terms: T/T
Supply Ability: 1000pcs per month
Detail Information
Place of Origin:
Xi'an,Shaanxi,China
Certification:
CE, SIL, ATEX
Grade:
Industrial
Warranty:
12 Months
Customized Support:
OEM, ODM
Brand Name:
NUOYING
Typical Application:
Insulating Solids, Insulating Liquids
Measuring Accuracy:
0.05%~0.1%F.S
Power Supply:
24VDC
Process Connection:
1" BSPT Thread(standard),flange Mounting(optional)
Medium Temperature:
-40~+200℃
Process Pressure:
-0.1~8.0MPa
Signal Output:
4...20mA/HART/RS485/Modbus...
Protection Grade:
IP 65 ,IP 67 ,IP 68(optional)
Packaging Details:
40*30*30cm
Supply Ability:
1000pcs per month
Product Description

Hot Sale NUOYING 4-20ma NYSP-Z18 Rf Admittance Capacitive Level Meter



Nuoying NYRD-Z18 Radio Frequency Admittance Level Meter Overview



Products Description

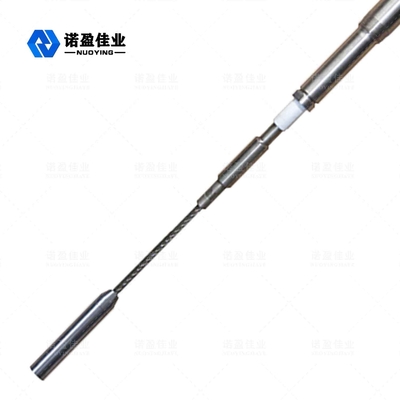

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter 0

NYSP-Z18 RF Admittance Level Transmitter Design Feature

1. Anti-hanging material: The unique drive shielding circuit design improves the performance of the anti-hanging material.
2. Power supply range: power supply operating range: 13 ~ 35VDC.
3. Adaptability: Probe process temperature: -100 ℃ ~ 800 ℃; no dead zone measurement, can be used in horizontal measurement occasions of more than ten centimeters or even a few centimeters, with a large measurement range;the maximum measurement range of up to hundreds of meters, or even hundreds of meters; viscous material interface measurement is the great advantage of the instrument.
4. Stability: The output is stable and reliable, and it is resistant to the influence of fly ash, blanking, water vapor,
crystallization and waxing.
5. Maintenance-free: no moving, no easy-to-wear parts, no need for frequent cleaning, maintenance, commissioning.
Product Parameters

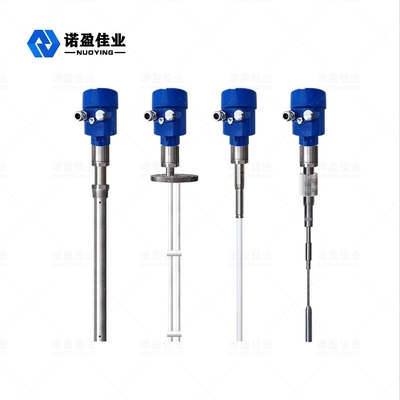

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter 1
Typical application
Conductive liquid, interface, split mountable
Probe type
Insulated flexible cable PTFE (optional)
Measuring accuracy
0.05%-0.1%F.S
Power supply
24VDC(Two lines, four lines)
Medium temperature
-40~+200℃
Process connection1
1" BSPT thread (standard) flange mounting (optional)
Process pressure
0.1~8.0MPa
Explosion-proof grade
Exia II CT6(optional)

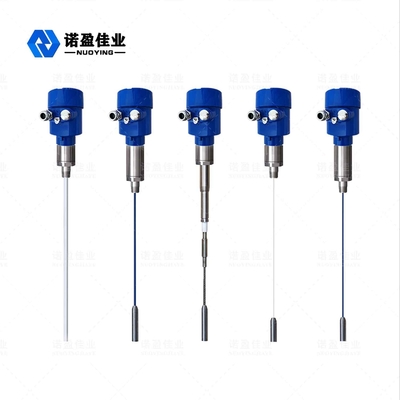

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter 2

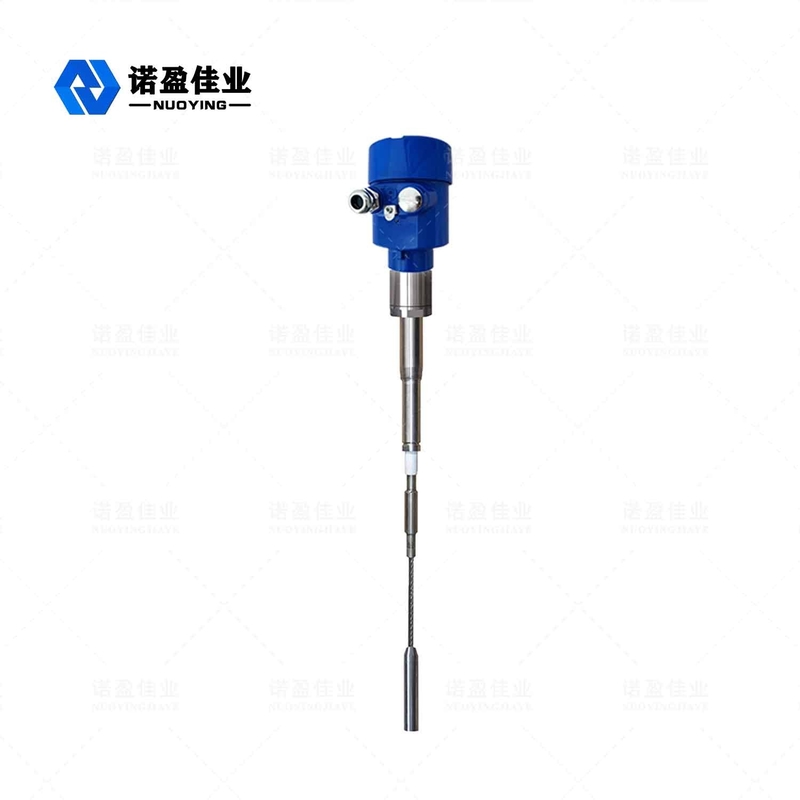

Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter 3
Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter 4
Hot Sale NUOYING 4-20mA NYSP-Z18 Rf Admittance Capacitive Level Meter 5
