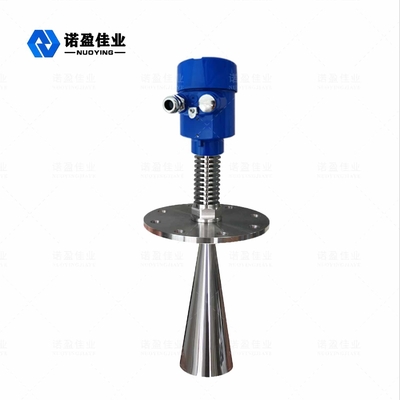

NYRD806 26GHz Factory Radar Level Transmitter Non-contact Horn Type Radar Level Gauge for Slightly Corrosive Liquids

NYRD806 26GHz Factory Radar Level Transmitter Non-contact Horn Type Radar Level Gauge for Slightly Corrosive Liquids

NYRD806 26GHz Radar Level Transmitter Product Description

The NYRD806 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 30 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.

NYRD806 26GHz Radar Level Transmitter Working Principle

The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).

The datum of measurement: Thread bottom surface or sealing surface of flange.

Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).

NYRD806 26GHz Radar Level Transmitter Design Features

• Antenna size is small, easy to install; Non-contact radar, no wear, no pollution

• Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes

• Severe dust environment has little impact on the operation of high frequency level meter

• Shorter wavelength, better reflection for inclined solid surfaces

• Small beam angle and concentrated energy

• The measurement blind area is smaller, and good results can be achieved for small tank measurement

• High signal-to-noise ratio for better performance even under fluctuating conditions

• High frequency, the best choice for measuring solid and low dielectric constant media



NYRD806 26GHz Radar Level Transmitter Application Fields

1. Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.

2. Oilfield: Crude oil storage tanks, refined oil storage tanks, settling tanks, sewage tanks, drilling mud tanks, etc.

3. Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.

4. Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.

5. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.

6. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.

7. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.

8. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.

9. Paper: Storage tower, chemical material storage silo, etc.

10. Other: Quarry, environmental protection, shipbuilding and other industries.

NYRD806 26GHz Radar Level Transmitter Technical Parameters

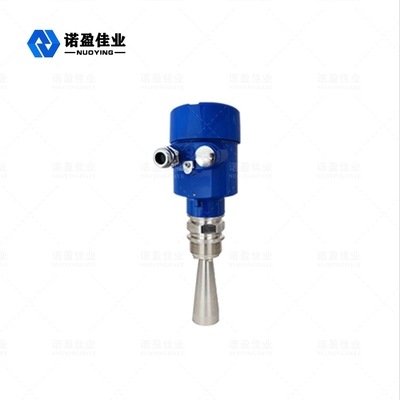

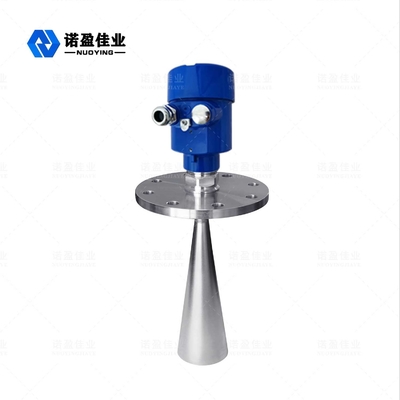

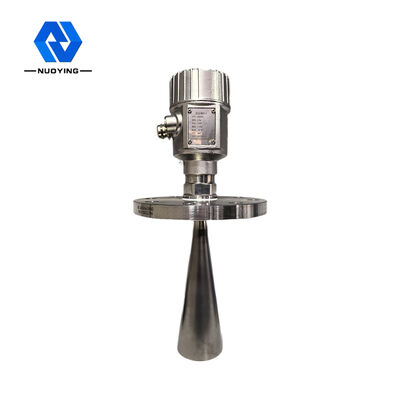

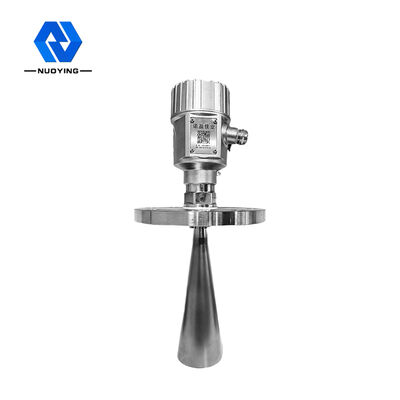

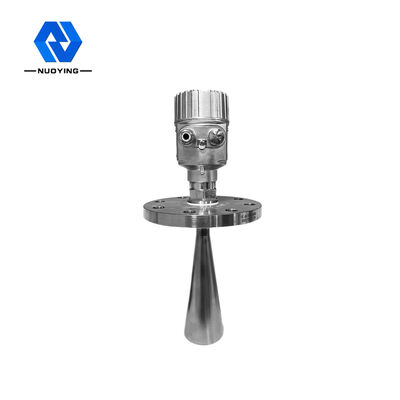

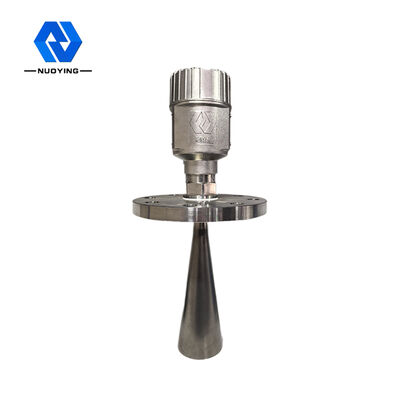

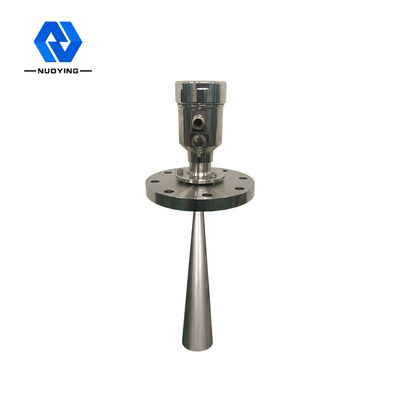

NYRD806 26GHz Radar Level Transmitter Related Pictures
