| Brand Name: | NUOYING |
| Model Number: | NYRD806 |
| MOQ: | 1 pc |
| Price: | $138~$800/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Cost-Effective 26GHz OEM ODM Water Radar Level Sensor 4-20mA 316SS outdoor Radar Level Gauge
26GHz Radar Level Transmitter Working Principle
The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
The datum of measurement: Thread bottom surface or sealing surface of flange.
Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).
26GHz Radar Level Transmitter Design Features
Small beam angle and concentrated energy
The measurement blind area is smaller, and good results can be achieved for small tank measurement
High signal-to-noise ratio for better performance even under fluctuating conditions
High frequency, the best choice for measuring solid and low dielectric constant media
26GHz Radar Level Transmitter Application Fields
1. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
2. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
3. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
4. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
5. Paper: Storage tower, chemical material storage silo, etc.
6. Other: Quarry, environmental protection, shipbuilding and other industries.
26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD806 |
| Typical application |
Temperature resistant, pressure resistant, slightly corrosive liquid |
| Antenna material | 316L (optional) |
| Antenna type | Horn Antenna |
| Measuring range | 30m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire) |
| Medium temperature | -40~250℃ |
| Process connection | Bracket, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

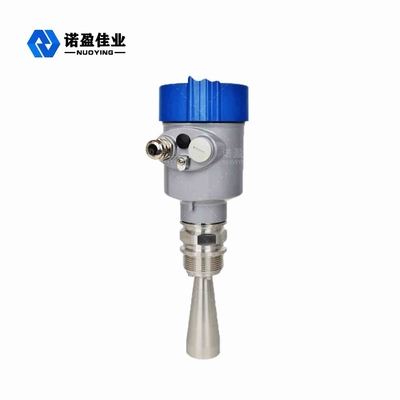

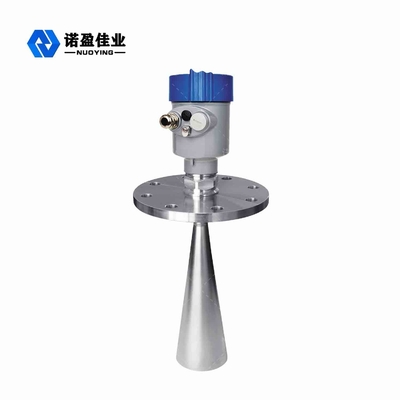

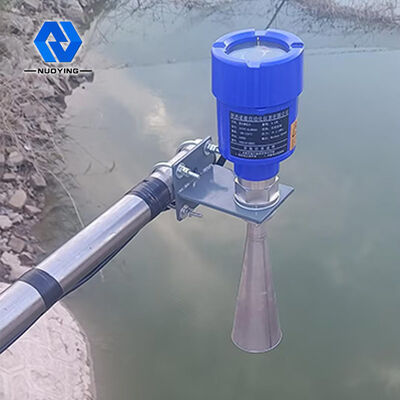

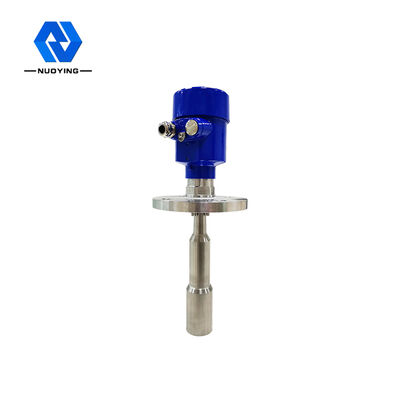

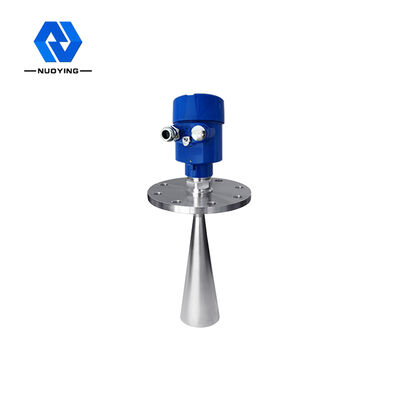

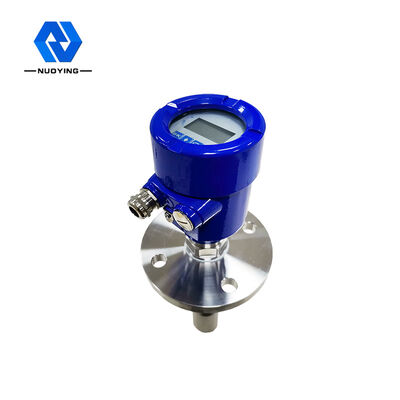

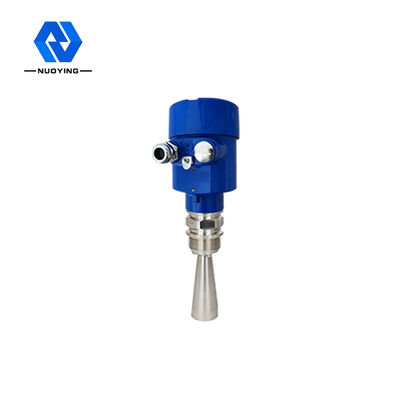

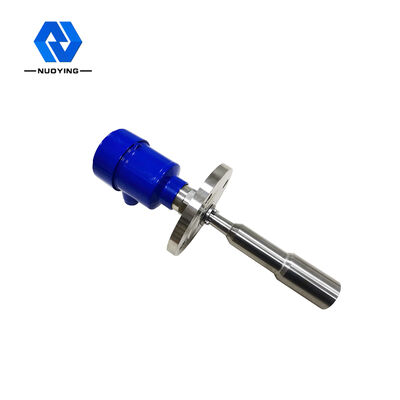

26GHz Radar Level Transmitter Related Pictures
