Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
NYRD-TJ 26GHz Radar Level Gauge Product Description
The NYRD-TJ Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The radar level antenna emits an extremely narrow microwave pulse. The pulse travels through space at the speed of light and meets the surface of the medium being measured. Part of its energy is reflected back and received by the same antenna.
The time interval between the emitted and received pulses is proportional to the distance from the antenna to the surface of the measured medium. Due to the extremely high propagation speed of electromagnetic waves, the time interval between the transmitted and received pulses is very small (nanosecond level) and difficult to determine. The 26G HF radar level transmitters uses a special correlation solution technology to accurately identify the time interval between the transmitted and received pulses, which further calculates the distance from the antenna to the surface of the measured medium.
NYRD-TJ 26GHz Radar Level Gauge Design Features
1. Manufactured with extremely stable materials.
2. Adopt advanced non-contact measurement.
3. Measure the level of liquid and solid media.
4. It can measure all media with a dielectric constant> 1.8.
5. The maximum measurement range is 40m.
NYRD-TJ 26GHz Radar Level Gauge Technical Parameters
| Product Model | NYRD-TJ |
| Typical application | Easy to crystallize, dew condensation, toxic, strong corrosion, strong dust, sanitary grade, etc |
| Frequency | 26GHz |
| Accuracy | ±3mm |
| Range | 40m |
| Antenna material | 304L+PTFE, 316L+PTFE (optional) |
| Antenna type | Lens antenna |
| Echo sampling | 100 times/s |
| Process temperature | -40~+120℃, -40~+260℃ |
| Process pressure | -0.1~2.0MPa |
| Process connection | Flange, bracket (optional) |
| Electrical Interface | M20×1. 5, ½ " NPT |
| Signal output | 4...20mA/HART (two/four) /RS485/Modbus... |
| Power supply | 24VDC (two lines, four lines) |
| Explosion-proof grade | Exia II CT6, Exd Ⅱ CT6 |
| Protection class | IP67 |
Note: Products can be customized according to the specific requirements of users.

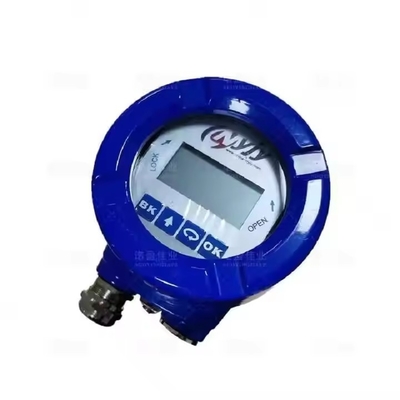

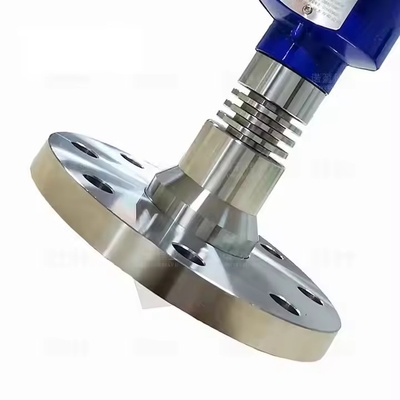

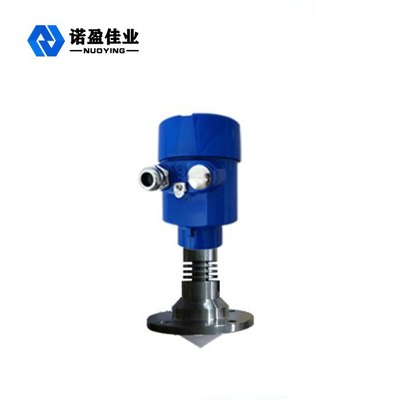

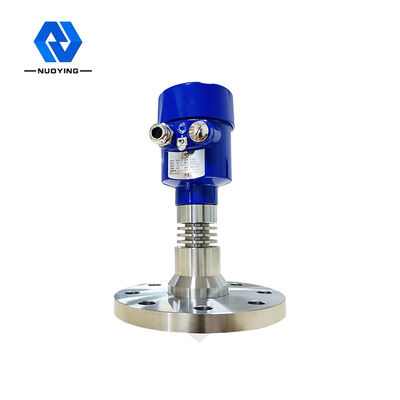

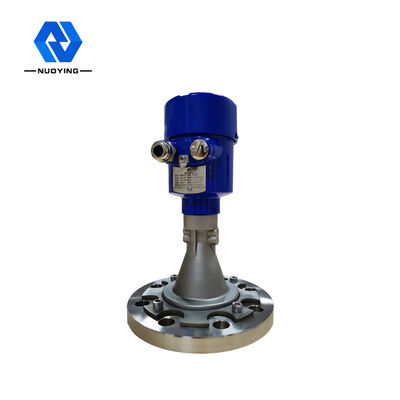

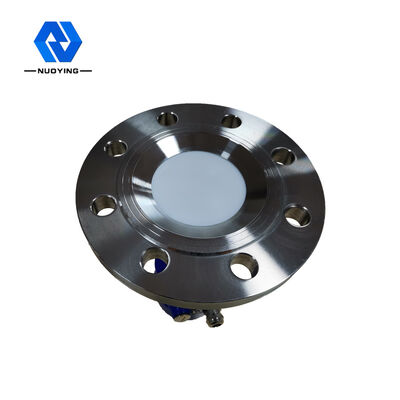

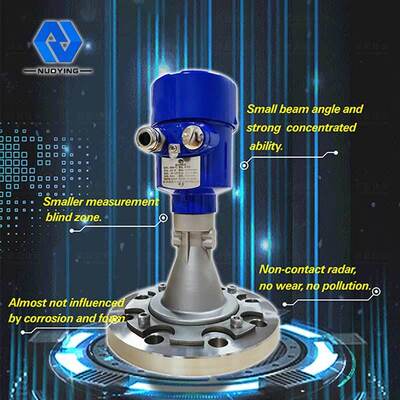

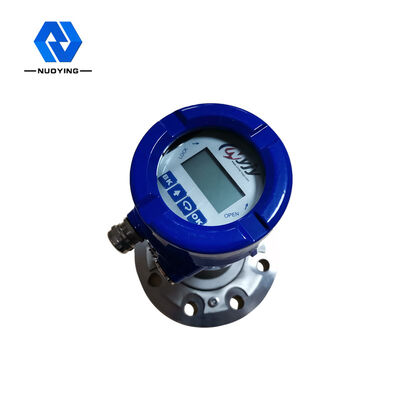

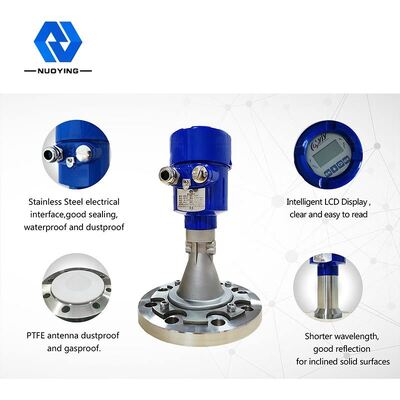

NYRD-TJ 26GHz Radar Level Gauge Related Pictures
