| Brand Name: | NUOYING |
| Model Number: | NYRD-TJ |
| MOQ: | 1 pc |
| Price: | $280~$780/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Factory Supplied High-quality Smart 26GHz Radar Level Gauge for Continuous Monitoring of Liquids with 40m Range
26GHz Radar Level Gauge Product Description
The NYRD-TJ Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. The antenna is further optimized, higher-speed signal analysis and processing performed by the new fast microprocessor, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc.
26GHz Radar Level Gauge Design Features
1. Manufactured with extremely stable materials.
2. Adopt advanced non-contact measurement.
3. Measure the level of liquid and solid media.
4. It can measure all media with a dielectric constant> 1.8.
5. The maximum measurement range is 40m.
6. Adopting two-wire system and loop power supply technology, the power supply voltage and output signal are transmitted through a two-core cable.
7. Not affected by noise, steam, dust, vacuum and other working conditions.
8. Not affected by changes in medium density, viscosity and temperature.
26GHz Radar Level Gauge Technical Parameters
| Product Model | NYRD-TJ |
| Typical application | Easy to crystallize, dew condensation, toxic, strong corrosion, strong dust, sanitary grade, etc |
| Frequency | 26GHz |
| Accuracy | ±3mm |
| Range | 40m |
| Antenna material | 304L+PTFE, 316L+PTFE (optional) |
| Antenna type | Lens antenna |
| Echo sampling | 100 times/s |
| Process temperature | -40~+120℃, -40~+260℃ |
| Process pressure | -0.1~2.0MPa |
| Process connection | Flange, bracket (optional) |
| Electrical Interface | M20×1. 5, ½ " NPT |
| Signal output | 4...20mA/HART (two/four) /RS485/Modbus... |
| Power supply | 24VDC (two lines, four lines) |
| Explosion-proof grade | Exia II CT6, Exd Ⅱ CT6 |
| Protection class | IP67 |
Note: Products can be customized according to the specific requirements of users.

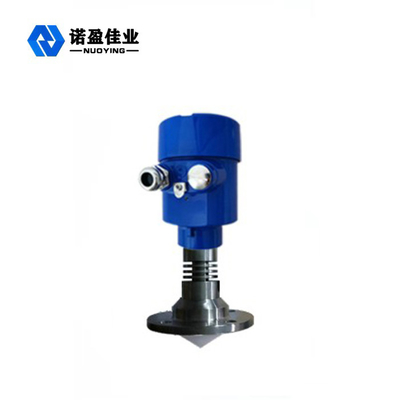

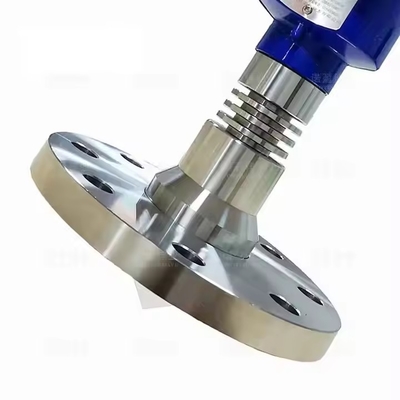

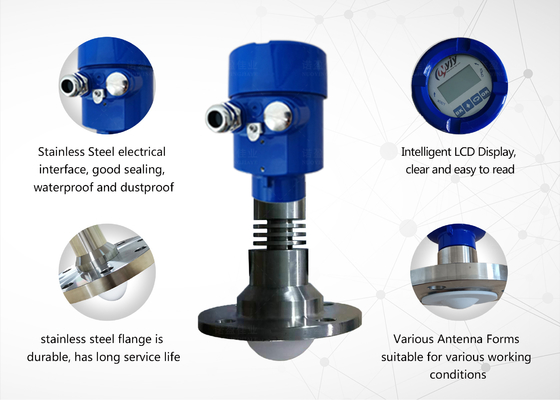

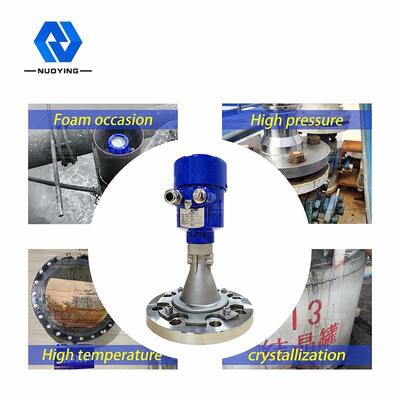

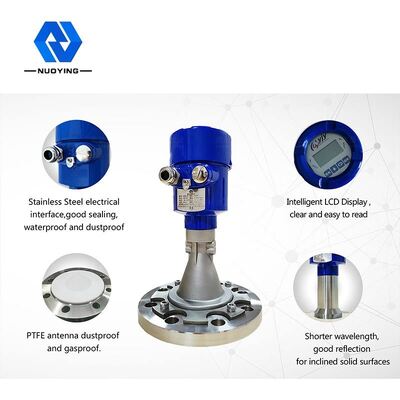

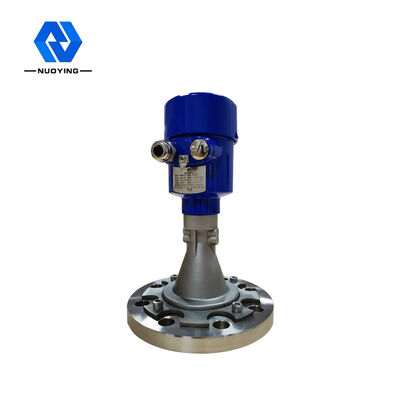

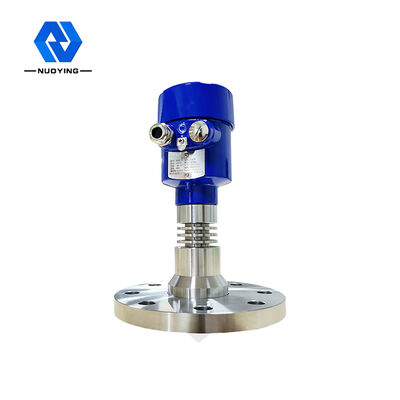

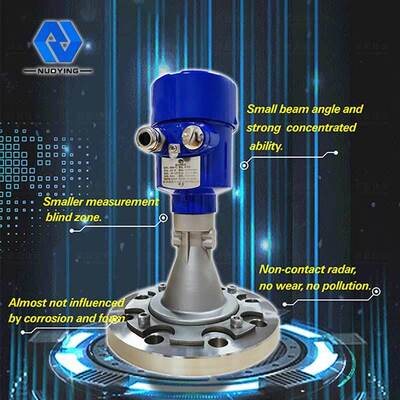

26GHz Radar Level Gauge Related Pictures
