±1mm Accuracy 1.8GHz 4-20mA Guided Wave Radar Level Meter of 30m Range Factory Radar Level Transmitter with CE and SIL
1.8GHz Guided Wave Radar Level Meter Working Principle
The high-frequency microwave pulse emitted by the guide wave radar travels along the detection assembly (steel cable or steel rod). When the measured medium is encountered, the dielectric constant changes, causing reflection, and part of the pulse energy is reflected back. The time interval between the emitted pulse and the reflected pulse is directly proportional to the distance of the measured medium.

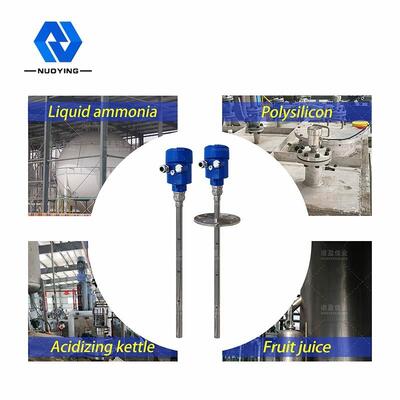

1.8GHz Guided Wave Radar Level Meter Application Fields
1. Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2. Oilfield: Crude oil storage tanks, refined oil storage tanks, settling tanks, sewage tanks, drilling mud tanks, etc.
3. Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
4. Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
5. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
1.8GHz Guided Wave Radar Level Meter Technical Parameters
| Product Model | NYRD703 |
| Typical application |
Powders, solids and liquids with low dielectric constant (such as methanol, kerosene, polypropylene solution, naphtha, etc.) |
| Transmission frequency | 1.8GHz |
| Antenna material | 304, 316 (optional) |

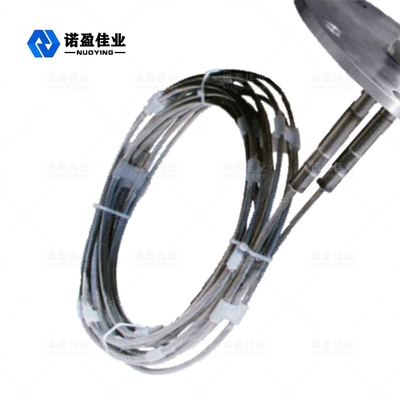

| Antenna type | Double cable antenna |
| Measuring range | 30m |
| Measuring accuracy | ±1mm |
| Power supply | 24VDC (two-wire) |
| Medium temperature | -40~+130℃ |
| Process connection | Flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

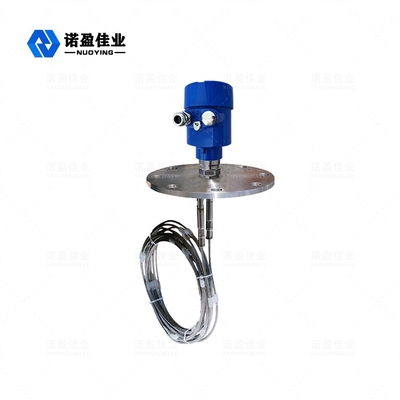

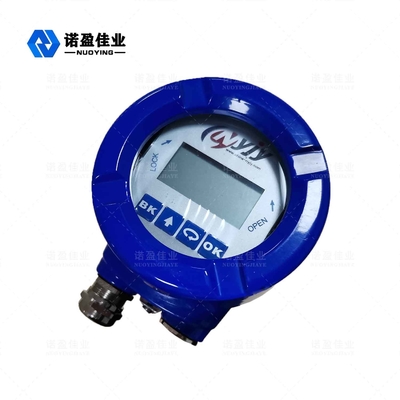

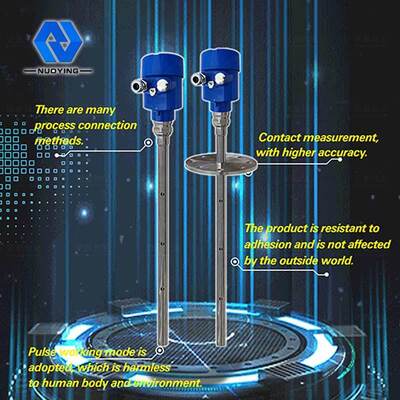

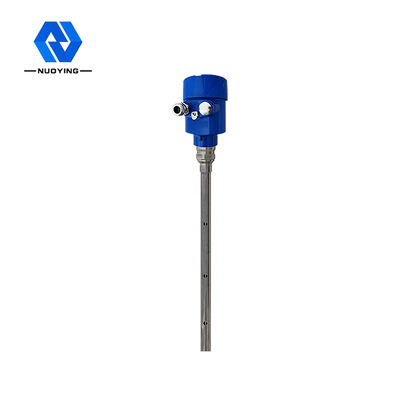

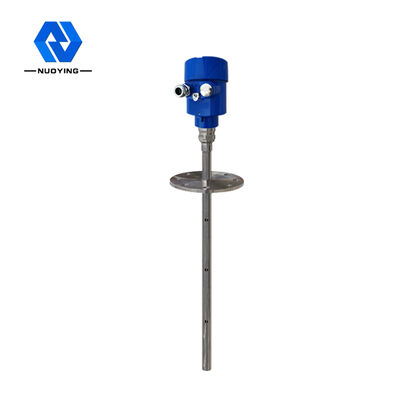

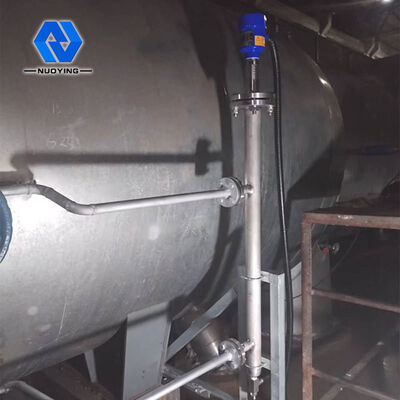

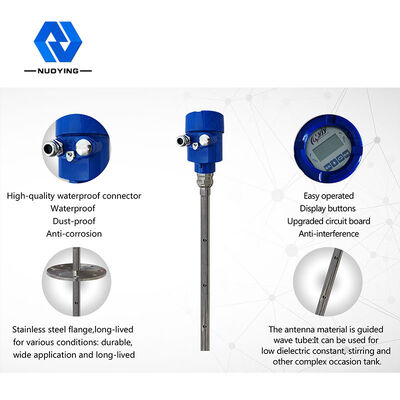

1.8GHz Guided Wave Radar Level Meter Related Pictures
