| Brand Name: | NUOYING |
| Model Number: | NYRD704 |
| MOQ: | 1 pc |
| Price: | $360~$489/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
1.8GHz 6m Guided Wave Radar Level Meter with 4-20mA/HART/Modbus Output and Coaxial Probe for Liquid Level Measurement
1.8GHz 6m Guided Wave Radar Level Meter Design Features
◎ Contact measurement with high accuracy for more accurate results
◎ Not affected by external environments such as medium temperature, adhesion, etc.
◎ Suitable for various complex working conditions and applications, such as high temperature, high pressure, media of low dielectric constant, etc.
◎ Can be installed in various metal and non-metallic containers, without any harm to human body and environment.

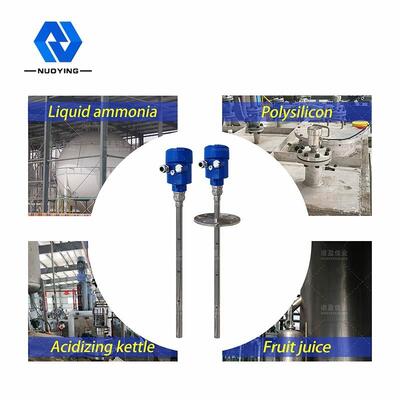

1.8GHz 6m Guided Wave Radar Level Meter Application Fields
1. Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2. Oilfield: Crude oil storage tanks, refined oil storage tanks, settling tanks, sewage tanks, drilling mud tanks, etc.
3. Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
4. Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
5. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
1.8GHz 6m Guided Wave Radar Level Meter Technical Parameters
| Product Model | NYRD704 |
| Typical application |
Liquids, especially for liquids with stirring and low dielectric constant |
| Antenna material | 304 |
| Antenna type | Rod antenna |
| Measuring range | 6m |
| Measuring accuracy | ±1mm |
| Power supply | 24VDC (two-wire, four-wire) |
| Medium temperature | -40~+130℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~0.3MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

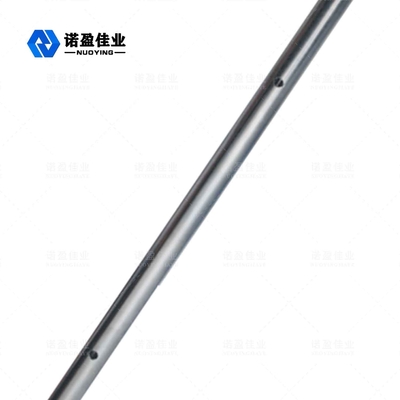

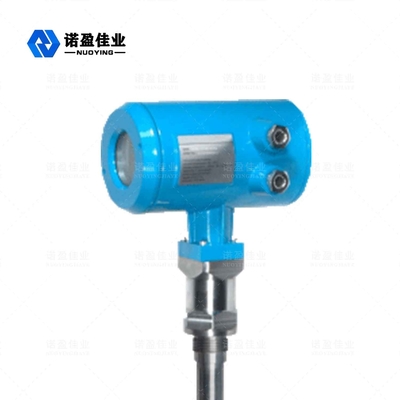

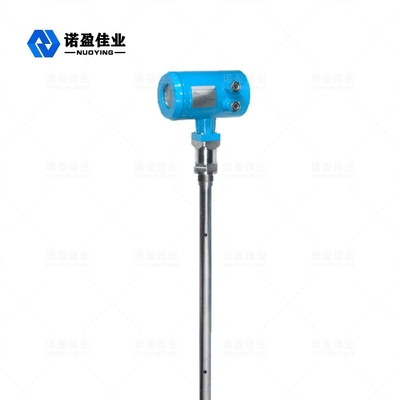

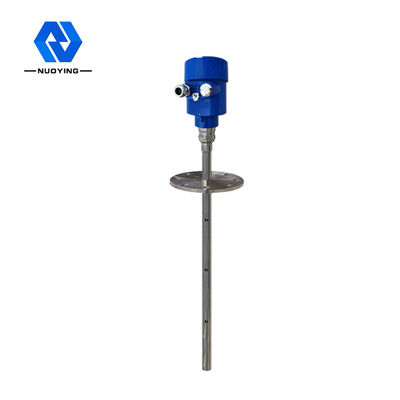

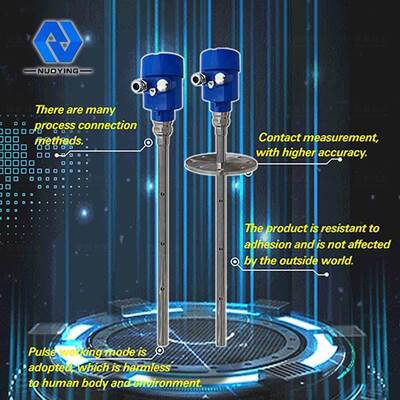

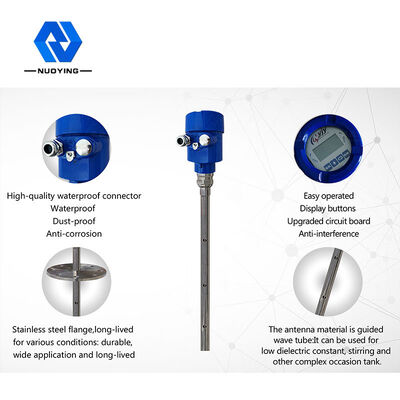

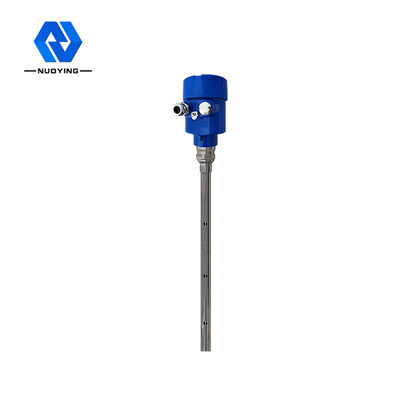

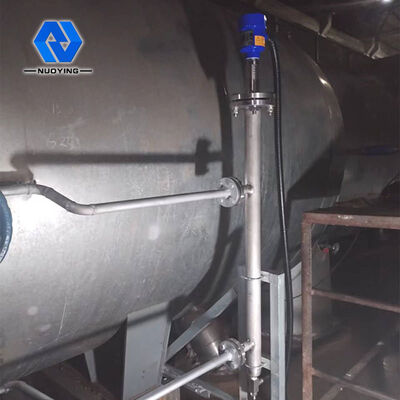

1.8GHz 6m Guided Wave Radar Level Meter Related Pictures
