NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water

NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water

Brand Name: NUOYING
Model Number: NYSP-L866
MOQ: 1pcs
Price: $259 to $299/pcs
Payment Terms: T/T
Supply Ability: 1000pcs per month
Detail Information
Place of Origin:
Xi'an,Shaanxi,China
Certification:
CE, SIL, ATEX
Grade:
Industrial
Warranty:
12 Months
Customized Support:
OEM, ODM
Brand Name:
NUOYING
Applications:
Ultrashort Probe, Which Can Be Used In Various Applications Or As Coal Blocking Switch Probe
Operating Temperature:
-40~+130℃,-184~+260 ℃
Power Supply:
24VDC,220VAC
Bar Material:
304+PTFE (optional)
Procedure Linkage:
Thread, Flange (optional)
Signal Output:
4~20 MA,0~1000Hz,RS485 Modbus RTU
Probe Length:
Cable Length S Can Be Customized According To Request
Process Pressure:
0~2.0MPa
Output Relay:
Double Pole, Double Throw (DPDT) Output,5A,24VDC Or5A,220VAC
Protection/explosion Class:
IP67/ExialCT6 (optional)
Packaging Details:
40*30*30cm
Supply Ability:
1000pcs per month
Product Description

NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water

NYSP-L866 Radio Frequency Admittance Switch

Overview


Product Parameters
NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water 0
Typical application
Various application
Probe material
304, PTFE (optional)
Power supply
24VDC, 220VAC (optional)
Operation temperature
-184~260℃
Joint material
316L, stainless steel, Hastelloy
Working pressure
<2.0MPa
Process connection
Thread, flange (optional)
Products Description

NYSP-L866 RF Admittance Level Switch Design Feature

1.Versatile: Can be used in a variety of conductive and non-conductive media, such as liquids, viscous materials, particles, powders, and fly ash.
2.Anti-adhesive: The patented anti-adhesive circuitry eliminates false signals caused by material adhesion.
3.Detachable probe: There is no cable connection between the controller and the probe, so the controller can be removed and replaced at any time without affecting the incoming or outgoing material.
4.High and low temperature resistance: Suitable for working environment from -184℃ to 280℃, and ceramic probe for higher temperature is also available;
5.Output form: Double-knife double-throw relay signal output, while there is a status light to show the output status, and there is a delay function from 0 to 30 seconds.
6.Non-intelligent diagnosis: After power on, the instrument circuit automatically detects whether the working status is normal.

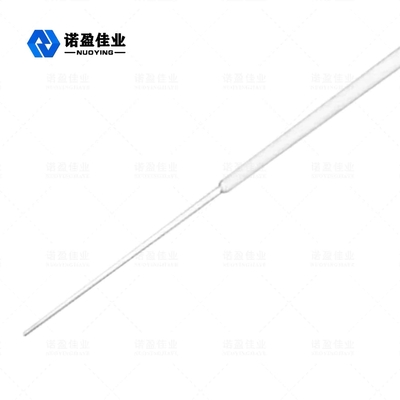

NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water 1

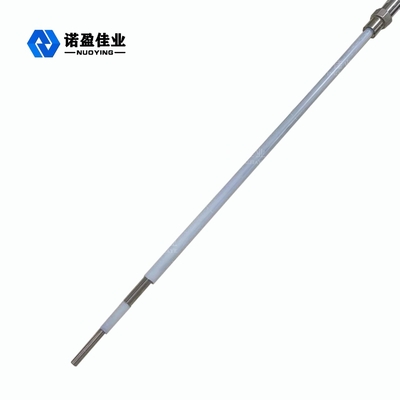

NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water 2

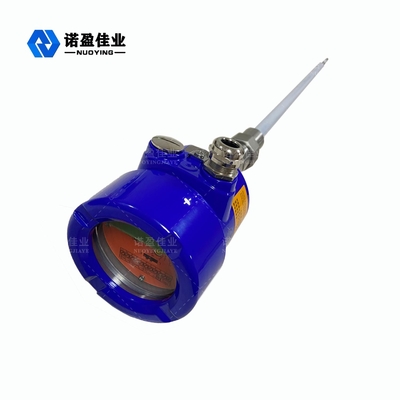

NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water 3

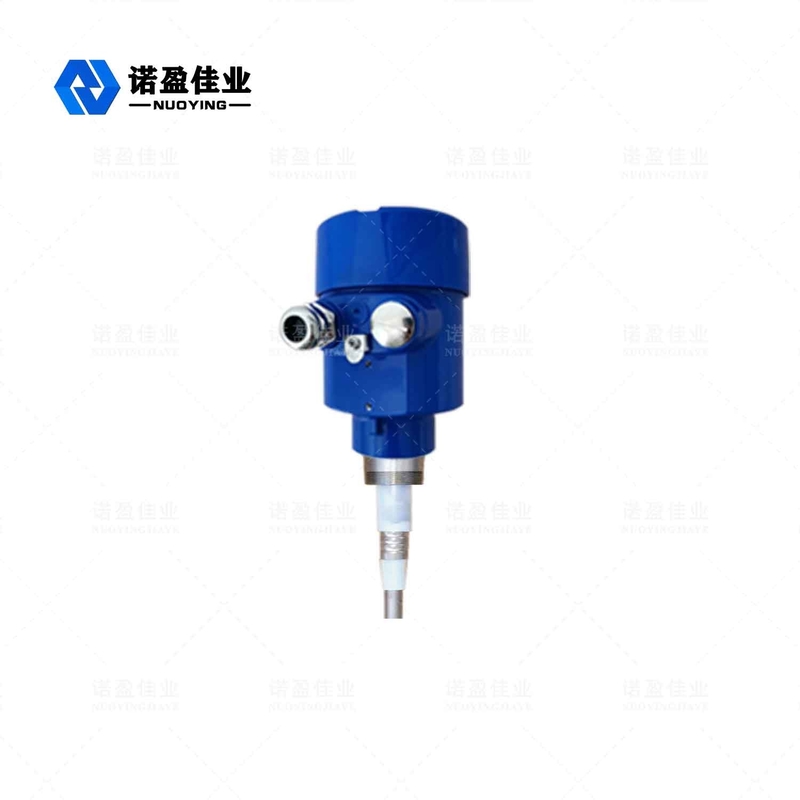

NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water 4
NUOYING NYSP-L866 RF Admittance Liquid Level Switch for Water 5
