200mm(length Can Be Customized According Tosite Conditions)
Process Pressure:
-0.1~1.0MPa
Protection/explosion Class:
IP67/ExialCT6 (optional)
Dielectric Constant:
≥1.6
Packaging Details:
40*30*30cm
Supply Ability:
1000pcs per month
Product Description

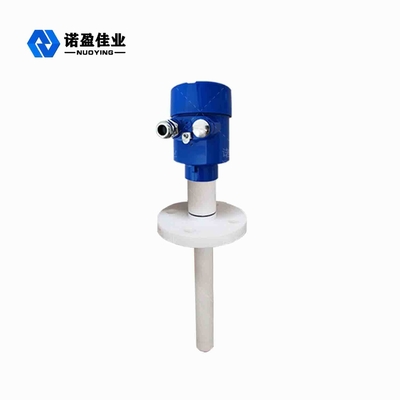

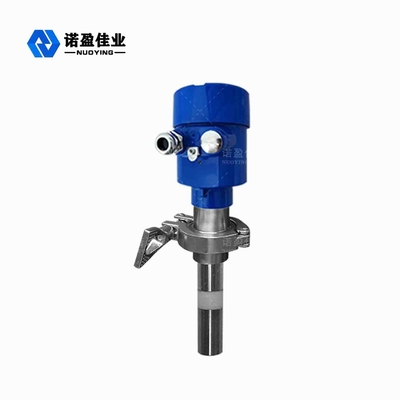

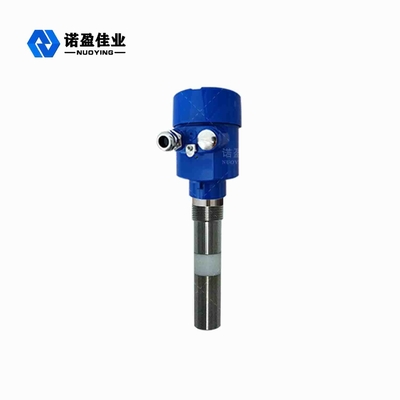

Nuoying NYDR RF Capacitive liquid level Switch
NYDR Product Details
Overview
Overview
Product Parameters
Typical application
Solid powder, particle measurement
Measurement Range
120m
Power supply
24VDC, 220VAC(optional)
Environment temperature
-40~+80℃
Process temperature
-40~+1200℃
Process pressure
-0.1~2.5MPa
Process connection
Thread (optional)
Products Description
NYDR RF Capacitor Switch Working Principle
NYDR capacitance level switch is a highly intelligent level measurement product, which overcomes the inconvenience caused to customers by low alarm accuracy and complicated adjustment steps in previous measurement methods. The RF capacitance switch is widely used in chemical, metallurgical, petroleum, mechanical, food and foodstuff industries.
NYDR capacitance level switch adopts advanced digital intelligent compensation technology to convert the level change quantity in the vessel into capacitance change quantity. Inside the probe electrode There are two pole plates, the change of medium changes the dielectric constant between the electrodes, so as to get the change of electric capacity, and the electric capacity is converted into pulse digital signal by electronic plug-in, and the design of alarm point and the realization of alarm action are done by microprocessor.
