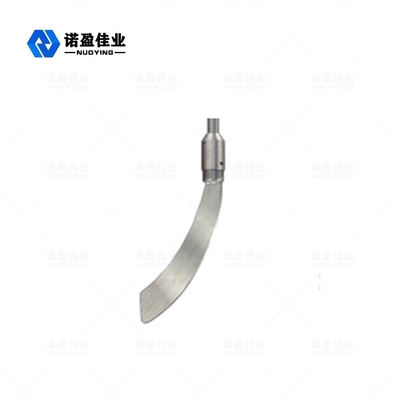

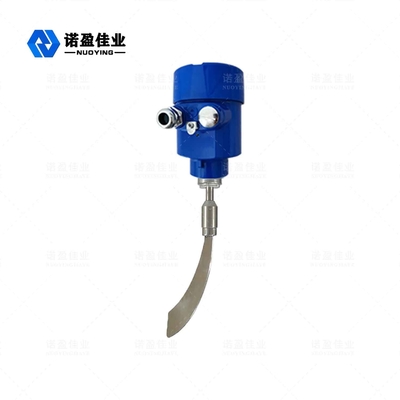

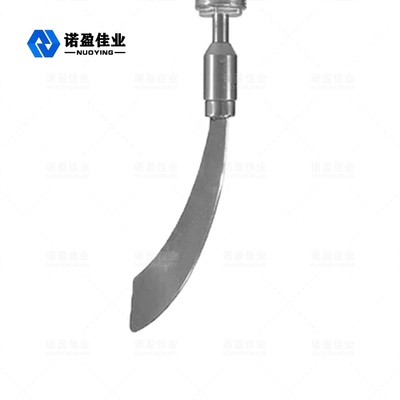

NYZX-C Material position indicator level sensor with rotary paddle and flange mount for silos

Name: NYZX-C Material position indicator level sensor with rotary paddle and flange mount for silos
Brand: Xi'an Dehou Electronic Technology Co., Ltd.
SKU: NYZX-C
Price: 64.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYZX-C
MOQ:	1pcs
Price:	$40 to $89/pcs
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,Shaanxi,China

Certification:

CE, SIL, ATEX

Grade:

Industrial

Warranty:

12 Months

Customized Support:

OEM, ODM

Brand Name:

NUOYING

Applications:

Powder And Small Particle Level Control

Process Temperature:

-40~+80℃

Power Supply:

24VDC、220VAC

Procedure Linkage:

Thread, Flange (optional)

Rod Material:

304

Protection/explosion Class:

IP67/ExialCT6 (optional)

Dielectric Constant:

1500V 1min

Insulation Resistance:

≥100MΩ

Rod Length:

200mm

Electrocution Capacity:

250V 8A (SPDT Single Blade Double Throw)

Packaging Details:

40*30*30cm

Supply Ability:

1000pcs per month

Product Description

Flange Mount Rotary Paddle Level Switch for Silos with Material Height Detection

NYZX Product Details

Products Description

Rotary Paddle Level Switch Working Principle

NYZX series anti rotation material level switch uses a permanent magnet motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box. The detection device outputs a switch signal outward, and cuts off the power supply to stop the blade from rotating. When the material level drops, the resistance of the blade disappears, and the detection device recovers to the original state by relying on the tension of the spring. The spring tension is adjusted according to the specific gravity of different materials. When the specific gravity is large, the spring tension is adjusted to the strong or the strongest, otherwise it is adjusted to the weak or the weakest.

Application:NYZX series anti rotation material level switch is a field control device used to detect the material level height of solid materials (powders and particles), which is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries

Product Parameters

Typical application	Powder, small particle level control
product model	NYZX
Rod material	304
Rod length	200mm
Power Supply	24VDC,220VAC
Process temperature	-40~+80℃
Process pressure	Normal
procedure linkage	thread, flange (optional)
Protection Grade	IP67
Medium density	≥0.4g/cm3

Details Images

Various application

Cooperative customers

Product certificate
