| Brand Name: | NUOYING |
| Model Number: | NYSP-Z20 |
| MOQ: | 1 pc |
| Price: | $330~$558/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

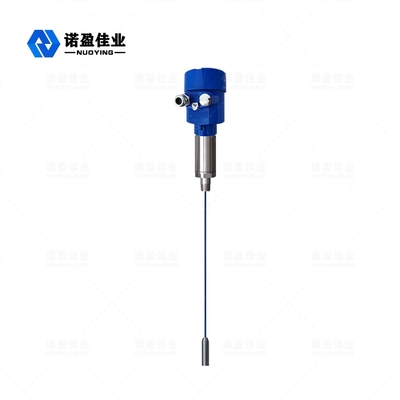

NYSP-Z20 Radio Frequency Admittance Level Meter for Deep Well with Flexible Cable 304 Probe and Very Large Range
NYSP-Z20 Radio Frequency Admittance Level Meter Working Principle
RF conductivity measurement technology is a level measurement technology with unique advantages.Although the concept is similar to the general capacitance measurement technique, the RF conductivity technique incorporates a driver shield circuit and a chopper circuit in the electronic unit, so impedance and capacitance resistance can be measured separately.The impedance and reactance of any pendant are calculated by the laws of physics to be equal in magnitude, so the effect of the pendant can be measured and eliminated from the total output by phase shifting of the oscillator circuit.
The probe of the radio frequency conductivity liquid level meter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe.The Driving-Shield end of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the measurement.

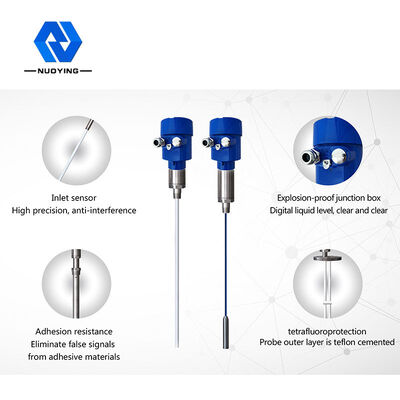

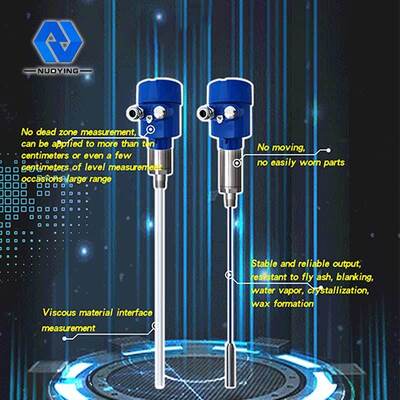

NYSP-Z20 Radio Frequency Admittance Level Meter Design Features
1. Maximum measurement range up to even hundreds of meters
2. A great advantage of viscous material interface measurement
3. Stable and reliable output , resistant to the influence of fly ash, blanking, water vapor, crystallization and waxing
4. Maintenance-free: no moving or easy-to-wear parts, no need for frequent cleaning, maintenance and debugging
NYSP-Z20 Radio Frequency Admittance Level Meter Technical Parameters
| Product Model | NYSP-Z20 |
| Typical application |
Deep wells |
| Probe type | Soft cable 304 (optional) |
| Measuring range | 3m, 20m, customized |
| Power supply | 24VDC |
| Medium temperature | -40~+150℃ |
| Process connection |
3/4" BSPT thread (standard) flange mounting (optional) |
| Process pressure | -0.1~1.6MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

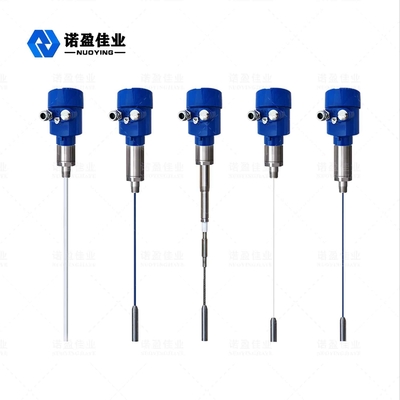

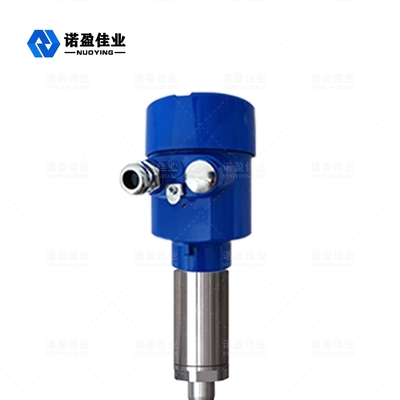

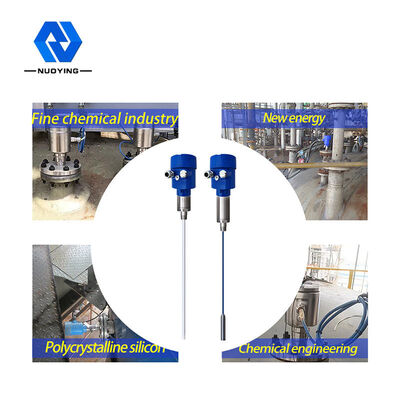

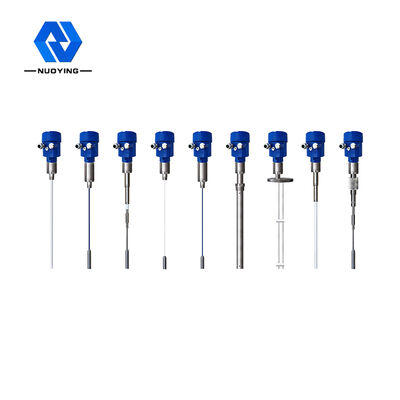

NYSP-Z20 Radio Frequency Admittance Level Meter Related Pictures
