| Brand Name: | NUOYING |
| Model Number: | NYSP-Z22 |
| MOQ: | 1 pc |
| Price: | $136~$530/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYSP-Z22 PTFE Type RF Admittance Level Transmitter for Highly Crossive Liquids with High Sensitivity
NYSP-Z22 PTFE Type RF Admittance Level Transmitter Design Features
1. Unique Driving-Shield circuit design to improve the anti-hanging ability
2. Power supply working range:13~35V DC
3. Probe process temperature: -100 ℃~800 ℃
4. No dead zone measurement (can be applied to even a few centimeters of material level measurement occasions )
NYSP-Z22 PTFE Type RF Admittance Level Transmitter Application Fields
1. Chemical industry: crude oil distillation tower, reaction tank, ammonia tank, separator, asphalt storage tank, etc.
2. Food: juice factory, dairy factory, tomato sauce storage tank, brewery storage tank, etc.
3. Pharmaceutical: Traditional Chinese medicine storage tank, separator, fermentation tank, etc.
4. Water treatment: reservoir, sewage tank, water treatment tank, sedimentation tank, deep well, drinking water network, etc.
5. Others: environmental protection, shipbuilding and other industries.
NYSP-Z22 PTFE Type RF Admittance Level Transmitter Technical Parameters
| Product Model | NYSP-Z22 |
| Typical application |
Highly corrosive liquids |
| Probe type | PTFE |
| Measuring range | 3m, 20m |
| Power supply | 24VDC |
| Medium temperature | -40~+150℃ |
| Process connection |
Flange installation (optional, DN80 flange recommended) |
| Process pressure | -0.1~2.5MPa |
| Protection class | IP67 blast |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

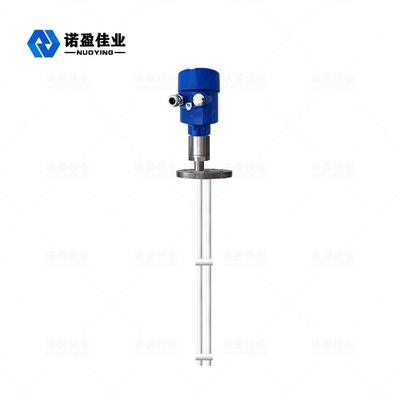

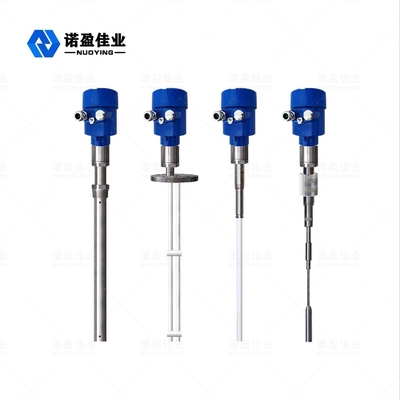

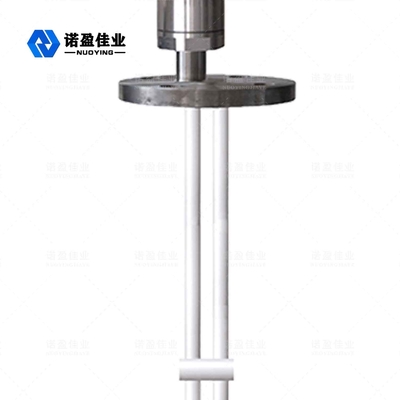

NYSP-Z22 PTFE Type RF Admittance Level Transmitter Related Pictures
