| Brand Name: | NUOYING |
| Model Number: | NYCZ500 |
| MOQ: | 1 pc |
| Price: | $560~$1200/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYCZ500 Cable Type Magnetostrictive Level Gauge for Level Measurement of Various Liquids with 25m Range
NYCZ500 Cable Type Magnetostrictive Level Gauge Working Principle
The product mainly consists of a measuring rod, an electronic chamber and a non-contact floating ball sleeved on the measuring rod. Magnetostrictive wire (waveguide wire) is installed in the measuring rod. The measuring rod is made of non-magnetic stainless steel tube, which protects the waveguide wire very well.
When the magnetostrictive liquid level meter is working, the pulse generator in the electronic chamber sends out a starting pulse. When this starting pulse is transmitted in the waveguide wire, it generates a rotating magnetic field moving in the direction of the waveguide wire. When this magnetic field meets the permanent magnetic field in the float ball, it generates a magnetostrictive stretching effect, causing the waveguide wire to twist and generate a constant speed mechanical wave. This mechanical wave propagates in two directions. The mechanical wave reaching the end of the measuring rod is absorbed by the damper. The mechanical wave transmitted back to the electronic chamber is sensed by the energy pickup mechanism installed in the electronic chamber and converted into the corresponding current pulse. The energy pickup mechanism calculates the time difference between the two pulses to accurately measure the height of the measured liquid level.
NYCZ500 Cable Type Magnetostrictive Level Gauge Design Features
◎ More extensive applicability, with multiple probe forms, multiple process connection forms, and multiple production materials, which can be customized;
◎ Strong reliability: Since the magnetostrictive liquid level meter adopts the waveguide principle, there is no mechanical movable part, so there is no friction and wear. The whole converter is enclosed in a stainless steel tube, which is non-contact with the measuring medium. The sensor works reliably and has a long service life.
◎ Good safety: The magnetostrictive liquid level meter has high explosion-proof performance, is intrinsically safe and safe to use, and is especially suitable for the measurement of chemical raw materials and flammable liquids. It is unnecessary to open the tank cover during measurement to avoid the insecurity of manual measurement.
NYCZ500 Cable Type Magnetostrictive Level Gauge Technical Parameters
| Model | NYCZ500 |
| Typical application | Liquid level measurement, liquid-liquid interface measurement |
| Antenna form | Cable type |
| Antenna Material | 304, 316L (optional) |
| Measuring range | 0～ 25m |
| Measurement accuracy | ±0.5mm |
| Measuring angle | 10° |
| Power supply | 24VDC (2 wire, 4 wire), 220VAC |
| Process temperature | -40～+200℃ |
| Process pressure | -0.1~10.0MPa |
| Process connection | Thread, flange, bracket (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus |
| Working current | 4...20mA |
| Load characteristic | Maximum load resistance 600Ω for current output; maximum load resistance 2mA for voltage output |
| Response time | 0.2-5ms |
| Protection level | IP65, IP67, IP68(optional) |
| Explosion-proof grade | ExiaⅡCT6 Ga; ExiaⅡCT6 Gb |
Note: Products can be customized according to the specific requirements of users.

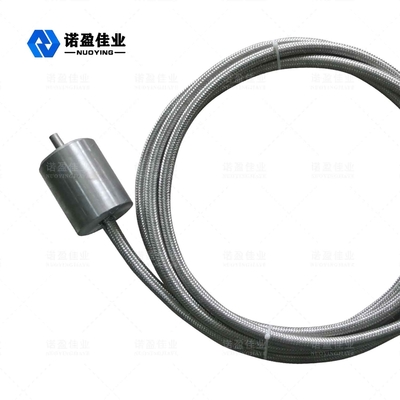

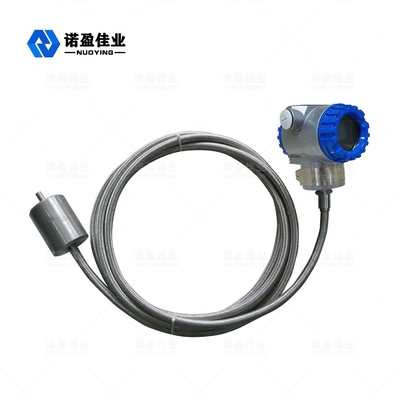

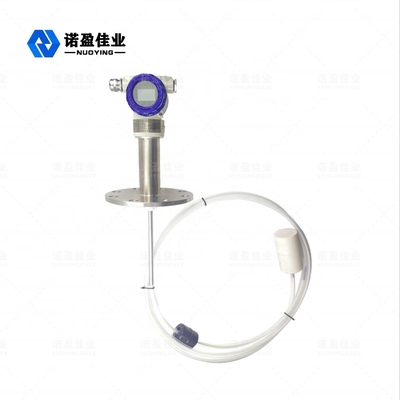

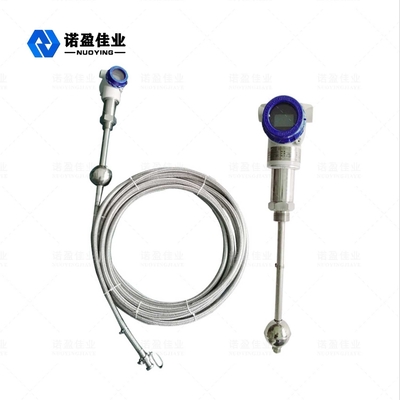

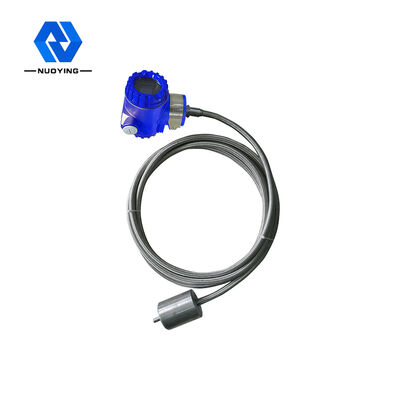

NYCZ500 Cable Type Magnetostrictive Level Gauge Related Pictures
