NYKC3 Externally Attached Ultrasonic Liquid Level Switch for Various Liquids with High Quality and Low Price
NYKC3 Externally Attached Ultrasonic Liquid Level Switch Product Description
The measurement principle of the NYKC3 intelligent external level switch is based on the different signal attenuation characteristics of ultrasonic in the presence and absence of liquid for non-intervention type fixed-point liquid level detection, the instrument is installed in the outer wall of the closed body to achieve the measurement and alarm of fixed-point liquid level. Installation does not require a hole in the tank wall, the instrument does not touch either the liquid medium in the container or the gaseous medium in the container. Therefore, the installation is simple, fast, very safe and reliable in use, no tank is opened during maintenance, no fire is started, and normal production is not affected.
NYKC3 Externally Attached Ultrasonic Liquid Level Switch Design Features
◎ Dual processing operation, the performance is more stable and reliable.
◎ Ultrasonic high frequency technology, strong anti-interference ability.
◎ Self-diagnosis function, fault code display and output, easy maintenance.
NYKC3 Externally Attached Ultrasonic Liquid Level Switch Technical Parameters
| Typical application | Explosive gas environments other than coal mines. |
| Measurable media | Pure liquid, emulsion liquid, suspension liquid |
| Shell material | Cast aluminum |
| Probe connection | Magnet adsorption, gluing, tie hoops, etc |
| Measuring point | Two points at most |
| Power supply | DC 24V |
| Signal output | SPDT, dry contact |
| Environment temperature | -40 ~ +60℃ |
| Environmental humidity | 15% ~ 100%RH |
| Sensor temperature | -40℃ ~ +100℃ |
| Container material | Steel, stainless steel, glass, non-foaming plastic and other dense materials |
| Contact capacity | 250VAC/10A,30VDC/10A,60VDC/0.5A |
| Measurable wall thickness | 6-50mm |
| Interface specifications | M20×1.5 |
| Protection level | IP65,IP67,IP68(optional) |
| Explosion-proof grade | Exd II CT6, Exd mb II CT6 |
Note: Products can be customized according to the specific requirements of users.

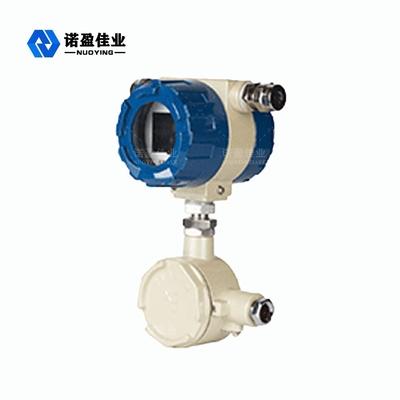

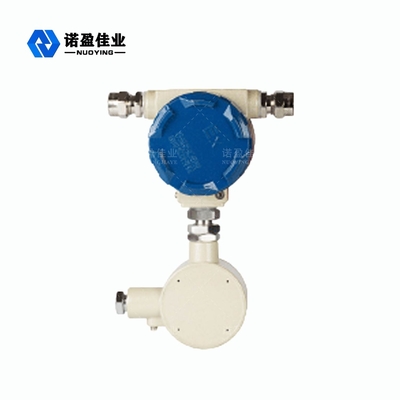

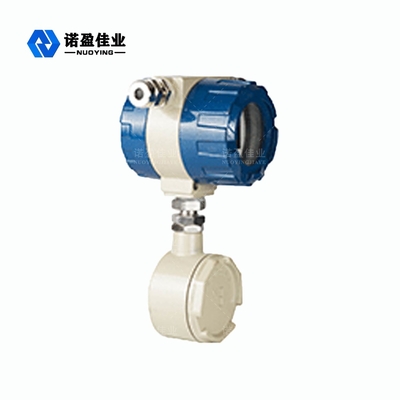

NYKC3 Externally Attached Ultrasonic Liquid Level Switch Related Pictures
