| Brand Name: | NUOYING |
| Model Number: | NYKC3 |
| MOQ: | 1 pc |
| Price: | $105~$132/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYKC3 Cast Aluminum External Ultrasonic Level Switch to Measure Liquid Level with SPDT and Dry Contact Output
NYKC3 Cast Aluminum External Ultrasonic Level Switch Design Features
1.Dual processing operation, more stable and reliable performance.
2.Ultrasonic high frequency technology, strong anti-interference ability.
3.Self-diagnostic function, fault code display and output, easy maintenance.
4.With calibration probe, realize self-calibration and reduce the influence of ambient temperature of probe signal.
5.Single probe measurement, two-point high and low level control.
6.Infrared menu debugging.
NYKC3 Cast Aluminum External Ultrasonic Level Switch Technical Parameters
| Typical application | Explosive gas environments other than coal mines. |
| Measurable media | Pure liquid, emulsion liquid, suspension liquid |
| Shell material | Cast aluminum |
| Probe connection | Magnet adsorption, gluing, tie hoops, etc |
| Measuring point | Two points at most |
| Power supply | DC 24V |
| Signal output | SPDT, dry contact |
| Environment temperature | -40 ~ +60℃ |
| Environmental humidity | 15% ~ 100%RH |
| Sensor temperature | -40℃ ~ +100℃ |
| Container material | Steel, stainless steel, glass, non-foaming plastic and other dense materials |
| Contact capacity | 250VAC/10A,30VDC/10A,60VDC/0.5A |
| Measurable wall thickness | 6-50mm |
| Interface specifications | M20×1.5 |
| Protection level | IP65,IP67,IP68(optional) |
| Explosion-proof grade | Exd II CT6, Exd mb II CT6 |
Note: Products can be customized according to the specific requirements of users.

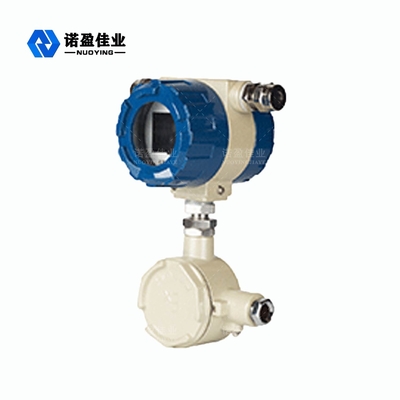

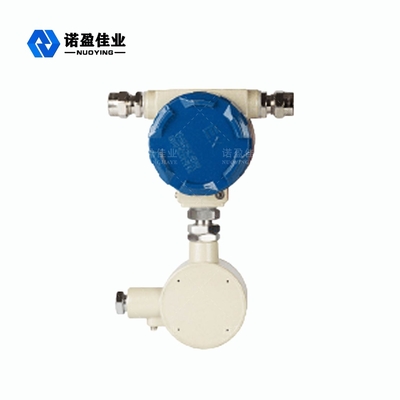

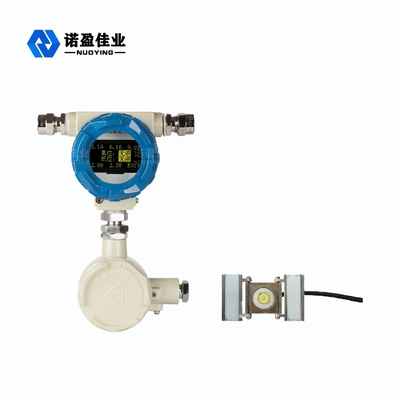

NYKC3 Cast Aluminum External Ultrasonic Level Switch Related Pictures
