| Brand Name: | NUOYING |
| Model Number: | NYWBUK |
| MOQ: | 1 pc |
| Price: | $219~$340/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYWBUK 24VDC Microwave Level Switch 120m Non-Contact Liquid Level Alarm
NYWBUK 24VDC Microwave Level Switch Working Principle
NYBUK series microwave leve switch is a solid level switch desiened with microwave extremely narrow pulse detecton principle, which is designed by microwave pair transmission and reception. The microwave level switch is a pair of complete sets of instruments. One end is the transmitting end, which is responsible for the transmission of microwave signals; the other end is the receiving end, which is responsible for the collection and output of microwave signals. The instruments are instaled in pairs at the position to be monitored. When there is no material blockage at the monitoring position, the receiving end outputs a "no material" signal ; When material blocking occurs at the monitoring position, the receiving end outputs "blocking material" signal. The state of the output signal can be set to high alarm and low alarm on the spot.
NYWBUK 24VDC Microwave Level SwitchTechnical Parameters
| Typical application | Liquids, dust, solids |
| Model | NYWBUK |
| Material | SS304/316L |
| Measuring range | 120m |
| Power supply | DC 24V |
| Ambient temperature | -40 ~ +80℃ |
| Process temperature | -40 ~ +1200℃ |
| Process pressure | -0.1~ 2.5MPa |
| Process connection | Thread, flange (optional) |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 Ga (optional) |
Note: Products can be customized according to the specific requirements of users.

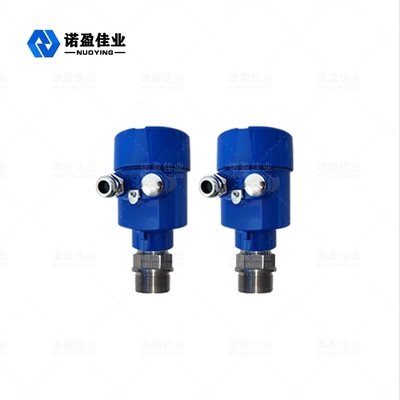

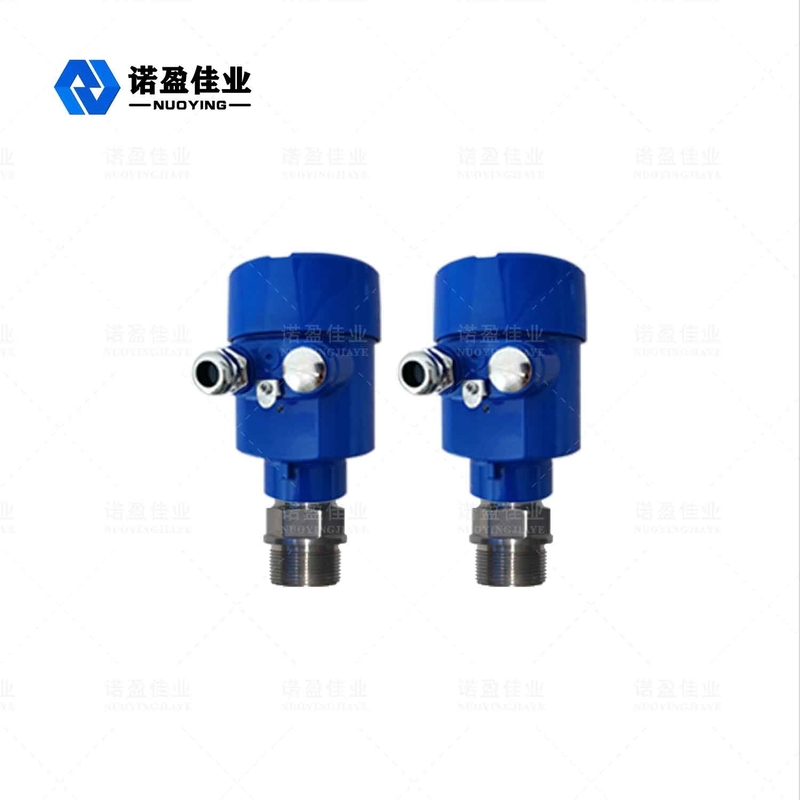

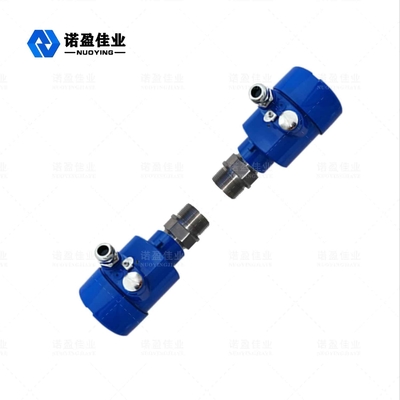

NYWBUK 24VDC Microwave Level Switch Related Pictures
