NYWBUK Non-Contact Liquid Level Alarm 24VDC Microwave Level Seneor for Liquids and Solids
NYWBUK Non-Contact Liquid Level Alarm Application Fields
1. Flow/Stop Detection
2. Slant chute blockage detection
3. Low level detection
4. High level detection
5. Conveyor item detection
6. Rail/Truck overload detection
7. Crane collision detection
8. Gas or viscous material blockage in feed pipe
9. With and without material level detection
NYWBUK Non-Contact Liquid Level Alarm Technical Parameters
| Typical application | Liquids, dust, solids |
| Model | NYWBUK |
| Material | SS304/316L |
| Measuring range | 120m |
| Power supply | DC 24V |
| Ambient temperature | -40 ~ +80℃ |
| Process temperature | -40 ~ +1200℃ |
| Process pressure | -0.1~ 2.5MPa |
| Process connection | Thread, flange (optional) |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 Ga (optional) |
Note: Products can be customized according to the specific requirements of users.

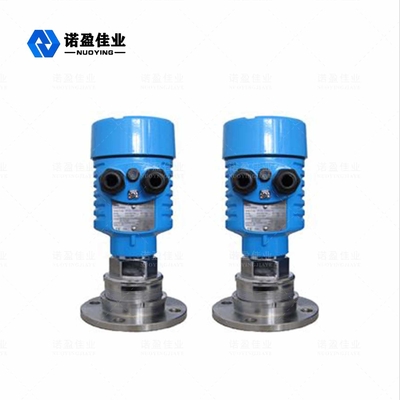

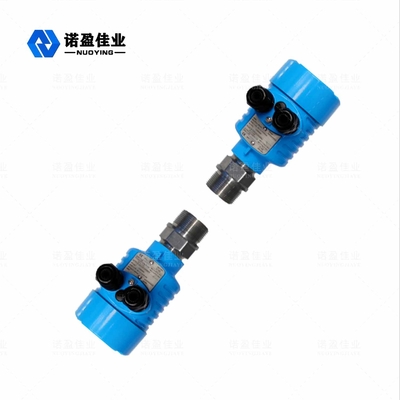

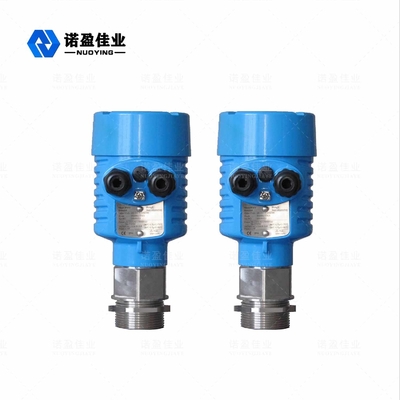

NYWBUK Non-Contact Liquid Level Alarm Related Pictures
