Non-contact Microwave Level Switch Paired Microwave Level Sensor Manufacturer

Name: Non-contact Microwave Level Switch Paired Microwave Level Sensor Manufacturer
Brand: Xi'an Dehou Electronic Technology Co., Ltd.
SKU: NYWBUK
Price: 284.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYWBUK
MOQ:	1 pc
Price:	$219~$350/pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Certification:

CE, ATEX, SIL

Model:

NYWBUK

Power Supply:

DC 24V

Material:

SS304/316L

Protection Class:

IP67

Process Connection:

Thread, Flange (optional)

Process Pressure:

-0.1~ 2.5MPa

Measuring Range:

120m

Typical Application:

Liquids, Dust, Solids

Packaging Details:

Carton, 40cm×30cm×30cm

Supply Ability:

1000 pcs per month

Product Description

NYWBUK Thread-Connection 2.5MPa Microwave Level Switch Stainless Steel Paired Microwave Level Sensor Manufacturer

NYWBUK Thread-Connection 2.5MPa Microwave Level Switch Technical Parameters

Typical application	Liquids, dust, solids
Model	NYWBUK
Material	SS304/316L
Measuring range	120m
Power supply	DC 24V
Ambient temperature	-40 ~ +80℃
Process temperature	-40 ~ +1200℃
Process pressure	-0.1~ 2.5MPa
Process connection	Thread, flange (optional)
Protection class	IP67
Explosion-proof grade	Exia II CT6 Ga (optional)

Note: Products can be customized according to the specific requirements of users.

NYWBUK Thread-Connection 2.5MPa Microwave Level Switch Installation Requirements

Do not damage the insulation of the probe during installation. Avoid mechanical wear of probe and installation interface, container wall, material etc.
The instrument guard line pipe must not have the stagnant water, otherwise will endanger the instrument electronic unit;
As shown in figure 1, due to the directionality of microwave emissions, the transmitter and receiver installed in the same group must be in the same direction, or reverse 180 °. When the position is 90 °, the receiving end will not receive a valid signal.
See figure 2. When multiple sets of microwave level switches need to be installed in adjacent locations, each adjacent set of instruments should be staggered 90 °. And keep the center distance above 500mm.
See figure 3 fbr a typical installation diagram.
Microwave level switches should be installed in pairs, one is the transmitter and the other is the receiver. The transmitter is responsible for transmitting the microwave signal and the receiving side is responsible for detecting the microwave signal and converting it to the level.

NYWBUK Thread-Connection 2.5MPa Microwave Level Switch Related Pictures

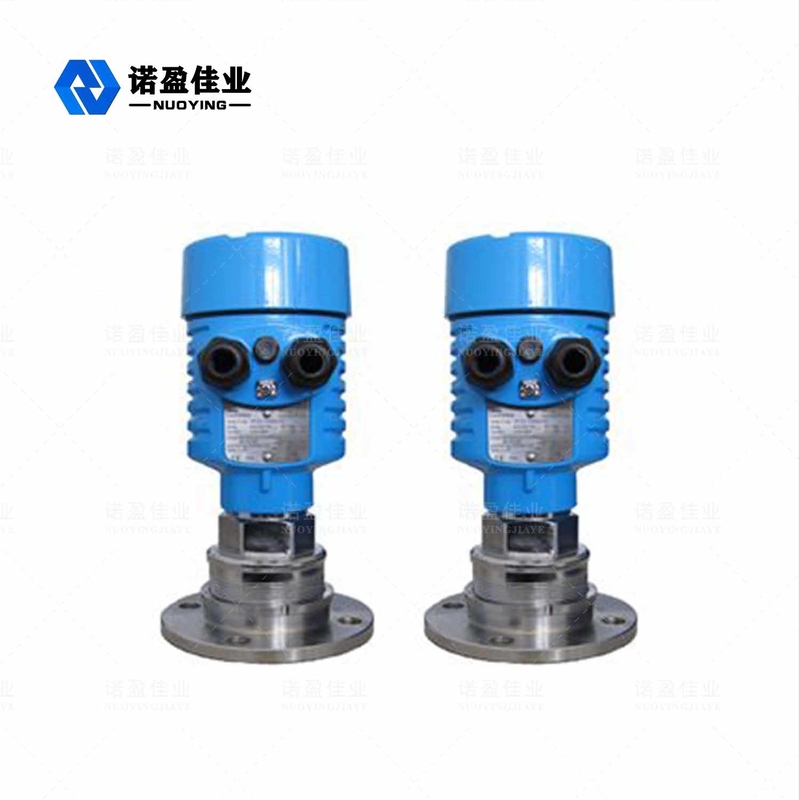

Non-contact Microwave Level Switch Paired Microwave Level Sensor Manufacturer 0

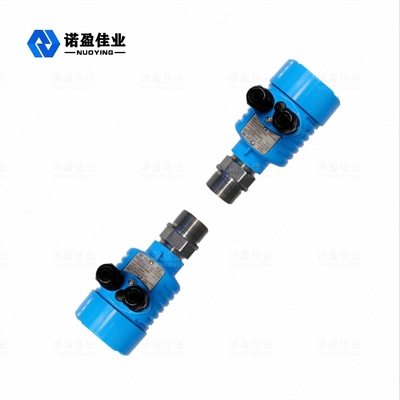

Non-contact Microwave Level Switch Paired Microwave Level Sensor Manufacturer 1
