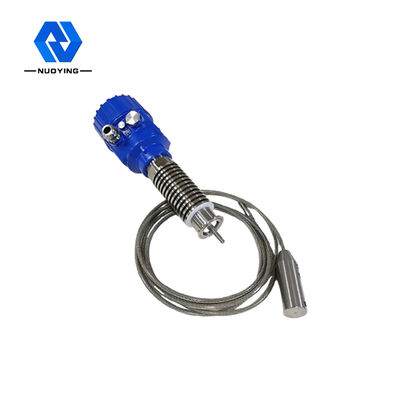

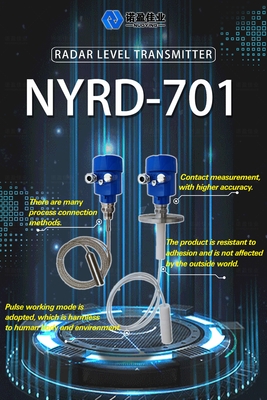

Wave Radar Level Meter For Strong Corrosion Liquid
NYRD-701 Radar Level Transmitter Overview
Working principle of 30m Contactable Guided Wave Radar Level Meter For Strong Corrosion Liquid NYRD 701
The high-frequency microwave pulse emitted by the guided wave radar propagates along the detection component (steel cable or steel rod), and encounters the measured medium. Due to the sudden change of the dielectric constant, it causes reflection, and a part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
Input process
Guided wave radar is a measuring instrument based on the principle of time travel. The radar wave runs at the speed of light, and the running time can be converted into object level signal by electronic components. The probe emits high frequency pulse and propagates along the cable or rod probe.
Output process
By entering empty tank height E(= zero), full tank height F(= full range) and some application parameters, the application parameters will automatically adapt the meter to the measuring environment, corresponding to 4-20mA output.

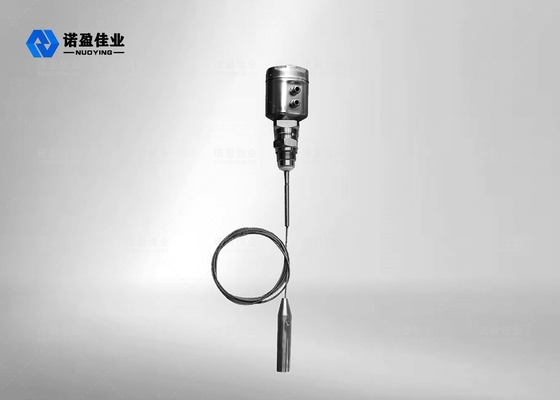

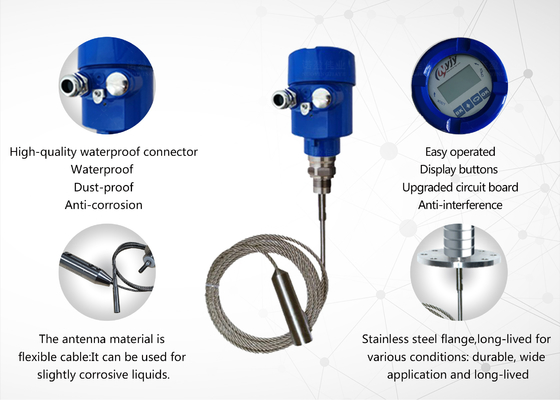

Design features of 30m Contactable Guided Wave Radar Level Meter For Strong Corrosion Liquid NYRD 701
Guided wave radar object level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, contact measurement, high measurement accuracy, more accurate measurement. At the same time, guided wave radar is not affected by external environment such as medium temperature and adhesion.
The 70X series guided wave radar object level meter is suitable for various complex working conditions and applications due to the various process connection modes and detection module types. Such as: high temperature, high pressure and low dielectric constant medium.
Pulse working mode, low emission power, can be installed in a variety of metal, non-metal containers, no harm to human body and the environment.
Technical parameterof 30m Contactable Guided Wave Radar Level Meter For Strong Corrosion Liquid NYRD 701

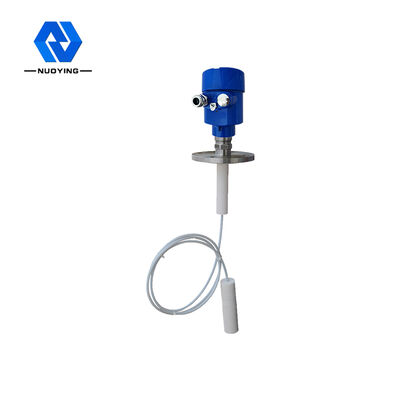

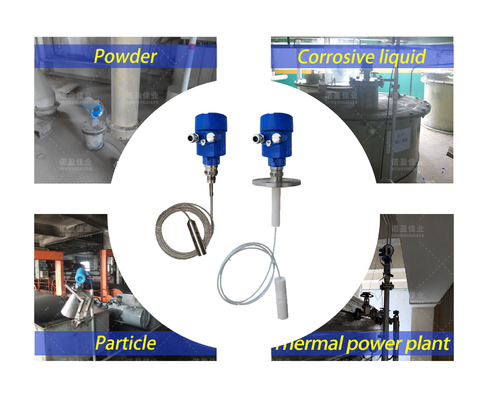

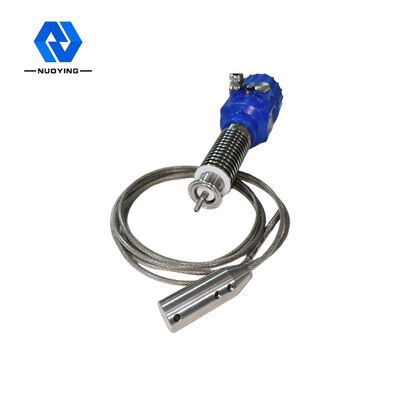

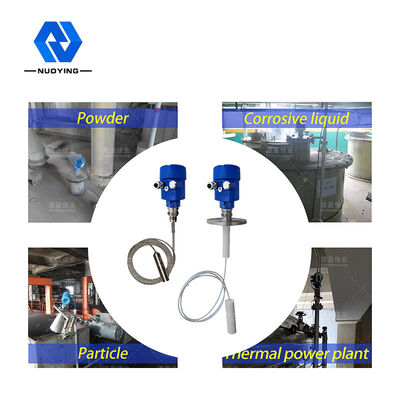

Typical application
Liquid (strong corrosion, low dielectric constant, adhesion, high temperature and high pressure, Built-in heating Coil, ladder, floating plate and other complex occasions)
Dust (fly ash, limestone powder, cement powder, concrete and other media)
Solid (small particles, grain, gravel, sand and other media)
Product model
NYRD701,NYRD702, NYRD703,NYRD704,NYRD705

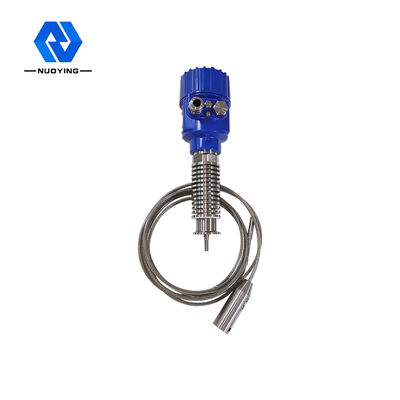

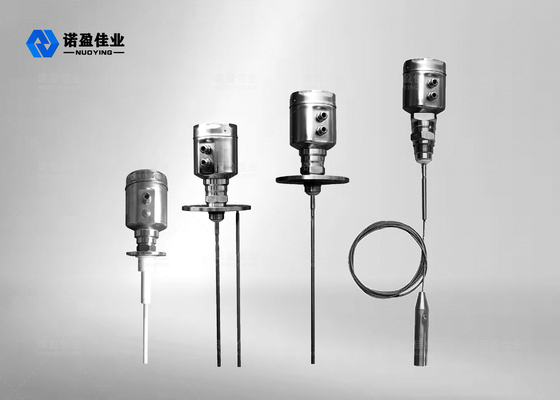

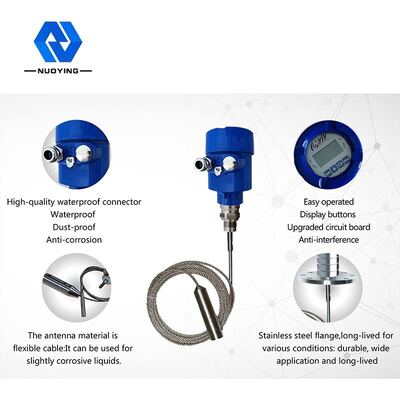

Antenna form
Cable type, rod type, double cable type, double rod type, wave guide tube type
Antenna material
PTFE, 304, 316
Echo sampling
55 times /s
Measuring range
6m, 30 m
Measurement accuracy
0.05% ~ 0.1% F.S
Power supply
24VDC(two wire, four wire), 220VAC
Signal output
4... 20mA/HART/RS485/Modbus...
Process temperature
-40~ +130°C, -40~ +250 °C,-40~ +500 °C
Process pressure
-0.1~2.0MPa,-0.1~4.0MPa
Process connection
Thread, bracket, flange, clamp (optional)
Electrical interface
M20×1.5 , ½ " NPT
Protection grade
IP 65, IP 67, IP 68 (optional)
Explosion-proof grade
ExiaIICT6Ga, ExdIICT6Gb(see certificate for details)
