| Brand Name: | NUOYING |
| Model Number: | NYYCUK-A |
| MOQ: | 1 pc |
| Price: | $38~$50/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Factory NYYCUK-A Tuning Fork Level Switch With 44mm Fork Body IP66 Tuning Fork Liquid Level Sensor
Factory NYYCUK-A Tuning Fork Level Switch Working Principle
NYYCUK tuning fork liquid level switch is a universal liquid level limit switch. The tuning fork vibrates under the stimulation of piezoelectric crystals. When the fork is immersed in liquid or solid, the vibration frequency will change. The frequency change is detected by an electronic circuit with switching value. The tuning fork liquid level limit switch is not affected by dielectric constant, turbulence, agitation, bubble, vibration and other factors, and has no moving parts, so it does not need maintenance and adjustment. It is an ideal choice for liquid level switch under complex working conditions. The latest smart chip can be used as oil-water interface switch.
Tuning fork liquid level switch is widely used for monitoring the limit value of tap water, mineral water, gasoline, diesel, paper pulp, glue, waste water, dye, acid and alkali solution, beer, beverage and other liquid media, as well as for monitoring the limit value of solid powder, solid particles and other good flowing media.
Factory NYYCUK-A Tuning Fork Level Switch Technical Parameters
| Typical application | High and low alarm for liquids (including coated liquids, aerated liquids and grout) and dust |
| Product model | NYYCUK-A |
| Fork material | SS316L |
| Fork length | 44mm |
| Process connection | Thread, flange |
| Operating temperature | Fork body: -40~+180℃; instrument: -40~+80℃ |
| Process pressure | ＜2.0MPa |
| Power supply | 24VDC, 220VAC |
| Protection level | IP66 |
| Explosion-proof grade | Exd II BT4 |
| Signal output | DPDT relay output |
Note: Products can be customized according to the specific requirements of users.

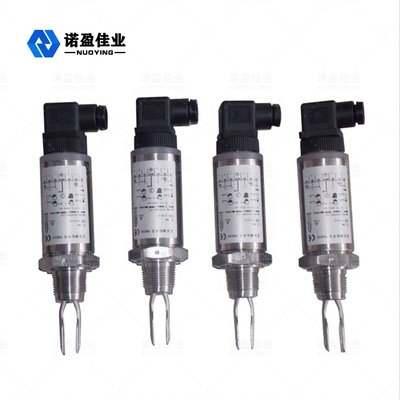

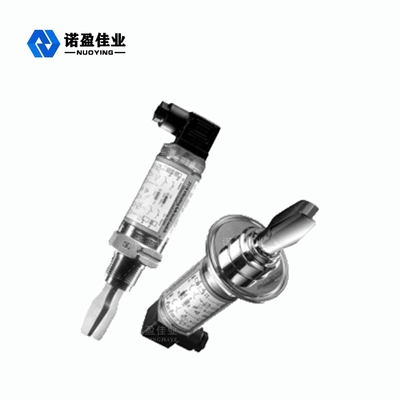

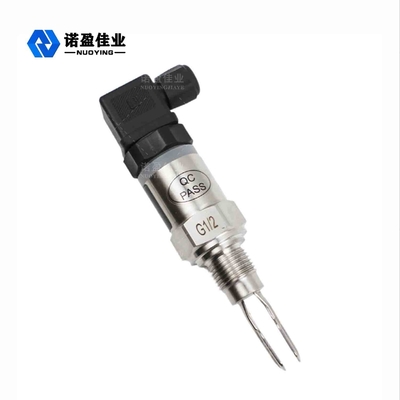

Factory NYYCUK-A Tuning Fork Level Switch Related Pictures
