| Brand Name: | NUOYING |
| Model Number: | NYYCUK-A |
| MOQ: | 1 pc |
| Price: | $38~$51/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYYCUK-A Tuning Fork Level Switch SS316L Liquid Level Switch SPDT Relay Output Water Level Switch with CE Certification
NYYCUK-A Tuning Fork Level Switch Application Fields
◎ Water plant: water level detection of tap water and mineral water
◎ Liquid that can generate gas
◎ Paper mill: pulp, glue, dye level
◎ Beverage factory/brewery: beer, beer starter, beverage level;
◎ Chemical plant: Detect the liquid level of polyester, spandex, waste water, mud, acid, alkali, etc.
◎ Glass factory: check the level of quartz sand and cullet
◎ Oil production plant: detect gasoline/oil production liquid level
◎ Environmental protection: check the level of sewage and wastewater
◎ Boiler factory: check the water level of the steam drum and the liquid level of other pressure vessels
◎ Liquid level control in other industries
NYYCUK-A Tuning Fork Level Switch Technical Parameters
| Typical application | High and low alarm for liquids (including coated liquids, aerated liquids and grout) and dust |
| Product model | NYYCUK-A |
| Fork material | SS316L |
| Fork length | 44mm |
| Process connection | Thread, flange |
| Operating temperature | Fork body: -40~+180℃; instrument: -40~+80℃ |
| Process pressure | ＜2.0MPa |
| Power supply | 24VDC, 220VAC |
| Protection level | IP66 |
| Explosion-proof grade | Exd II BT4 |
| Signal output | DPDT relay output |
Note: Products can be customized according to the specific requirements of users.

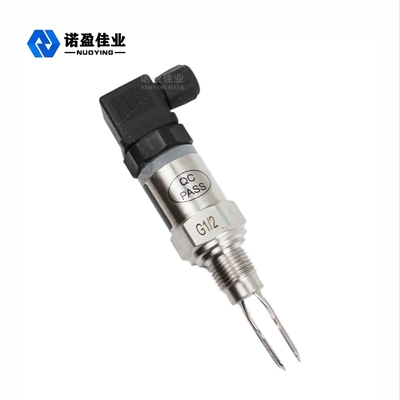

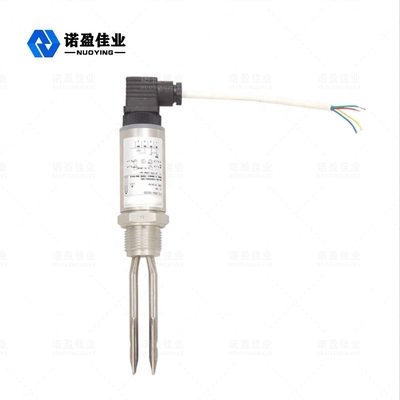

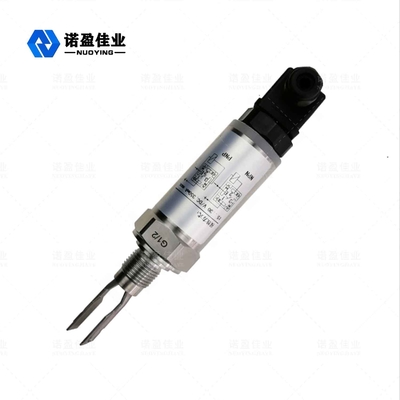

NYYCUK-A Tuning Fork Level Switch Related Pictures
