| Brand Name: | NUOYING |
| Model Number: | NYYCUK-A |
| MOQ: | 1 pc |
| Price: | $38~$52/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
Tuning Fork Level Switch in Stainless Steel Housing Water Level Controller With 44mm Fork Made in China
Tuning Fork Level Switch Technical Parameters
| Typical application | High and low alarm for liquids (including coated liquids, aerated liquids and grout) and dust |
| Product model | NYYCUK-A |
| Fork material | SS316L |
| Fork length | 44mm |
| Process connection | Thread, flange |
| Operating temperature | Fork body: -40~+180℃; instrument: -40~+80℃ |
| Process pressure | ＜2.0MPa |
| Power supply | 24VDC, 220VAC |
| Protection level | IP66 |
| Explosion-proof grade | Exd II BT4 |
| Signal output | DPDT relay output |
Note: Products can be customized according to the specific requirements of users.
Tuning Fork Level Switch Installation Requirements
The instrument is generally installed vertically with the fork end downward, horizontally installed or with the fork end inclined downward (when the material has strong adhesion, it is recommended to install the fork end vertically downward).
When the material is mixed with lumps or hard particles, it is recommended to adopt a vertical or inclined installation method.
Before installing on the equipment, it is recommended to use a small amount of media sample to test the calibration sensitivity. For example: immerse the meter in a window containing a medium to test the reliability of the switch.
The actual installation is generally divided into top installation (high-level monitoring of the medium), side wall installation (high or low-level monitoring of the medium), and pipeline installation (air flow monitoring of the material pump)

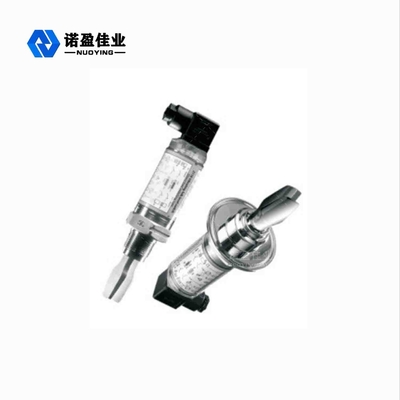

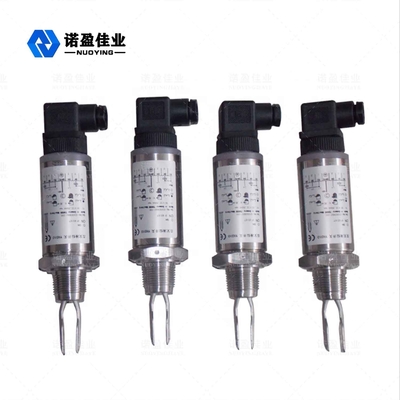

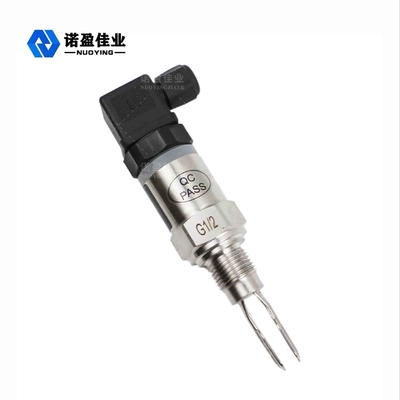

Tuning Fork Level Switch Related Pictures
