| Brand Name: | NUOYING |
| Model Number: | NYYCUK-A |
| MOQ: | 1 pc |
| Price: | $38~$49/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYYCUK-A Tuning Fork Level Switch With Thread or Flange Connection Water Level Switch Manufacturer
NYYCUK-A Tuning Fork Level Switch Product Description
The tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, and it is also suitable for measuring free-flowing medium-density solid powders or particles. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so there is no need for maintenance and adjustment, and it is simple and convenient to use.
NYYCUK-A Tuning Fork Level Switch Working Principle
NYYCUK tuning fork liquid level switch is a universal liquid level limit switch. The tuning fork vibrates under the stimulation of piezoelectric crystals. When the fork is immersed in liquid or solid, the vibration frequency will change. The frequency change is detected by an electronic circuit with switching value. The tuning fork liquid level limit switch is not affected by dielectric constant, turbulence, agitation, bubble, vibration and other factors, and has no moving parts, so it does not need maintenance and adjustment. It is an ideal choice for liquid level switch under complex working conditions. The latest smart chip can be used as oil-water interface switch.
NYYCUK-A Tuning Fork Level Switch Technical Parameters
| Typical application | High and low alarm for liquids (including coated liquids, aerated liquids and grout) and dust |
| Product model | NYYCUK-A |
| Fork material | SS316L |
| Fork length | 44mm |
| Process connection | Thread, flange |
| Operating temperature | Fork body: -40~+180℃; instrument: -40~+80℃ |
| Process pressure | ＜2.0MPa |
| Power supply | 24VDC, 220VAC |
| Protection level | IP66 |
| Explosion-proof grade | Exd II BT4 |
| Signal output | DPDT relay output |
Note: Products can be customized according to the specific requirements of users.

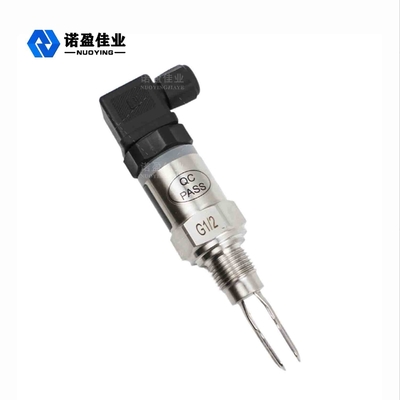

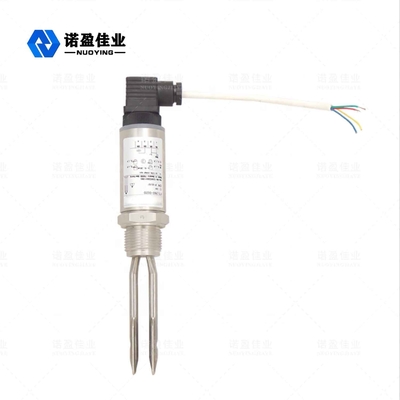

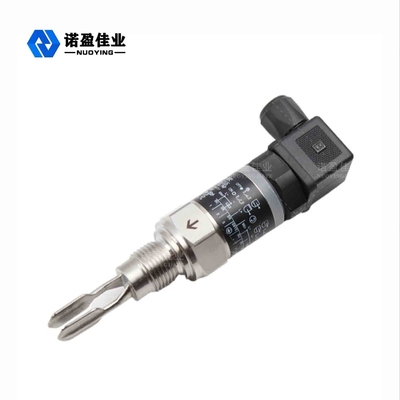

NYYCUK-A Tuning Fork Level Switch Related Pictures
