| Brand Name: | NUOYING |
| Model Number: | NYYCUK-A |
| MOQ: | 1 pc |
| Price: | $40~$50/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
IP66 Tuning Fork Level Switch With High Quality and Low Price Factory Direct Sale Water Level Switch
IP66 Tuning Fork Level Switch Product Description
The tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, and it is also suitable for measuring free-flowing medium-density solid powders or particles. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so there is no need for maintenance and adjustment, and it is simple and convenient to use.
The tuning fork liquid level switch is widely used for monitoring the limit value of tap water, mineral water, gasoline, diesel, paper pulp, glue, waste water, dye, acid and alkali solution, beer, beverage and other liquid media, as well as for monitoring the limit value of solid powder, solid particles and other good flowing media.
IP66 Tuning Fork Level Switch Technical Parameters
| Typical application | High and low alarm for liquids (including coated liquids, aerated liquids and grout) and dust |
| Product model | NYYCUK-A |
| Fork material | SS316L |
| Fork length | 44mm |
| Process connection | Thread, flange |
| Operating temperature | Fork body: -40~+180℃; instrument: -40~+80℃ |
| Process pressure | ＜2.0MPa |
| Power supply | 24VDC, 220VAC |
| Protection level | IP66 |
| Explosion-proof grade | Exd II BT4 |
| Signal output | DPDT relay output |
Note: Products can be customized according to the specific requirements of users.

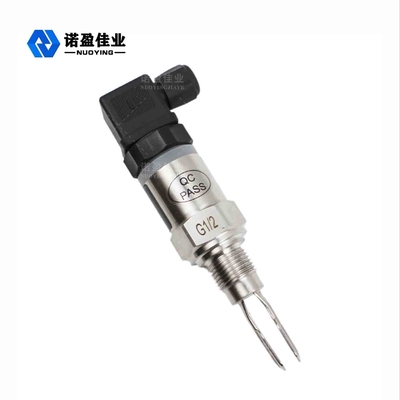

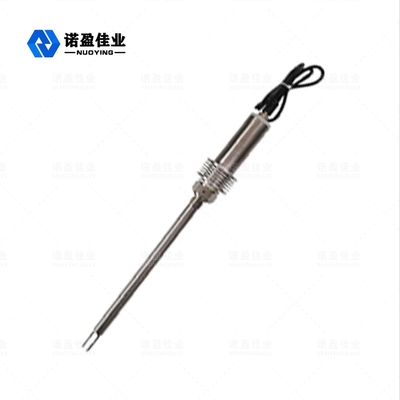

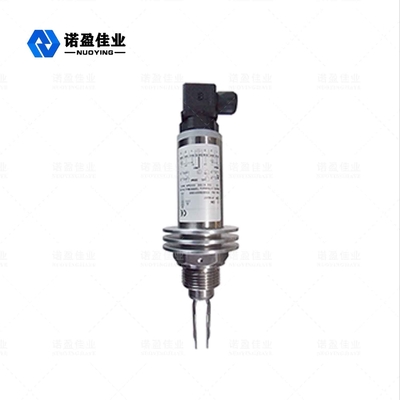

IP66 Tuning Fork Level Switch Related Pictures
