| Brand Name: | NUOYING |
| Model Number: | NYYCUK-A |
| MOQ: | 1 pc |
| Price: | $41~$48/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYYCUK-A Tuning Fork Level Switch for High and Low Level Alarm of Liquids and Powders
NYYCUK-A Tuning Fork Level Switch Product Description
The tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, and it is also suitable for measuring free-flowing medium-density solid powders or particles. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so there is no need for maintenance and adjustment, and it is simple and convenient to use.
NYYCUK-A Tuning Fork Level Switch Design Features
1. It is suitable for measuring medium density solid powder or free flowing particles. It is also suitable for almost all liquid media. This series of tuning fork level switches can measure various material levels, features high/low fail-safe limit switches, overflow or idle protection, pump controls, indicating whether to flow in the line, and much more.
2. It is not affected by foam, eddy current and gas. It is suitable for fixed point alarm or control of solid material level in various silos and liquid level in various containers. Various models are available for different occasions.
3. Long service life, stable performance, safe and reliable
NYYCUK-A Tuning Fork Level Switch Technical Parameters
| Typical application | High and low alarm for liquids (including coated liquids, aerated liquids and grout) and dust |
| Product model | NYYCUK-A |
| Fork material | SS316L |
| Fork length | 44mm |
| Process connection | Thread, flange |
| Operating temperature | Fork body: -40~+180℃; instrument: -40~+80℃ |
| Process pressure | ＜2.0MPa |
| Power supply | 24VDC, 220VAC |
| Protection level | IP66 |
| Explosion-proof grade | Exd II BT4 |
| Signal output | DPDT relay output |
Note: Products can be customized according to the specific requirements of users.

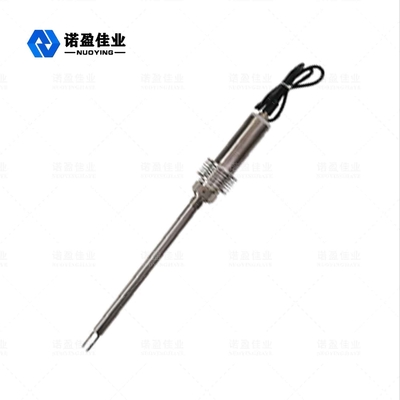

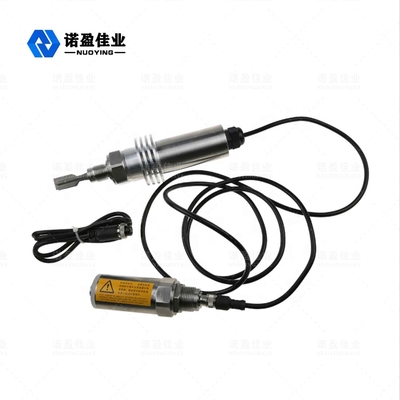

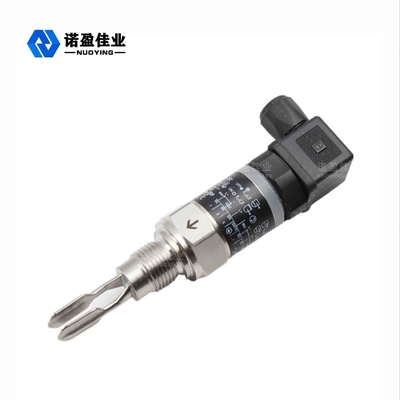

NYYCUK-A Tuning Fork Level Switch Related Pictures
