| Brand Name: | NUOYING |
| Model Number: | NYYCUK-A |
| MOQ: | 1 pc |
| Price: | $39~$49/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYYCUK-A Tuning Fork Level Switch for All Kinds of Liquids With 44mm Fork
NYYCUK-A Tuning Fork Level Switch Product Description
The tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, and it is also suitable for measuring free-flowing medium-density solid powders or particles. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so there is no need for maintenance and adjustment, and it is simple and convenient to use.
NYYCUK-A Tuning Fork Level Switch Design Features
1. Strong adaptability - the different electrical parameters and density of the measured material will not affect the measurement effect. Such as scaling, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature and high pressure and other harsh conditions will not affect the detection.
2. No adjustment required: unaffected by the dielectric constant and density of the medium under test, no field adjustment is required, regardless of the type of liquid under test.
3. Maintenance-free: The tuning fork switch test process is conducted by electronic circuit, no moving parts. After installation and use, no field adjustment is required.
NYYCUK-A Tuning Fork Level Switch Technical Parameters
| Typical application | High and low alarm for liquids (including coated liquids, aerated liquids and grout) and dust |
| Product model | NYYCUK-A |
| Fork material | SS316L |
| Fork length | 44mm |
| Process connection | Thread, flange |
| Operating temperature | Fork body: -40~+180℃; instrument: -40~+80℃ |
| Process pressure | ＜2.0MPa |
| Power supply | 24VDC, 220VAC |
| Protection level | IP66 |
| Explosion-proof grade | Exd II BT4 |
| Signal output | DPDT relay output |
Note: Products can be customized according to the specific requirements of users.

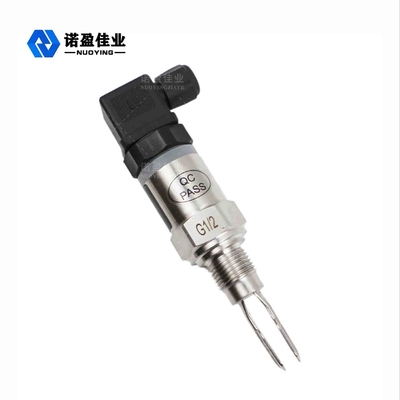

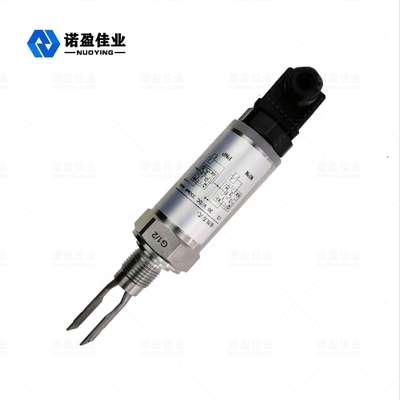

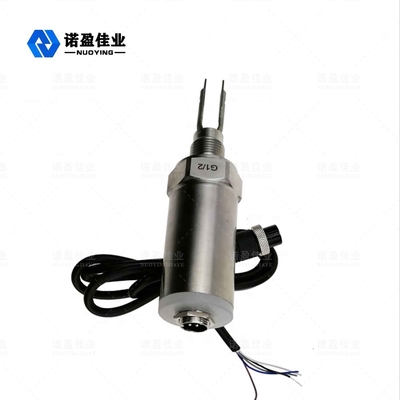

NYYCUK-A Tuning Fork Level Switch Related Pictures
