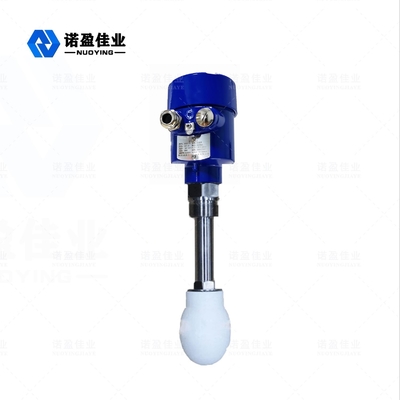

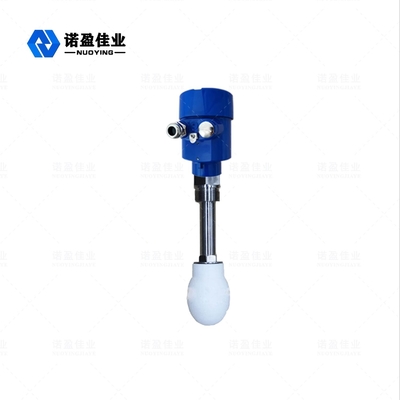

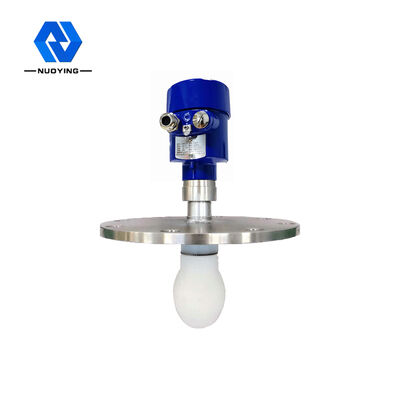

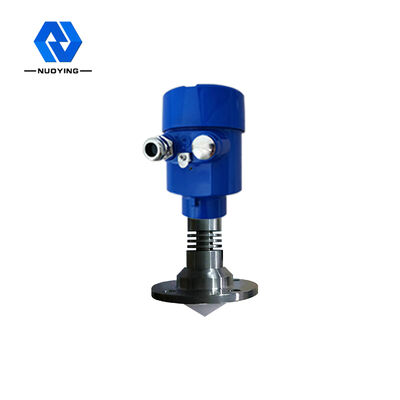

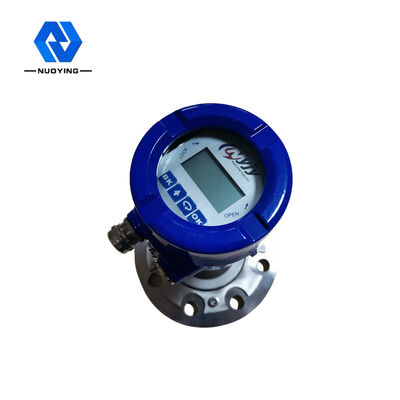

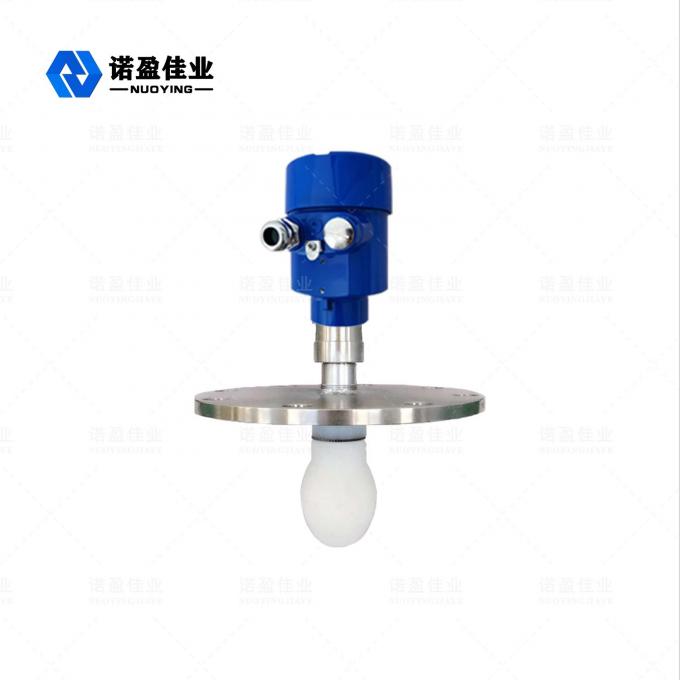

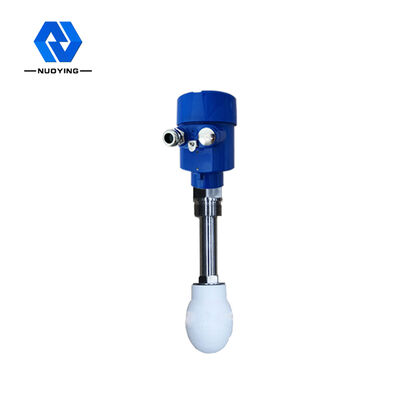

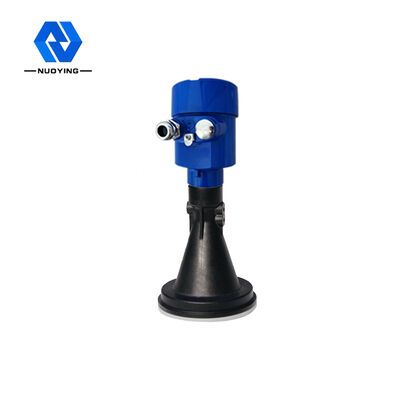

Low Price and High Reliability 26GHz Radar Type Level Sensor Water High Accuracy Radar Level Meter VEGAPULS63 Liquid Level Meter

Name: Low Price and High Reliability 26GHz Radar Type Level Sensor Water High Accuracy Radar Level Meter VEGAPULS63 Liquid Level Meter
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYRD-SD
Price: 500.00 USD
Availability: InStock

Brand Name:	NUOYING
Model Number:	NYRD-SD
MOQ:	1pcs
Price:	$400~600/pcs
Payment Terms:	T/T
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

IP67

Warranty:

1 Years

Applications:

Easy Crystallization, Condensation, Strong Corrosive Liquid, Powder

Measuring Range:

40M

Accuracy:

±15mm

Process Temperature:

-40~260℃

Process Pressure:

-0.1~2.0MPa

Process Connection:

Flange(selective)

Protection Class:

IP67

Signal Output:

4...20mA/HART/RS485/Modbus...

Grade:

Industrial

Packaging Details:

40*30*30CM

Supply Ability:

1000pcs per month

Product Description

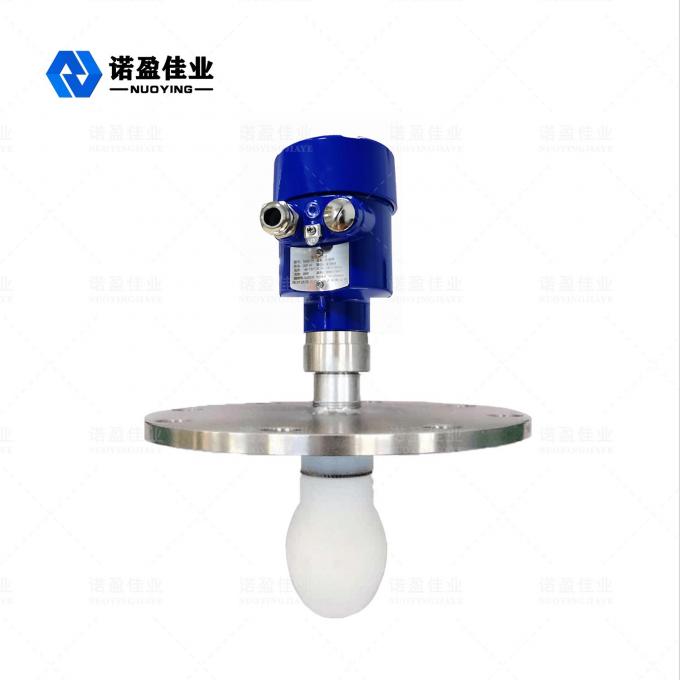

WNYRD - SD ater Drop Type Liquid Radar Level Transmitter 2.0MPa

Overview

Product Description

The radar level measurement series sensors are 26GHz high-frequency radar level measurement instruments, capable of measuring a maximum distance of up to 80 meters. The antenna has been further optimized.
The new fast microprocessor can perform higher-speed signal analysis and processing, enabling the instrument to be used for complex measurements in reactors, solid silos, and other similar applications. Document.

The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse waves contact the surface of the measured medium, they are reflected back and received again by the antenna system. The signal is then transmitted to the electronic circuitry section, which automatically converts it into a level signal (because the pulse travels extremely fast, the time it takes for the electromagnetic wave to reach the target and be reflected back and received by the receiver is almost instantaneous).

Specification

item	value
Grade	Industrial
Warranty	1 years
Customized support	OEM, ODM
Place of Origin	China
	Shaanxi
Brand Name	NUOYINGJIAYE
Model Number	NYRD-SD
Typical application	Easy crystallization, condensation, strong corrosive liquid, powder
Transmit frequency	26GHz
Range	70m

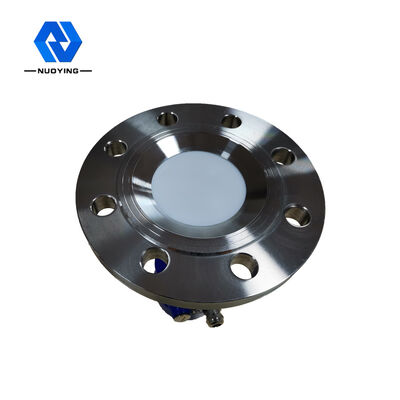

Antenna material	Water drop antenna, PTFE(optional)
Process temperature	-40~130℃
Process connection	flange(optional)
Signal output	4...20mA/HART/RS485/Modbus...
Supply power	24V DC (optional)
Process pressure	-0.1~4.0MPa
Protection class	IP67
