| Brand Name: | NUOYINGJIAYE |
| Model Number: | NYRD-806 |
| MOQ: | 1 pc |
| Price: | $450~$1700/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/month |

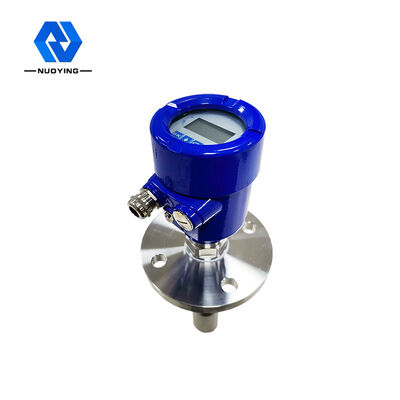

NYRD 806 26GHz Smart Radar Level Meter For Anti-corrosion and Corrosion Resistant 4-20mA and RS485 level measuring instruments
Working Principle of NYRD 806 26G Smart Radar Level Meter For Temperature/Pressure Resistant And Slightly Corrosive Liquid
Radar Level Meter (NYRD80X)series sensors are 26GHz high-frequency radar level measuring instruments, measuring the maximum distance up to 80 meters. The antenna is further optimized, and new fast microprocessors can perform higher rate signal analysis and processing, enabling the meter to be used in complex measurement conditions such as reaction tanks and solid bin.
according to the ultrasonic time difference from the launch to be receiving and known to determine the level of sound, Microwave signals are processed by electronic devices and finally converted into electrical signals related to the object level
Datum of measurement: sealing surface of thread bottom or flange.
Note: When using radar level timing, make sure that the highest material level cannot enter the measurement blind area (the area shown in D in the figure).
Design features of NYRD 806 26G Smart Radar Level Meter For Temperature/Pressure Resistant And Slightly Corrosive Liquid
◎ almost immune to corrosion and foam; Not affected by medium density, temperature and pressure changes.
◎The antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
◎ Serious dust environment has little influence on the work of high frequency level meter.
◎ Shorter wavelength, better reflection on inclined solid surfaces.
◎ The beam Angle is small, the energy is concentrated, which enhances the echo ability and is conducive to avoid interference objects.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.
Technical Parameters of NYRD 806 26G Smart Radar Level Meter For Temperature/Pressure Resistant And Slightly Corrosive Liquid
| Typical application | Temperature resistant, pressure resistant and slightly corrosive liquid |
|
product model |
NYRD806 |

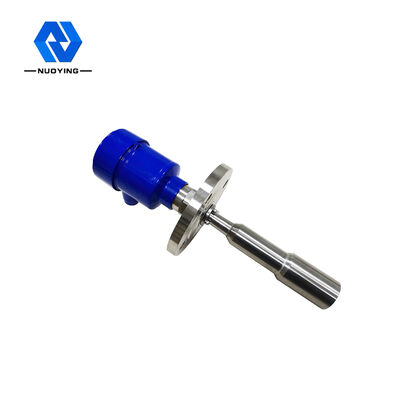

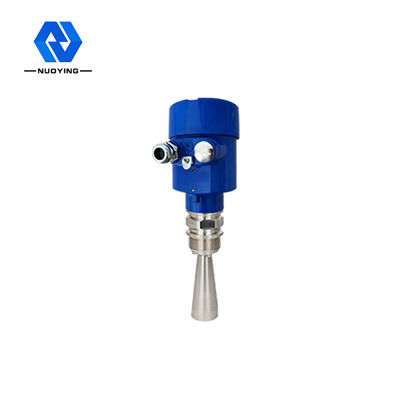

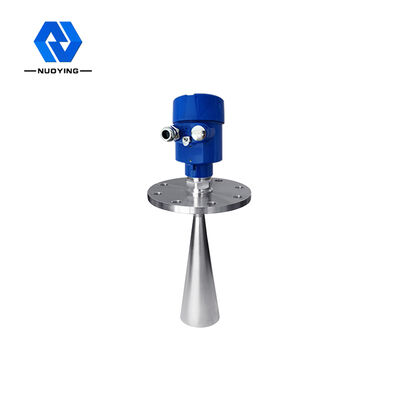

| Antenna form | Stick, water drop, flat, trumpet,thrown surface, lens |
| Antenna material | 316 |
| measuring range | 30m |
| accuracy of measurement | 0.05%~0.1%F.S |
| Power Supply Voltage | 24VDC(two wire,four wire) |
| signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+250 ℃ |
| Process pressure | -0.1~4.0 MPa, |
| procedure linkage | bracket,flange (optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP67(optional) |
| explosion-proof classification | Exia II CT6 |
※Note:The product can be customized according to the specific requirements of users.
