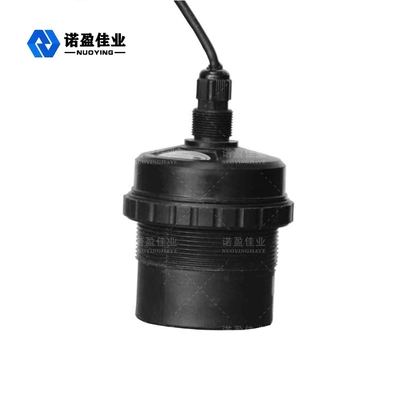

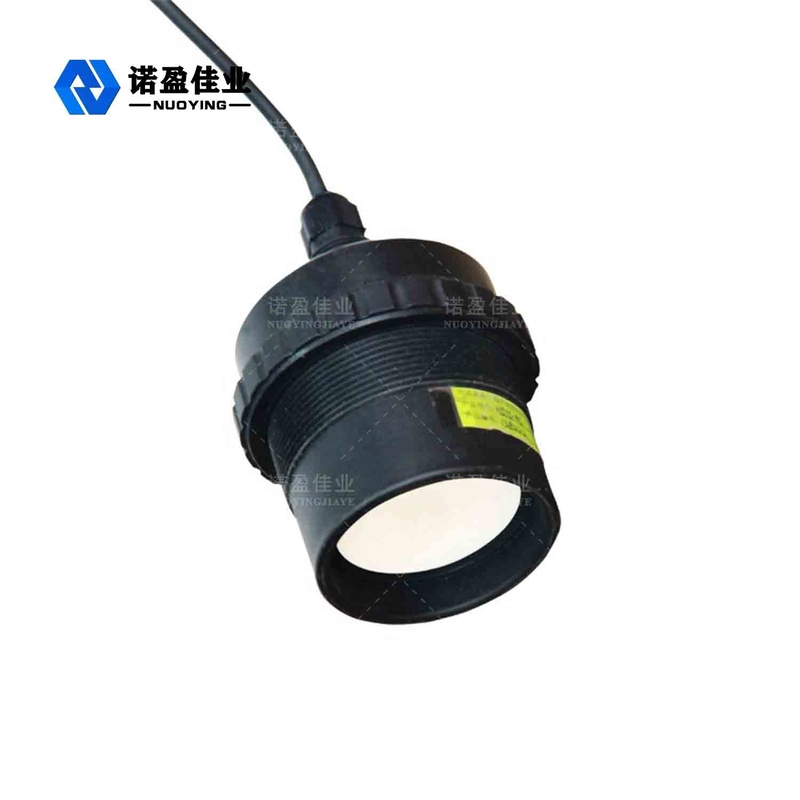

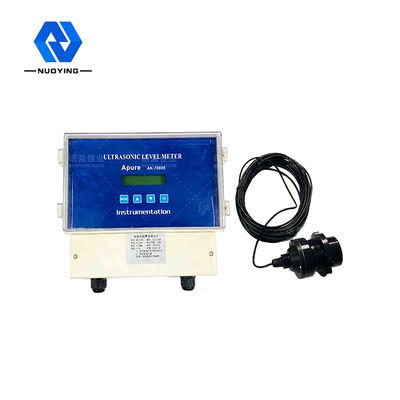

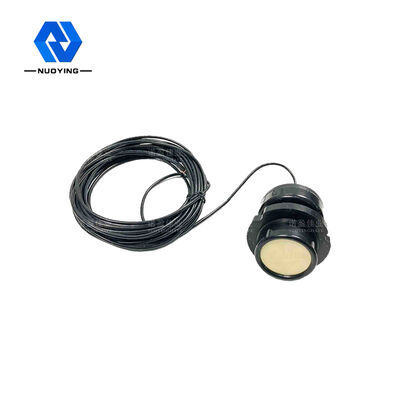

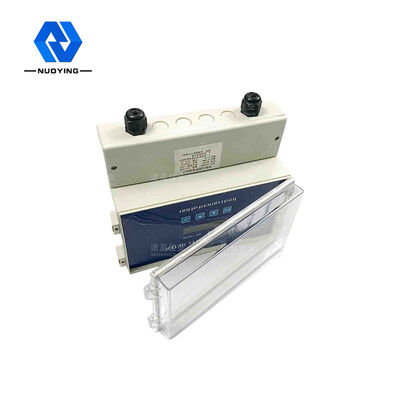

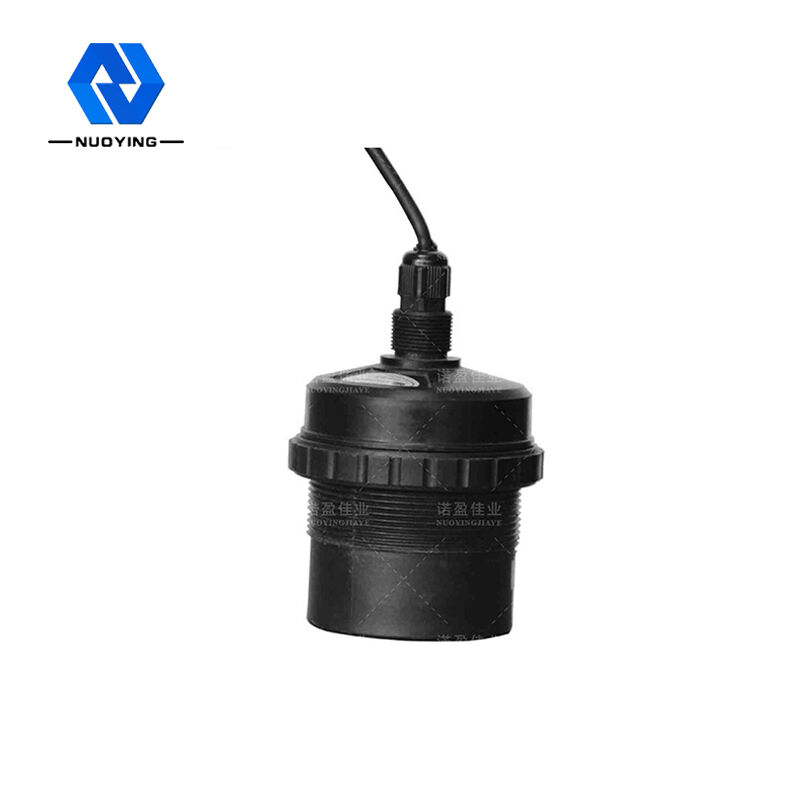

IP65 Ultrasonic Level Gauge For Sludge 24VDC Maintenance Free

IP65 Ultrasonic Level Gauge For Sludge 24VDC Maintenance Free

Brand Name: Nuoying JIAYE
Model Number: NYCSUL-502
MOQ: 1 set
Price: $129.00-$300.00
Payment Terms: T/T
Supply Ability: 300 units a month
Detail Information
Place of Origin:
China
Certification:
Explosion proof certificate
Measuring Range:
20m
Measurement Accura:
0.25%FS To 0.5%FS
Application:
Acid ,oil ,diesel ,water Liquid Or Solid Level Measurement
Power Supply:
24VDC Or 220VAC, 12VDC Power Supply Can Be Customized
Process Pressure:
Normal Pressure
Display:
LCD
Shell Material:
Polypropylene/Aluminum
Protection Class:
IP65,IP67
Packaging Details:
30cm×25cm×20cm
Supply Ability:
300 units a month
Highlight:

IP65 Ultrasonic Level Gauge

,

Sludge Ultrasonic Level Gauge 24VDC

,

24VDC ultrasonic level indicator

Product Description

Maintenance-free Level Measurement Ultrasonic Level Transmitter for Sludge



Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process.

Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually any liquid. A complete offering of materials and mounting configurations are available to meet your application needs.



IP65 Ultrasonic Level Gauge For Sludge 24VDC Maintenance Free 0



Ultrasonic Level Transmitter Technical parameters



Range 0 ~ 15 m
Blind 0.3 m
Accuracy (in air) 0.25% (full scale)
Display resolution 0.01m
Current output

4 ~ 20 ma,1 ~ 5 v 1 ~ 10 v,

RS485

3-way NPN (can be configured to PP pulse output)

Two-way relay (AC: 5 a 250 v DC: 10 a 24 v)

Output Resolution 0.03% of the actual range
Temperature range -40-- +70 Degrees Celsius
Relay Output Upper and lower control
Power supply 12 to 24 VDC or 220 Vac
Parameter settings 3 felt buttons
Temperature compensation Full Range Auto
Instrument material ABS engineering plastics
Installation Flange or bracket
Sound beam angle 8o (3db)
Pressure range 0.04Mp special general 0.5Mp



Ultrasonic Level Transmitter Features



  • Not reliant on chemical properties of the liquid
  • No moving parts
  • Simple installation with no calibration necessary
  • Available in a wide variety of materials and process connections
  • Remote Self-test to verify operation of the electronics and sensor
  • Auto gain control, auto power control
  • over-voltage/over-current protection
