Product Details:
|
| Measuringangle: | 10° | Measurement Accura: | ＜0.25%(Range＜20m) |
|---|---|---|---|
| Measuring Range: | 0-20m | ProbeMaterial: | PP/PVC/PTFE/304(optional） |
| Probe Type: | Integrated | Signal Output: | 4...20mA/HART/RS485... |
| Display Mode: | Liquid Level, Distance (empty Height) | Setting Output: | Upper Limit Setting, Lower Limit Setting |
| Highlight: | PVC Ultrasonic Level Transmitter,20m Ultrasonic Liquid Level Gauge,PVC ultrasonic water level sensor |
||

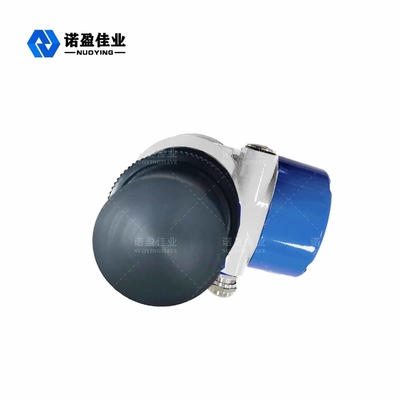

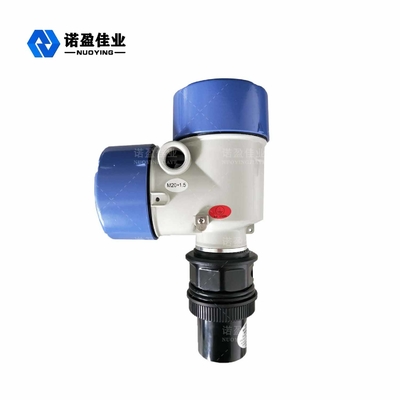

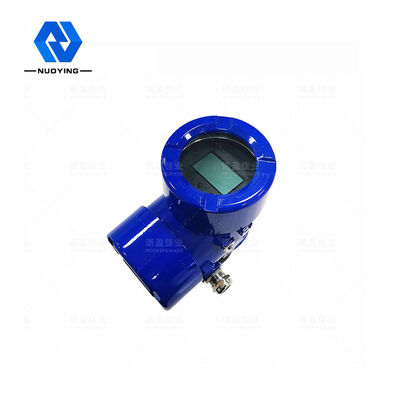

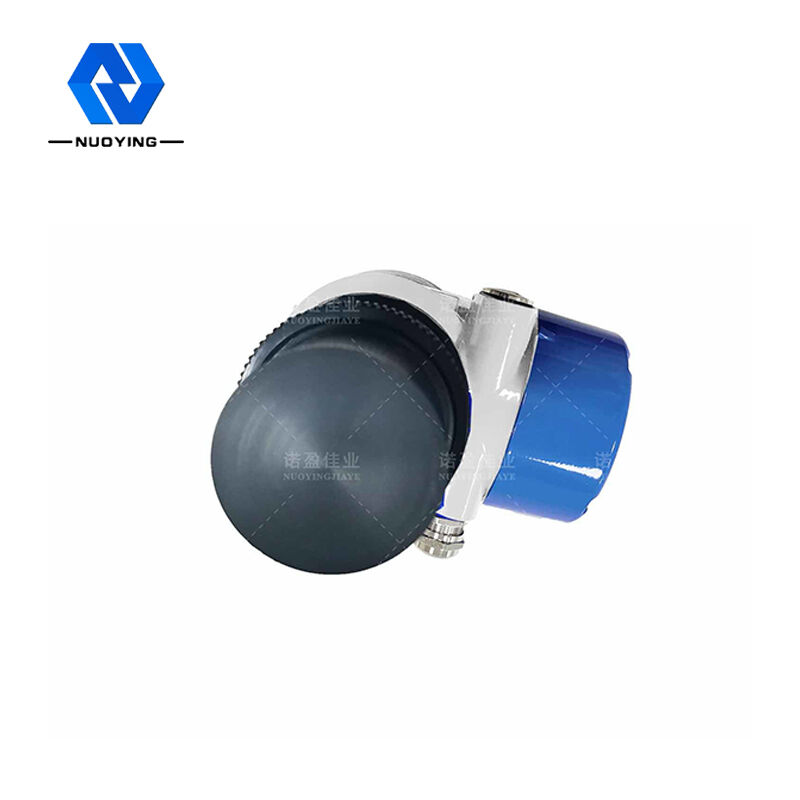

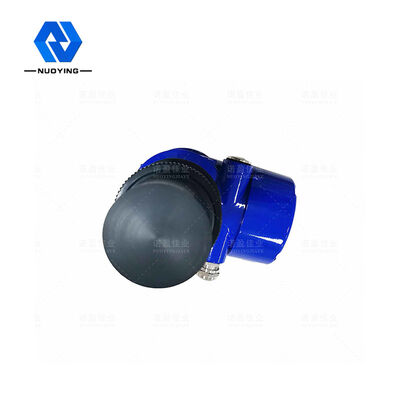

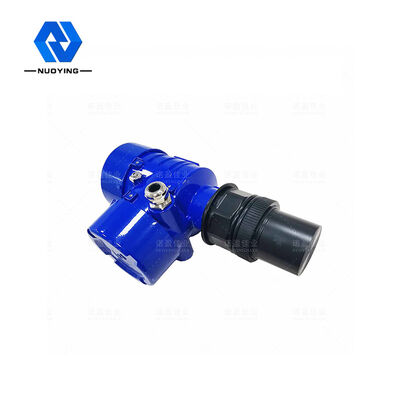

Ultrasonic Level Transmitter
Ultrasonic level meter is a digital level meter controlled by microprocessor. In the measurement of ultrasonic pulse made by sensor (transducer), sound waves after the liquid surface reflection by the same sensor receiving, by piezoelectric crystal is converted into electrical signals, and by sound waves between transmitting and receiving time to calculate the sensor to the measured distance on the surface of the liquid. Due to the use of non-contact measurement, the measured medium is almost unlimited, can be widely used in a variety of liquid and solid material height measurement.
Ultrasonic Level Transmitter Technical Parameter
| Typical application | Liquid level measurement |
| Frequency Range | 40KHz,100KHz |
| Probe type | Integrated |
| ProbeMaterial | PP/PVC/PTFE/304(optional) |
| Measuring range | 0～20m |
| Measurement accura | ＜0.25%(Range＜20m) |
| Measuringangle | 10° |
| Power supply | 24VDC,220VAC |
| Process temperature | (-20-70℃) |
| Process pressure | Normal pressure |
| Process connection | Thread, Flange, Bracket mounting (optional) |
| Signal output | 4...20mA/HART/RS485... |
| Display mode | Liquid level, distance (empty height) |
| Setting output | Upper limit setting, lower limit setting |
| Display | LCD |
| Shell material | Polypropylene/Aluminum |
| Protection class | IP65,IP67 |
| Explosion-proofgrade | ExiaⅡCT6 Ga |
Note: customized on demand

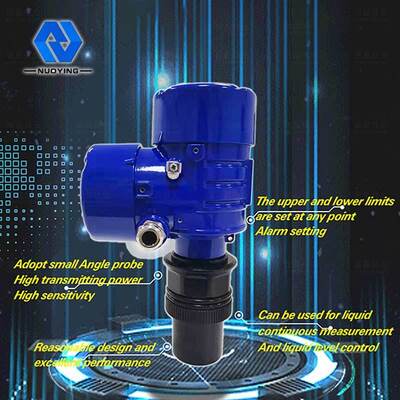

Ultrasonic Level Transmitter Design features
