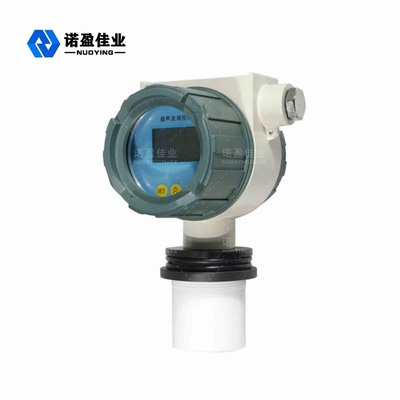

Remote Monitoring Lake Ultrasonic Level Transmitter Ultrasonic Oil Level Transmitter

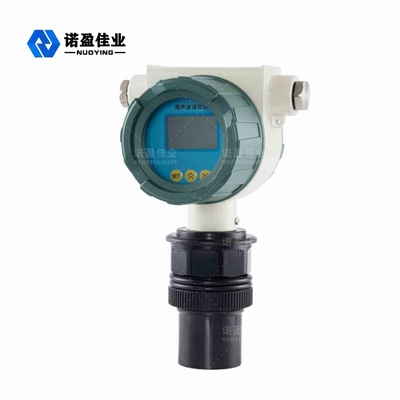

Remote Monitoring Lake Ultrasonic Level Transmitter Ultrasonic Oil Level Transmitter

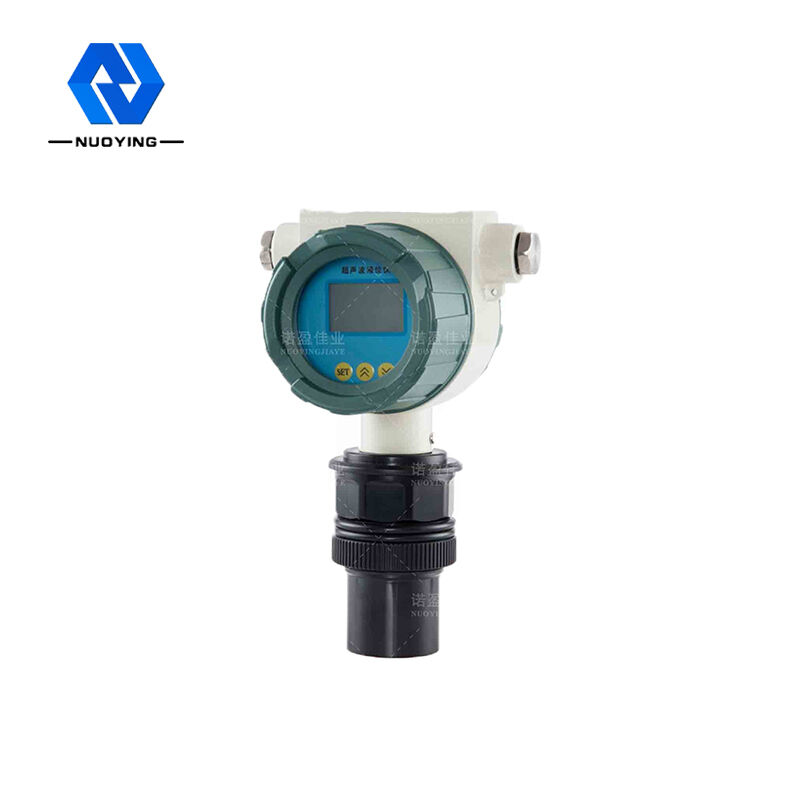

Remote Monitoring Lake Ultrasonic Level Transmitter Ultrasonic Oil Level Transmitter Remote Monitoring Lake Ultrasonic Level Transmitter Ultrasonic Oil Level Transmitter

Large Image :  Remote Monitoring Lake Ultrasonic Level Transmitter Ultrasonic Oil Level Transmitter

Product Details:
Place of Origin: China
Brand Name: Nuoying JIAYE
Certification: Explosion proof certificate
Model Number: NYCSUL-503
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $180.00 - $500.00/ Piece
Packaging Details: 30cm×25cm×20cm
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 300 units a month

Remote Monitoring Lake Ultrasonic Level Transmitter Ultrasonic Oil Level Transmitter

Description
Accuracy: 0.25%-0.5%F.S Setting Output: Upper Limit Setting, Lower Limit Setting
Medium: Non-corrosion Liquid Signal Output: 4...20mA/HART/RS485...
Process Connection: Thread, Flange, Bracket Mounting (optional) Working Pressure: 2 Bar (Explore Proof Type Is 4 Bar)
Process Temperature: -20-80℃ Power Supply: 24VDC、220VAC
High Light:

Remote Monitoring Ultrasonic Level Transmitter

,

Ultrasonic Level Transmitter Explosion proof

,

Explosion proof ultrasonic liquid level gauge

Ultrasonic Level Transmitter

NYCSUL ultrasonic level sensors have beautiful appearance, stability performance; explore proof design and good measurement function. Isolated power supply by industrial instruments, all of the output, input lines with lightning protection, overvoltage, over current protection circuit functions. Transmitter function of small, weak energy, high sensitivity, bearing small; a complete sensor system can accurately complete the objects in different environments continuous non-contact measurement; small blind, high accuracy, wide application, send and receive integrated, which can accurately receive weak echo signals to ensure the accuracy and reliability. NYCSUL explore proof Ultrasonic Level Sensor is a safe, clean, high precision, long life, stable and reliable, easy installation and maintenance ease of use easy to read and so on.

Remote Monitoring Lake Ultrasonic Level Transmitter Ultrasonic Oil Level Transmitter 0

Ultrasonic Level Transmitter Technical Parameter

Functions Integrative Type Segregated Type
Level Range:

Economic Type: 5M, 10M, 12M.

Standard Type: 5M, 10M, 15M, 20M,

30M, 50M.

5M, 10M, 15M, 20M,30M, 50M, 70M.
Accuracy: 0.25%-0.5%F.S 0.25%-0.5%F.S
Blind Zone: 0.2-0.6m 0.2-0.6m
Working Pressure: 2 Bar (Explore Proof Type is 5 Bar) 2 Bar (Explore Proof Type is 5 Bar)
Resolution: 3 mm or 0.1%F.S (Max of them) 3 mm or 0.1%F.S (Max of them)
Display: English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection.
Analog Output:

4~20mA/750Ω load resistance (2 wire)

4~20mA/250Ω load resistance (4 wire)

1~5 V (3 wires)

0~5 V (3 wires)

0~10 V (3 wires)

4~20mA/750Ω load resistance

1~5 V (3 wires)

0~5 V (3 wires)

0~10 V (3 wires)

Relay /Alarm Output:

AC 250V/ 8A;

DC 30V/ 5A;

State programmable (optional for 4 wire)

AC 250V/ 8A;

DC 30V/ 5A;

State programmable (optional)

Power Supply:

24VDC 120mA

12VDC (available to offer power by motor, battery or solar power and so on.)

220VAC+15% 50Hz

24VDC 120mA

12VDC (available to offer power by motor, battery or solar power and so on.)

Environment Temperature:

Meter: -20~+60℃

Sensor: -20~+80℃

Meter: -20~+60℃

Sensor: -20~+80℃

Communication: RS485 Communications (optional) RS485 Communications (optional)
Explore Proof: Ex(ia)ⅡCT6 Ex(ia)ⅡCT6
Water Proof:

Economic Type: IP65

Standard Type: IP66

Meter: IP65

Sensor: IP68

Cable of Sensor: Null Standard: 10 Meters, Max to 200 Meters
Sensor Installation: By level range and model code By level range and model code
Store Request:

Temperature: -20~+80℃

Pressure: atmospheric pressure

Humidity: ≤90%RH

Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.

Temperature: -20~+80℃

Pressure: atmospheric pressure

Humidity: ≤90%RH

Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.





※ note: the product can be customized according to the specific requirements of users!



Ultrasonic Level Transmitter Features



  • High Precision: Our Company has patented sonic technology to explosion-proof intelligent ultrasonic level sensor accuracy from 0.25% to 0.5%F.S optional, which is anti-kinds of interference waves.
  • Reliability:Ultrasonic Level Meter can replace imported instruments. We start from the power circuit design, the isolation module on the use of high-quality, critical components of high stability and reliability of procurement selection device.
  • Safety, Aesthetics, High degree of protection: We are using the die casting aluminum alloy waterproof, explosion-proof enclosure. Protection class IP65 to IP68. Explosion-proof grade: Ex(ia)ⅡCT6, combustible explosive gas can be carried out all the liquid level measurement (except for hydrogen, acetylene, carbon disulfide outside), it is more than proof level of security entirely diesel, kerosene, gasoline and other commonly used oil requirements.
  • Low failure rate, easy to install, easy to maintain: Ultrasonic Level sensor is a non-contact instrument, not in direct contact with the liquid, low failure rate. At the same time, when install the devices, you don’t need to clear it, which will not affect the normal production run. Instruments offers a variety of installation, the user can through the manual calibration of the instrument.
  • Various means of protection: All input and output lines are a mine, over current, over voltage protection function.
