| Applications: | Liquid, Corrosive Liquid, Insulating Liquid | Probe Type: | Hard Insulating Rod |
|---|---|---|---|
| Measuring Range: | 0~6m | Process Connection: | Screw Thread, Flange(optional), |
| Protection Grade: | Display Instrument IP67, IP67 | Operating Temperature: | -40～200℃ |
| Signal Output: | 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) | Power Supply: | （13-35）vDC |
| Highlight: | PTFE RF Admittance Level Transmitter,Liquid RF Admittance Level Transmitter,PTFE RF Liquid Level Transmitter |
||

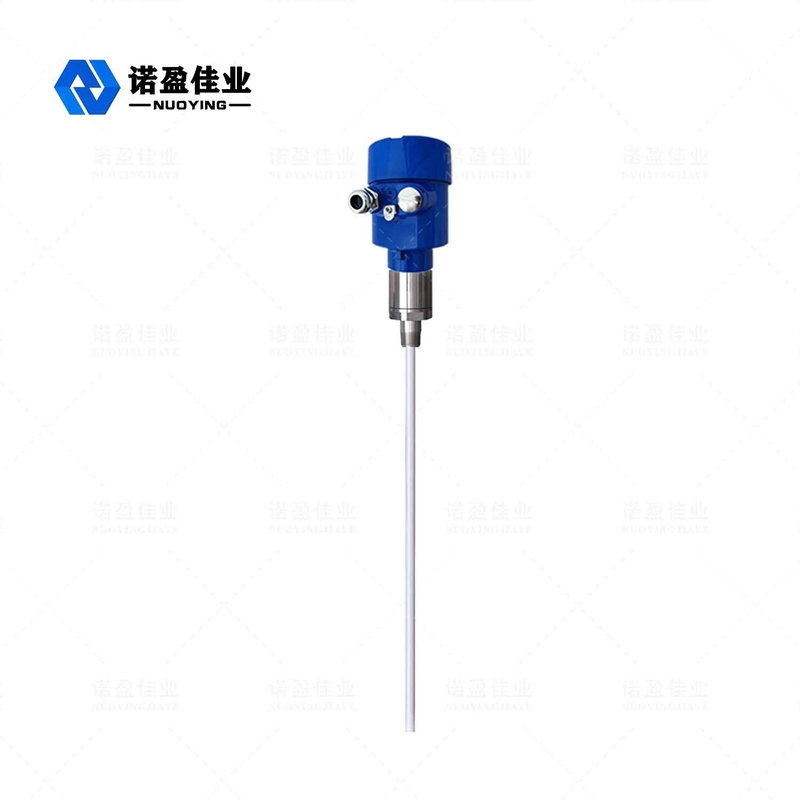

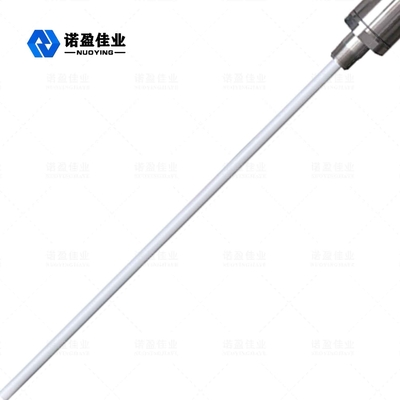

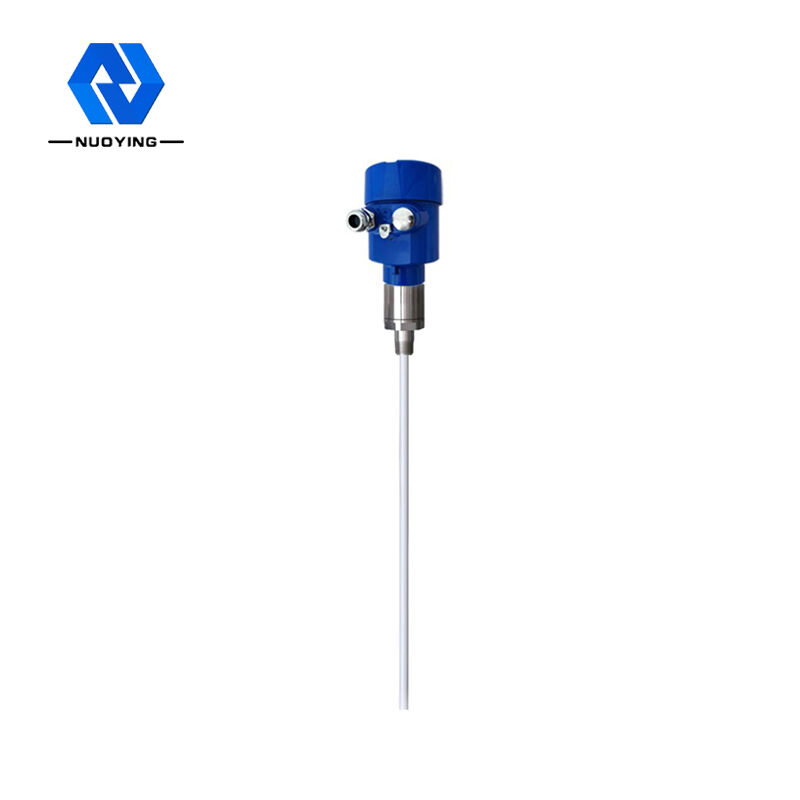

NYSP-Z16 Rf Admittance Level Meter
The NYSP-Z16 Rf admittance level meter is based on the principle of radio frequency admittance level measurement products continuously.The product has high stability, high sensitivity and wide applications, etc.Compared with the traditional capacitive material level meter, the use of modular design, can be concise and easily realize the instrument set, once set, can be normal use and free maintenance for life.Enables users to intuitive understanding of the running status of equipment, and deal with the problems in time, in the complex industrial occasions as well as safe and reliable.
Rf Admittance Level Meter Technical Parameter
| Applications | Liquid, corrosive liquid, insulating liquid |
| Probe type | Hard insulating rod |
| Measuring Range | 0~6m |
| Process temperature | -40～200℃ |
| Ambient temperature | -40 ℃ ~ + 70 ℃ |
| Storage temperature | -20 ℃ ~ + 65 ℃ |
| Process pressure | -0.1～4.0MPa |
| Power supply | (13-35)vDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process connection | Thread/Flange(selective) |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6(selective) |
| Delay: | 0 ~ 30 s adjustable |
※ Note: Products can be customized according to the specific requirements of users!
Rf Admittance Level Meter Operating Principle
Traditional capacitive material level meter, with the level rising, material covered probes, value of capacitance circuit between the probe and the medium (conductive material) or between the probe and the tube wall capacitance (insulation material) increases.Due to the change of level imbalance led to a capacitance bridge, so the change of capacitance value depends on the dielectric constant of the material being tested.Then through to the signal detection, amplification, and finally the corresponding signal output.Capacitive material level meter, however, there are some disadvantages, especially when the probe is hanging will seriously affect the measurement result.
Radio frequency admittance measurement technology is level measurement technology has unique advantages.Although with the general concept of capacitance measurement technology are similar, but the rf admittance technology in electronic unit joined the Driving - shields and chopping circuit, thus can realize impedance and capacitive reactance measurement alone.Through the calculation of the laws of physics, any material is equal to the size of the capacitive reactance of the impedance, so by the hanging can be measured and the influence of by phase-shifting oscillation circuit, remove from the total output.
Rf admittance level meter sensor installed in the loading of the tank, through the probe level change caused by the change of the rf signal.Driving - shields of probe end can prevent radiofrequency current formed by hanging loop, ensure the accuracy of the instrument measurement.
Rf admittance technology of high precision measurement results, and is not affected by the probe hanging, is currently the most widely used occasions a measurement technology.From low temperature to 100 ℃ to 800 ℃ high temperature, from vacuum to 6.3 MPa pressure situations, from ultra short range to large scale, can the normal application, and can be applied to different types of material.
