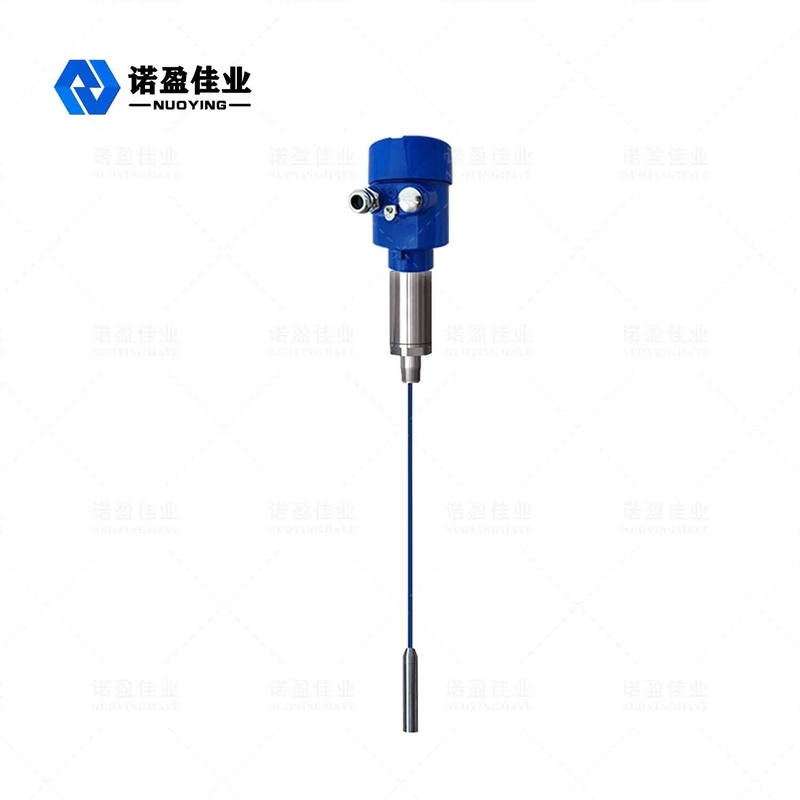

Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree

Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree
Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree

Large Image :  Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYSP-Z17
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $450 to $1700
Packaging Details: Export standard packing
Delivery Time: 5-7 work days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree

Description
Applications: Conductive Liquid, Conductive Solid Probe Type: Hard Insulating Rod
Measuring Range: 0~30m Process Connection: Screw Thread, Flange(optional),
Protection Grade: Display Instrument IP67, IP67 Operating Temperature: -40~800℃
Signal Output: 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) Power Supply: (13-35)vDC
High Light:

Conductive Solid RF Admittance Level Transmitter

,

RF Admittance Level Transmitter 4Mpa

,

4Mpa capacitive level transmitter

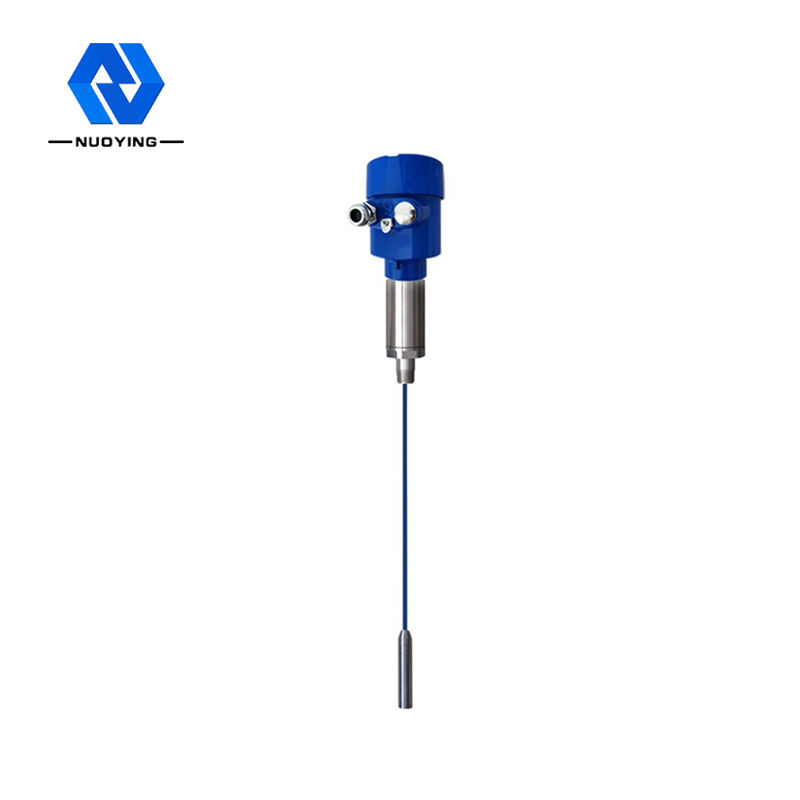

NYSP-Z17 Rf Admittance Level Meter​



Rf Admittance Level Meter Operating Principle



Traditional capacitive material level meter, with the level rising, material covered probes, value of capacitance circuit between the probe and the medium (conductive material) or between the probe and the tube wall capacitance (insulation material) increases.Due to the change of level imbalance led to a capacitance bridge, so the change of capacitance value depends on the dielectric constant of the material being tested.Then through to the signal detection, amplification, and finally the corresponding signal output.Capacitive material level meter, however, there are some disadvantages, especially when the probe is hanging will seriously affect the measurement result.



Rf Admittance Level Meter Technical Parameter



Applications Conductive liquid, conductive solid

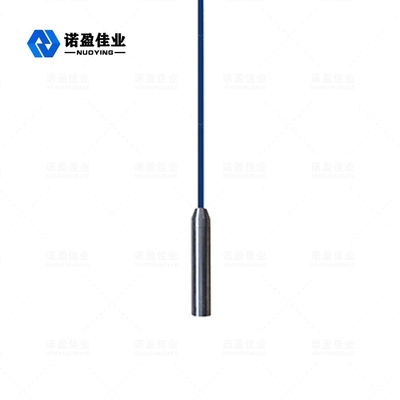

Probe type Soft rope
Measuring Range 0~30m
Process temperature -40~800℃
Ambient temperature -40 ℃ ~ + 70 ℃
Storage temperature -20 ℃ ~ + 65 ℃
Process pressure -0.1~4.0MPa
Power supply (13-35)vDC
Signal output 4...20mA/HART/RS485/Modbus...
Process connection Thread/Flange(selective)
Protection class IP67
Explosion-proof grade ExiaⅡCT6(selective)
Delay: 0 ~ 30 s adjustable



Note: Products can be customized according to the specific requirements of users!



Rf Admittance Level Meter Design Features



◎ The unique Driving - shields circuit design can improve the ability to resist hanging
No dead zone measurement, can be applied to more than ten or even a few cm level measurement occasions
The output of the stable and reliable, fly ash, blanking, water vapor, crystallization, wax
No activities, no easy worn parts, often without cleaning and maintenance, debugging

Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree 0

Rf Admittance Level Meter Installation requirements



Note:



  • Probe measurement part cannot run into the tank wall, is apart from the tank wall distance is greater than 600 mm as well.
  • When the tank has a strong stirring, should place the probe bottom fixed and to probe from blender to ensure safety.
  • The instrument must be reliable grounding.
  • Probe cannot be installed on the filling mouth (or channel) or other materials directly through the place.If unable to do this, it is the probe to add partition between filling mouth (or slots).
  • Instrument installed hard pole probe must be considered when space.Cable type probe after installation to straighten, avoid short circuit with tank wall.
  • The installation must be very careful, don't damage the probe insulation layer.Probe center side and shielding layer and installation interface or contact with the walls, and avoid the probe in use process and installation interface, the container wall, material and other mechanical wear and tear.
  • Instrument convenient cannot have water, otherwise it will endanger the instrument electronic unit.



Conductive Solid Liquid RF Admittance Level Transmitter 4Mpa Minus 40 To 800 Degree 1
