|Applications:||Conductive Liquid, Interface||Probe Type:||Insulated Flexible Cables|
|Measuring Range:||0~30m||Process Connection:||Screw Thread, Flange(optional),|
|Protection Grade:||Display Instrument IP67, IP67||Operating Temperature:||-40～150℃|
|Signal Output:||4-20mA/HART(Two Wire/FOUR Wire)||Power Supply:||（13-35）vDC|
RF Continuous Level Transmitter,
Continuous Level Transmitter Insulated Flexible,
RF interface Level Transmitter

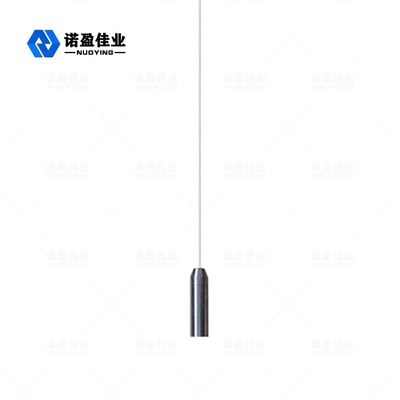

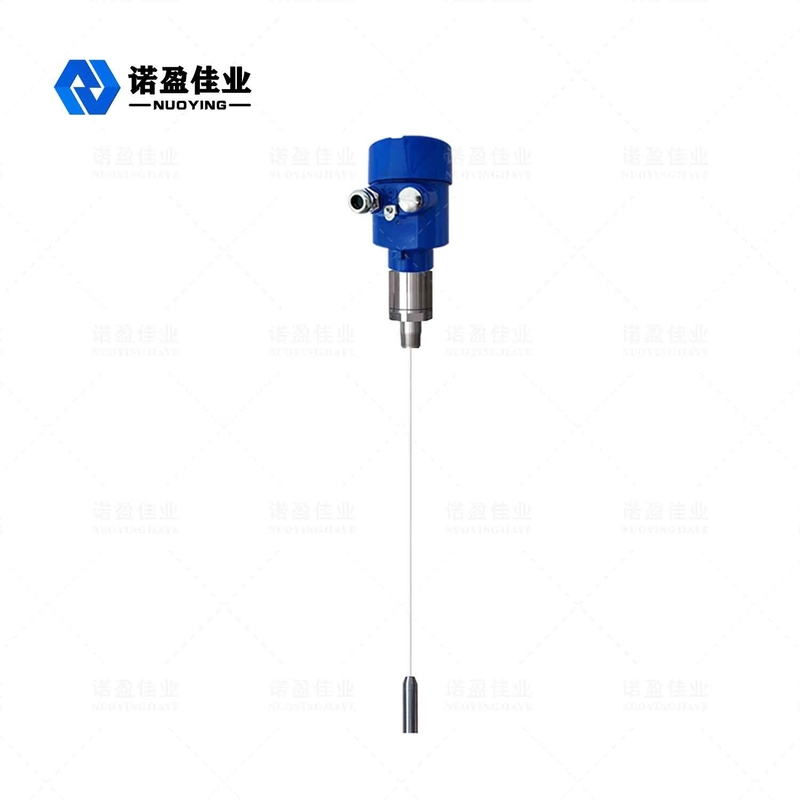

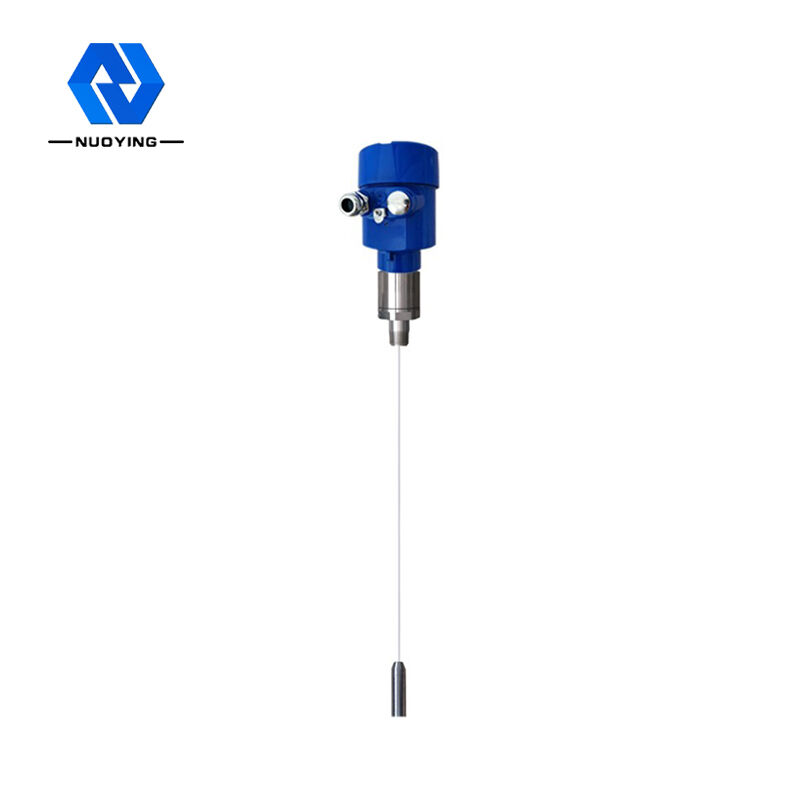

NYSP-Z19 Rf Admittance Level Meter
Rf admittance level meter is a universal level meter used for continuous level measurement, the product is used in industrial and mining site, suitable for most applications, the instrument is composed of a circuit unit, a set of explosion-proof housing and rod type or cable type sensing elements, sensors have a variety of models available, the instrument can be selected as a whole or separate installation.
Rf Admittance Level Meter Technical Parameter
|Applications||Conductive liquid, interface|
|Probe type||Insulated flexible cables|
|Ambient temperature||-40 ℃ ~ + 70 ℃|
|Storage temperature||-20 ℃ ~ + 65 ℃|
|Delay:||0 ~ 30 s adjustable|
※ Note: Products can be customized according to the specific requirements of users!
Rf Admittance Level Meter Operating Principle
Traditional capacitive material level meter, with the level rising, material covered probes, value of capacitance circuit between the probe and the medium (conductive material) or between the probe and the tube wall capacitance (insulation material) increases.Due to the change of level imbalance led to a capacitance bridge, so the change of capacitance value depends on the dielectric constant of the material being tested.Then through to the signal detection, amplification, and finally the corresponding signal output.Capacitive material level meter, however, there are some disadvantages, especially when the probe is hanging will seriously affect the measurement result.
Radio frequency admittance measurement technology is level measurement technology has unique advantages.Although with the general concept of capacitance measurement technology are similar, but the rf admittance technology in electronic unit joined the Driving - shields and chopping circuit, thus can realize impedance and capacitive reactance measurement alone.Through the calculation of the laws of physics, any material is equal to the size of the capacitive reactance of the impedance, so by the hanging can be measured and the influence of by phase-shifting oscillation circuit, remove from the total output.
Rf admittance level meter sensor installed in the loading of the tank, through the probe level change caused by the change of the rf signal.Driving - shields of probe end can prevent radiofrequency current formed by hanging loop, ensure the accuracy of the instrument measurement.
Rf admittance technology of high precision measurement results, and is not affected by the probe hanging, is currently the most widely used occasions a measurement technology.From low temperature to 100 ℃ to 800 ℃ high temperature, from vacuum to 6.3 MPa pressure situations, from ultra short range to large scale, can the normal application, and can be applied to different types of material.
