|Applications:||Liquid，corrosive Liquid, Split-mounted||Probe Type:||PTFE (optional)|
|Measuring Range:||Rod：0~6m, Cable：0~20m||Process Connection:||Screw Thread, Flange(optional),|
|Protection Grade:||Display Instrument IP67, IP67||Operating Temperature:||-40～130℃,-40～260℃,-184～260℃|
|Signal Output:||4-20mA, 4-20mA/HART(Two Wire/FOUR Wire)||Power Supply:||24VDC, 220VAC|
6m RF Capacitance Level Sensor,
Corrosive Liquid Capacitive Level Transmitter,
6m RF Capacitive Level Switch

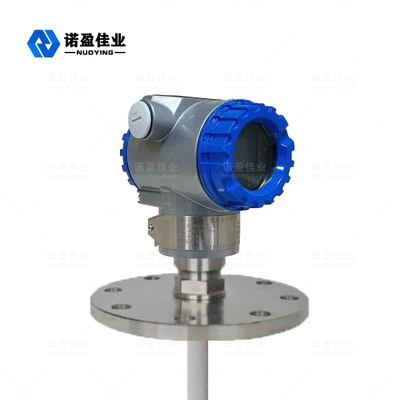

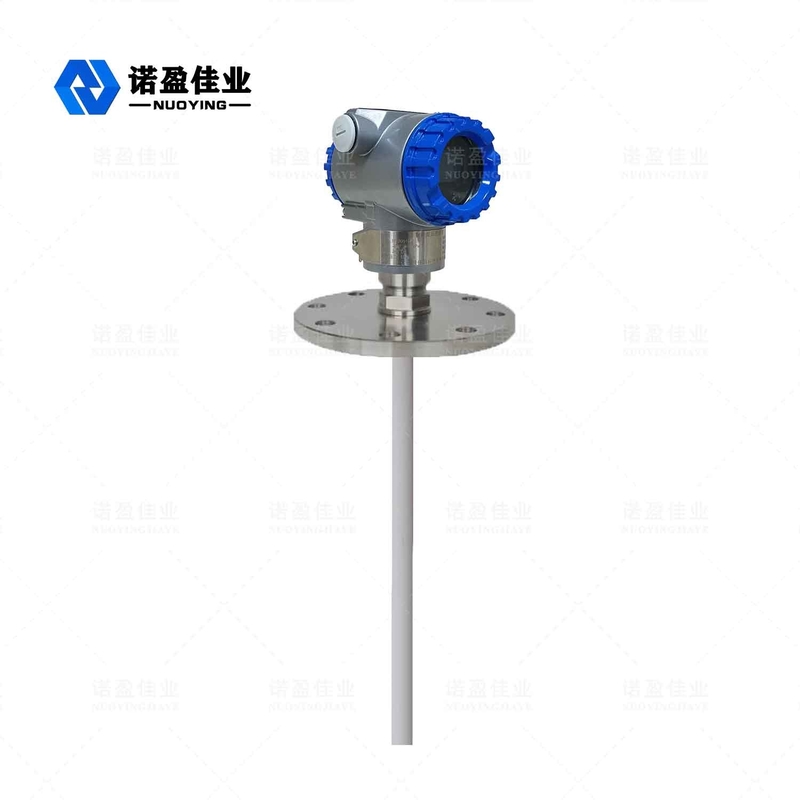

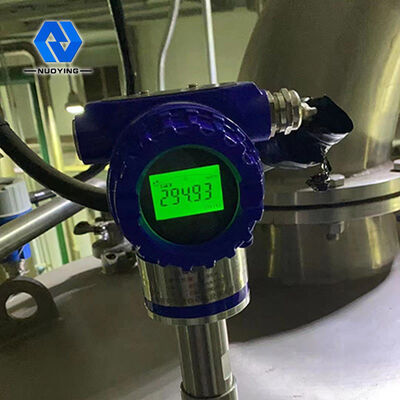

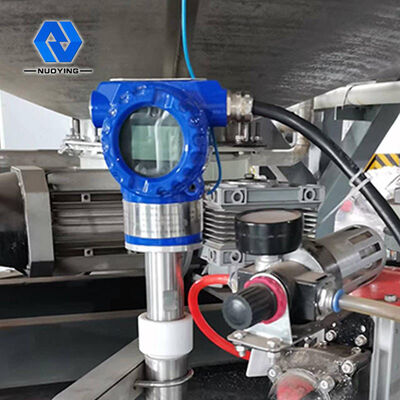

NYDR-3051 RF Capacitance Liquid Level Meter
NYDR-3051 RF Capacitance Liquid Level Meter Operating Principle
The working principle of NYDR-3051 RF capacitance liquid level meter is based on RF (RF) capacitance technology. A radio frequency is applied to the probe to determine the impact of the surrounding environment through continuous analysis. Because all the materials have dielectric constant and their conductivity is different from that of air, the total impedance of the probe is changed because of the small capacitance deviation when the probe is in contact with the material. Because the electric probe and the wall of the container form the two polar plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material. When air (dielectric constant 1.0) is replaced by any other material (dielectric constant > 1.0) The change of capacitance caused the change of impedance. This effect is measured by the circuit and compared with the reference set up by the sensitivity setting (circuit).
NYDR-3051 RF Capacitance Liquid Level Meter Technical Parameter
|Applications||Liquid, corrosive liquid, split-mounted|
|Probe type||PTFE,304,316 (optional)|
|Measuring Range||Rod:0~6m, Cable:0~20m|
|Ambient temperature||-40 ℃ ~ + 80 ℃|
|Time delay||0 〜30s continuous adjustable|
|Power supply||24vDC, 220VAC|
|Power loss protection||high and low mode, Field|
※ Note: Products can be customized according to the specific requirements of users!
NYDR-3051 RF capacitance liquid level meter antenna using PTFE material, PTFE (PTFE or PTFE), commonly known as "plastics king", is made up of tetrafluoroethylene by the polymerization of polymer compounds, it has excellent chemical stability, high corrosion resistance, sealing, lubrication is not sticky, electric insulation and good anti-aging endurance, PTFE has the following features:
NYDR-3051 RF Capacitance Liquid Level Meter Design Features

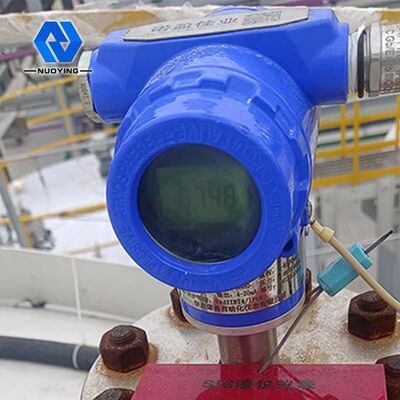

NYDR-3051 RF Capacitance Liquid Level Meter Application field
Capacitive level meter can be used for continuous level measurement of almost all strong, weak corrosion resistant and non-corrosive media in open or pressxire vessels. Widely used in: Petroleum, Chemical, Fertilizer, Metallurgy, Natural Gas, Power Plant, Machinery Manufacturing, ship, Pharmaceutical Factory, sewage treatment, Food, Liquor and other industrial occasions of liquid level detection and control.
