Product Details:
|
| Material: | SS 304 | Measuring Range: | 0-150ºC |
|---|---|---|---|
| Accuracy Class: | 1.5 | Window: | Glass |
| Response Time: | ≤40s | Dial Size: | 60mm |
| Connection: | Thread | Waranty: | One Year |
| High Light: | 60mm Dial Bimetal Temperature Gauge,Bimetal Temperature Gauge 1.5 Accuracy,SS304 bimetal thermocouple |
||

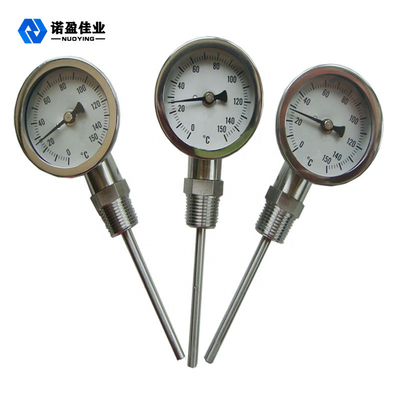

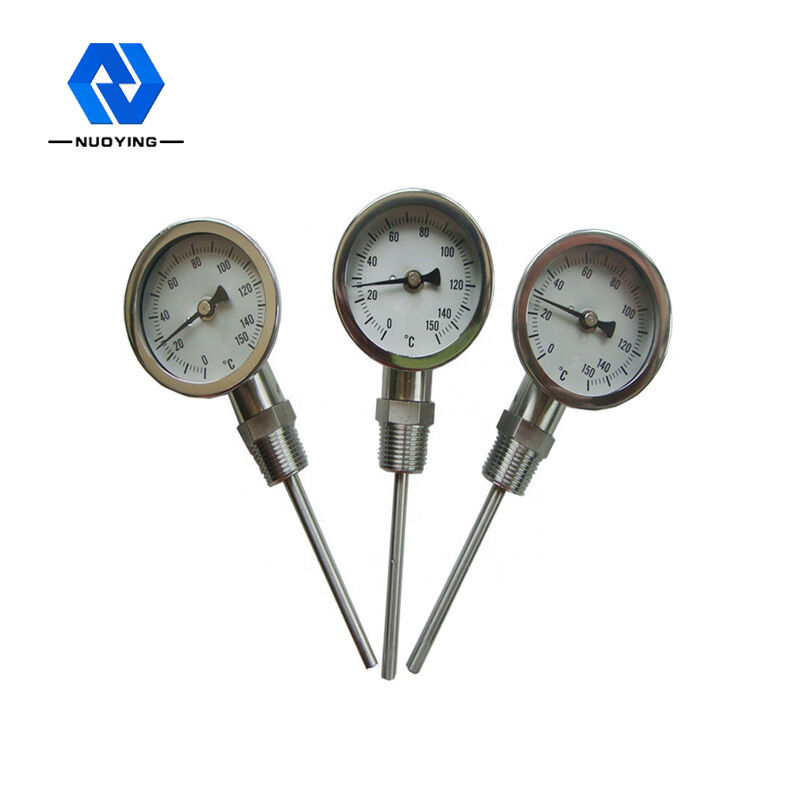

Stainless Bimetal Thermometer Temperature Gauge
Stainless Bimetal Thermometer Temperature Gauge Description:
Bimetallic thermometer is a kind of on-site measuring instrument for measuring medium and low temperature. It can directly measure the temperature of liquid vapor and gas medium in the range of -80°C-+500°C in various production processes. The main component of an industrial bimetallic thermometer is a multi-layer metal sheet consisting of two or more metal sheets laminated together, using the principle that two different metals expand differently when the temperature changes. It is based on a bimetallic strip wound into a loop shape. When one end is heated to expand, the pointer is rotated, and the working instrument shows the temperature value of the thermoelectric potential.
Stainless Bimetal Thermometer Temperature Gauge Features:
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
Stainless Bimetal Thermometer Temperature Gauge Technical Parameters:
Back Install Bimetallic thermometer
| Model | Temperature range ℃ | Accuracy | Protection tube material | Specifications | Install | |
| D | L | |||||
| WSS-300 |
-80-+40 0-80 0-100 0-150 0-200 0-400 0-500
|
1．0 |
1Cr18Ni9Ti 304 316 316L HastelloyC-276 |
Φ60 |
75 100 150 200 300 400 500 750 1000
|
No |
| WSS-400 | Φ100 | |||||
| WSS-500 | Φ150 | |||||
| WSS-301 | Φ60 | Movable external thread | ||||
| WSS-401 | Φ100 | |||||
| WSS-501 | Φ150 | |||||
| WSS-302 | Φ60 | Movable internal thread | ||||
| WSS-402 | Φ100 | |||||
| WSS-502 | Φ150 | |||||
| WSS-303 | Φ60 | Fixed thread | ||||
| WSS-403 | Φ100 | |||||
| WSS-503 | Φ150 | |||||
| WSS-304 | Φ60 | Fixed flange | ||||
| WSS-404 | Φ100 | |||||
| WSS-504 | Φ150 | |||||
| WSS-305 | Φ60 | Ferrule thread | ||||
| WSS-405 | Φ100 | |||||
| WSS-505 | Φ150 | |||||
| WSS-306 | Φ60 | Ferrule flange | ||||
| WSS-406 | Φ100 | |||||
| WSS-506 | Φ150 | |||||
Bottom Install Bimetallic thermometer
| Model | Temperature range℃ | Accuracy | Protection tube material | Specifications(mm) | Install | |
| D | L | |||||
| WSS-310 |
-80-+40 0-80 0-100 0-150 0-200 0-400 0-500
|
1．0 |
1Cr18Ni9Ti 304 316 316L HastelloyC-276 |
Φ60 |
75 1 00 150 200 300 400 500 750 1000
|
No |
| WSS-410 | Φ100 | |||||
| WSS-510 | Φ150 | |||||
| WSS-311 | Φ60 | Movable external thread | ||||
| WSS-411 | Φ100 | |||||
| WSS-511 | Φ150 | |||||
| WSS-312 | Φ60 | Movable internal thread | ||||
| WSS-412 | Φ100 | |||||
| WSS-512 | Φ150 | |||||
| WSS-313 | Φ60 | Fixed thread | ||||
| WSS-413 | Φ100 | |||||
| WSS-513 | Φ150 | |||||
| WSS-314 | Φ60 | Fixed flange | ||||
| WSS-414 | Φ100 | |||||
| WSS-514 | Φ150 | |||||
| WSS-315 | Φ60 | Ferrule thread | ||||
| WSS-415 | Φ100 | |||||
| WSS-515 | Φ150 | |||||
| WSS-316 | Φ60 | Ferrule flange | ||||
| WSS-416 | Φ100 | |||||
| WSS-516 | Φ150 | |||||
135 angle Install Bimetallic thermometer
| Model | Temperature range℃ | Accuracy | Protection tube material | Specifications(mm) | Install | |
| D | L | |||||
| WSS-420 |
-80-+40 0-80 0-100 0-150 0-200 0-400 0-500
|
1．0 |
1Cr18Ni9Ti 304 316 316L HastelloyC-276
|
Φ100 |
75 100 150 200 300 400 500 750 1000
|
No |
| WSS-520 | Φ150 | |||||
| WSS-421 | Φ100 | Movable external thread | ||||
| WSS-521 | Φ150 | |||||
| WSS-422 | Φ100 | Movable internal thread | ||||
| WSS-522 | Φ150 | |||||
| WSS-423 | Φ100 | Fixed thread | ||||
| WSS-523 | Φ150 | |||||
| WSS-424 | Φ100 | Fixed flange | ||||
| WSS-524 | Φ150 | |||||
| WSS-425 | Φ100 | Ferrule thread | ||||
| WSS-525 | Φ150 | |||||
| WSS-426 | Φ100 | Ferrule flange | ||||
| WSS-526 | Φ150 | |||||
Universal type Bimetallic thermometer
| Model | Temperature range℃ | Accuracy | Protection tube material | Specifications | Install | |
| D | L | |||||
| WSS-480 |
-80-+40 0-80 0-100 0-150 0-200 0-400 0-500
|
1．0 |
1Cr18Ni9Ti 304 316 316L HastelloyC-276
|
Φ100 |
75 100 150 200 300 400 500 750 1000
|
No |
| WSS-580 | Φ150 | |||||
| WSS-481 | Φ100 | Movable external thread | ||||
| WSS-581 | Φ150 | |||||
| WSS-482 | Φ100 | Movable internal thread | ||||
| WSS-582 | Φ150 | |||||
| WSS-483 | Φ100 | Fixed thread | ||||
| WSS-583 | Φ150 | |||||
| WSS-484 | Φ100 | Fixed flange | ||||
| WSS-584 | Φ150 | |||||
| WSS-4285 | Φ100 | Ferrule thread | ||||
| WSS-585 | Φ150 | |||||
| WSS-486 | Φ100 | Ferrule flange | ||||
| WSS-586 | Φ150 | |||||
