Product Details:
|
| Material: | SS | Measuring Range: | 0-200ºC |
|---|---|---|---|
| Accuracy Class: | 1.0 | Window: | Glass |
| Response Time: | ≤40s | Dial Size: | 100mm,150mm |
| Connection: | Thread,Flange | Waranty: | One Year |
| Highlight: | SS bimetallic dial thermometer,bimetallic dial thermometer 150mm,150mm bi metal temperature gauge |
||

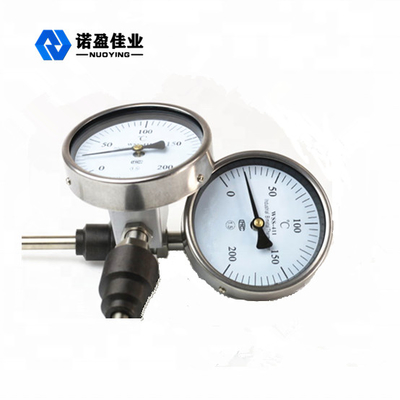

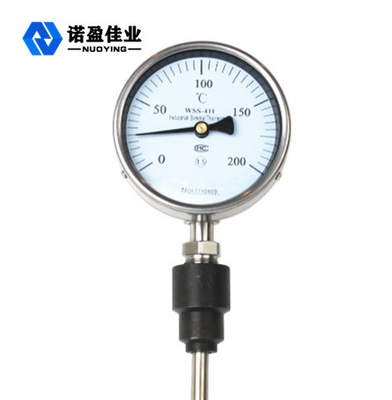

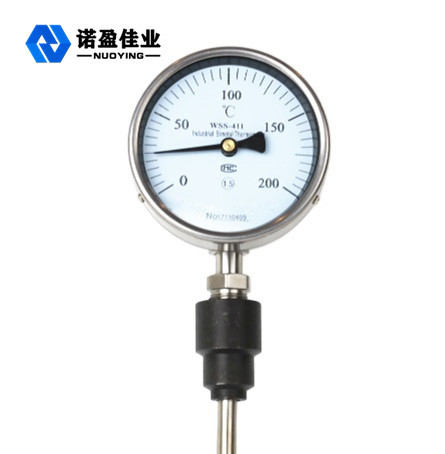

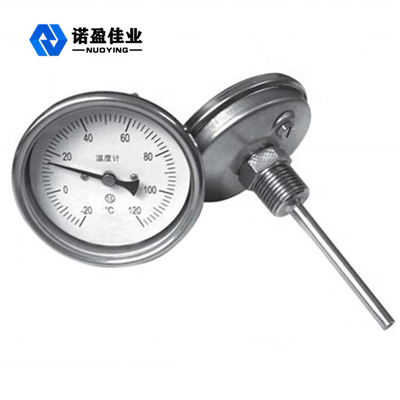

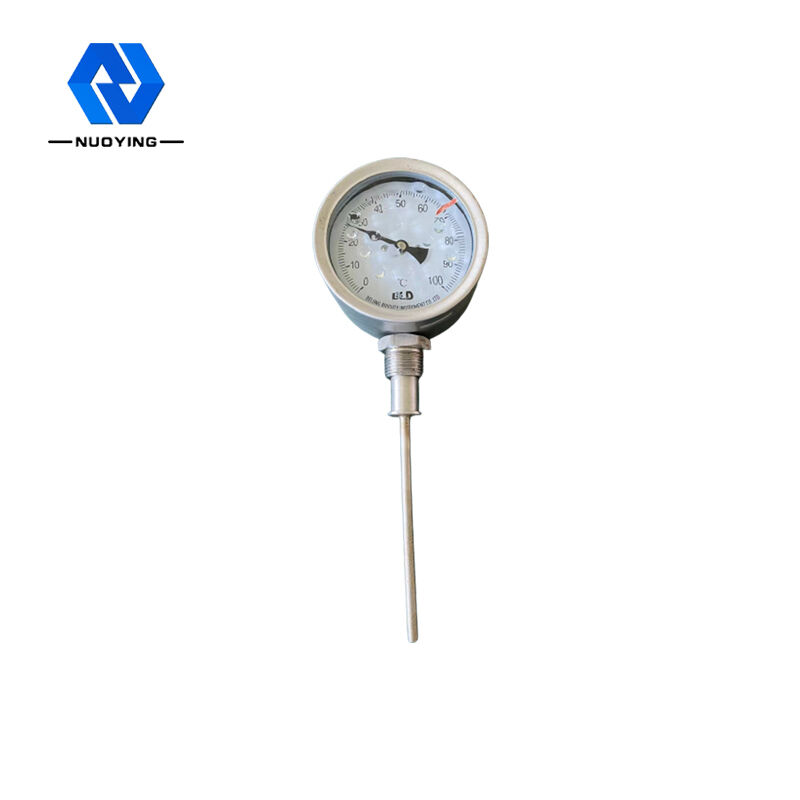

Hydraulic Oil Bimetallic Thermometer
Hydraulic Oil Bimetallic Thermometer Description:
Hydraulic Oil Bimetallic thermometer is a kind of on-site measuring instrument for measuring medium and low temperature. Bimetallic thermometer can directly measure the temperature of liquid vapor medium in the range of -40°C-+500°C in various production processes. The main component of a bimetallic thermometer is a multi-layer metal sheet consisting of two or more metal sheets laminated together, using the principle that two different metals expand differently when the temperature changes. Hydraulic Oil Bimetallic thermometer based on a bimetallic strip wound into a loop shape. When one end is heated to expand, the pointer is rotated, and the working instrument shows the temperature value of the thermoelectric potential.
Hydraulic Oil Bimetallic Thermometer Technical Parameters:
Back Install Bimetallic thermometer
| Model | Temperature range ℃ | Accuracy | Protection tube material | Specifications | Install | |
| D | L | |||||
| WSS-300 |
-80-+40 0-80 0-100 0-150 0-200 0-400 0-500
|
1．0 |
1Cr18Ni9Ti 304 316 316L HastelloyC-276 |
Φ60 |
75 100 150 200 300 400 500 750 1000
|
No |
| WSS-400 | Φ100 | |||||
| WSS-500 | Φ150 | |||||
| WSS-301 | Φ60 | Movable external thread | ||||
| WSS-401 | Φ100 | |||||
| WSS-501 | Φ150 | |||||
| WSS-302 | Φ60 | Movable internal thread | ||||
| WSS-402 | Φ100 | |||||
| WSS-502 | Φ150 | |||||
| WSS-303 | Φ60 | Fixed thread | ||||
| WSS-403 | Φ100 | |||||
| WSS-503 | Φ150 | |||||
| WSS-304 | Φ60 | Fixed flange | ||||
| WSS-404 | Φ100 | |||||
| WSS-504 | Φ150 | |||||
| WSS-305 | Φ60 | Ferrule thread | ||||
| WSS-405 | Φ100 | |||||
| WSS-505 | Φ150 | |||||
| WSS-306 | Φ60 | Ferrule flange | ||||
| WSS-406 | Φ100 | |||||
| WSS-506 | Φ150 | |||||
Hydraulic Oil Bimetallic Thermometer Features:
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Hydraulic Oil Bimetallic Thermometer Applaction:
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene
