Product Details:
|
| Material: | PP | Color: | Blue |
|---|---|---|---|
| Output: | 4-20mA(2 Wires)/0-5V/0-10V/0.5-4.5V | Power Supply: | 12-36VDC |
| Range: | -50-300 ℃ | Accuracy: | 0.5%, 1% |
| Voltage Type Load: | ≥100kΩ | Hart Protocol: | Optional |
| Application: | Thermocouple | Warranty: | One Year |
| High Light: | Blue RTD Temperature Transmitter,4.5V Temperature Transmitter Sensor PT100,4.5V pt100 temperature sensor transmitter |
||

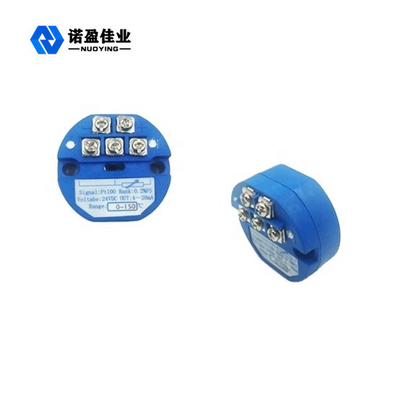

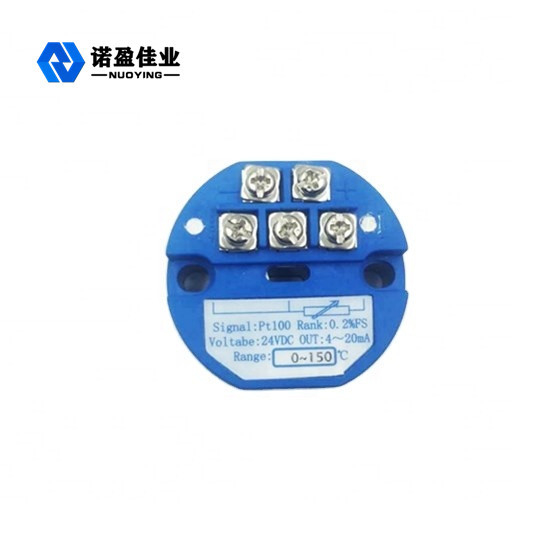

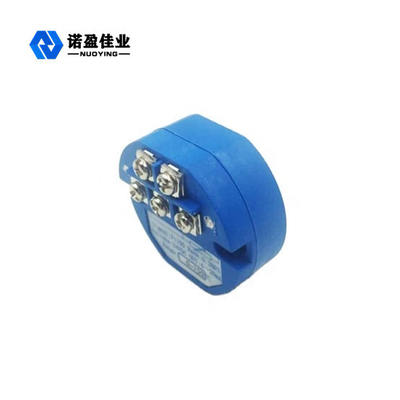

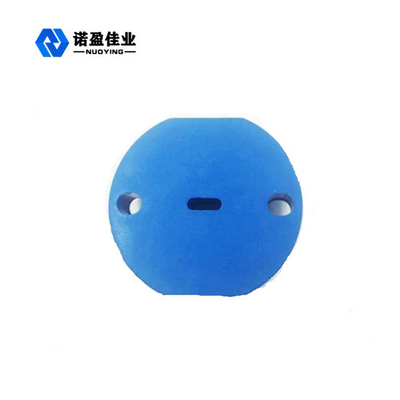

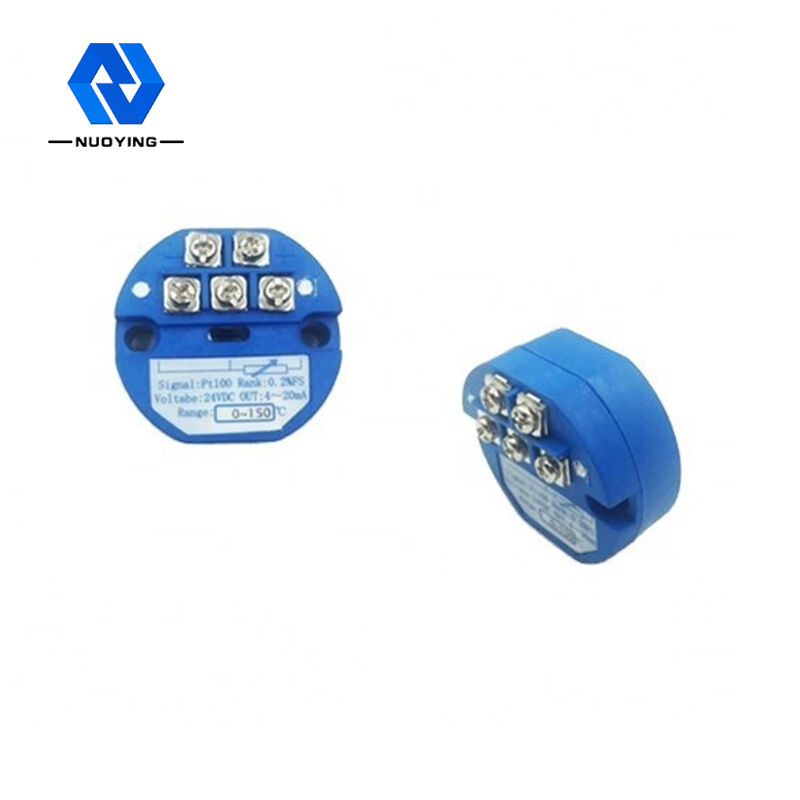

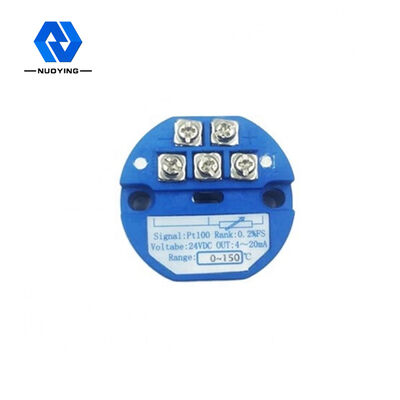

PT100 RTD Temperature Transmitter Sensor
PT100 RTD Temperature Transmitter Sensor Description:
This RTD temperature transmitter sensor resistance plc temperature control module support four kinds thermal resistance of PT50, PT100, PT500, PT1000 and eight kinds thermocouple of E, J, B, K, N, R, S, T..
PT100 RTD Temperature Transmitter Sensor Technical Parameters:
| Name | PT100 RTD Temperature Transmitter Sensor |
| Range | depend on sensor (Standard 0-50℃, 0-100℃, 0-150℃, 0-200℃, 0-300℃, 0-400℃, -50-50℃) |
| Power supply | 24VDC |
| Environmental temp | |
| Output | 4～20mA, 0-5V, 0-10V |
| Environmental temperature | -40～+85℃ |
| Storage temperature | -40～+100℃ |
| Protection gradeSeal | IP00,IP66(Installation) |
| Accuracy | ±0.2%FS |
| Protection | IP65 or IP67 High magnetic compatibility |
| Stability | ± 0.1% FS / Year |
PT100 RTD Temperature Transmitter Sensor Features:
①0.1% High accuracy
②Multiple signal inputs
③Comes with USB connection
④The input range can be adjusted
PT100 RTD Temperature Transmitter Sensor Wiring diagram:
