Product Details:
|
| Output: | 4-20mA | Flange Standard: | GB/T 9119-2010, DIN, ANSI, JIS |
|---|---|---|---|
| Accuracy: | 0.5% | Medium: | Liquid,fuel ,diesel, Oil |
| Operating Temperature: | -20℃~+80℃ | Atmospheric Pressure: | 800Kpa |
| Highlight: | DN200 Turbine Flow Sensor,Turbine Flow Sensor 800Kpa,800Kpa turbine water flow meter |
||

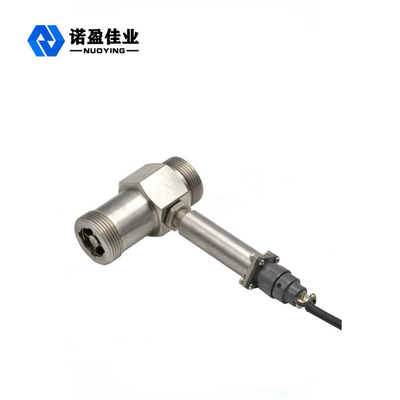

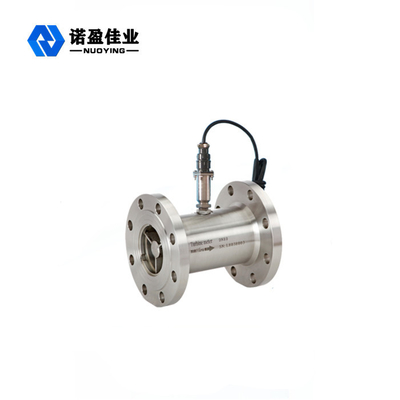

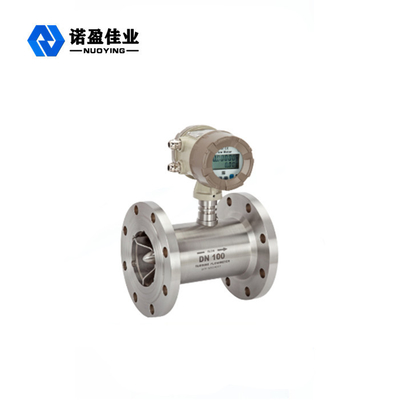

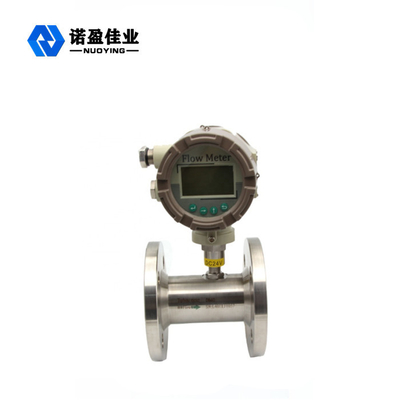

Digital Output Turbine Marine Use Engine Oil Flowmeter
Digital Output Turbine Marine Use Engine Oil Flowmeter Description:
Digital Output Turbine Marine Use Engine Oil Flowmeter is a new generation turbine flow meter which was designed with advanced flow technologies both home and aboard. The product possesses advantages of simple structure, light in weight, high accuracy, good repeatability, short response time, easy installation, etc. It could be used widely in measurement of closed pipe system for pure liquid that will not react with 1Cr18Ni9Ti, 2Cr13, Al2O3 and hard alloys.
Digital Output Turbine Marine Use Engine Oil Flowmeter Parameters:
| Item | Data |
| Medium | Non-corrosive low velocity liquid without impurity,not suitable for gas/steam |
| Accuracy | Class 0.5 |
| Flange standard | GB/T 9119-2010, DIN, ANSI, JIS |
| Output | 4-20mA analog output, RS485 (Modbus-RTU protocol), HART |
| Diameter and installation | Flange connection DN15-DN200 |
| Screw connection: DN4-DN50 | |
| Loose flange connection: DN4-DN200 | |
| Medium temperature | Default type T1: -20℃~+80℃ (Standard) |
| High temp. type T2: -20℃~+120℃ (OEM) | |
| High temp. type T3: -20℃~+150℃(OEM) | |
| Operation condition | Operating temperature: -20℃~+60℃ |
| Related humidity: 5%~90% | |
| Atmospheric pressure: 86kPa~106kPa | |
| Ingress protection | IP65 |
| Explosion proof | ExdIIBT6 (explosion proof type) |
Digital Output Turbine Marine Use Engine Oil Flowmeter Features:
Require the media to clean, to install the filter
Advantages of the instrument
High accuracy, generally up to ± 0.5% R, ± 1.0% R
Good repeatability, short-term repeatability of up to 0.05% - 0.2%
Compact and compact, easy installation and maintenance
High pressure level
Pressure loss is small, strong circulation
Anti-vibration performance
