Product Details:
|
Type: | Stainless Steel Flowmeter | Medium: | Liquid |
---|---|---|---|
Output: | RS485 | Power Supply: | 24V |
Temperature: | Below Zero 20℃~zero On 120℃ | Material: | SS304 |
Highlight: | 20ma Stainless Steel Water Flow Meter,Water Flow Meter Flange Type RS485,RS485 SS flow meter |

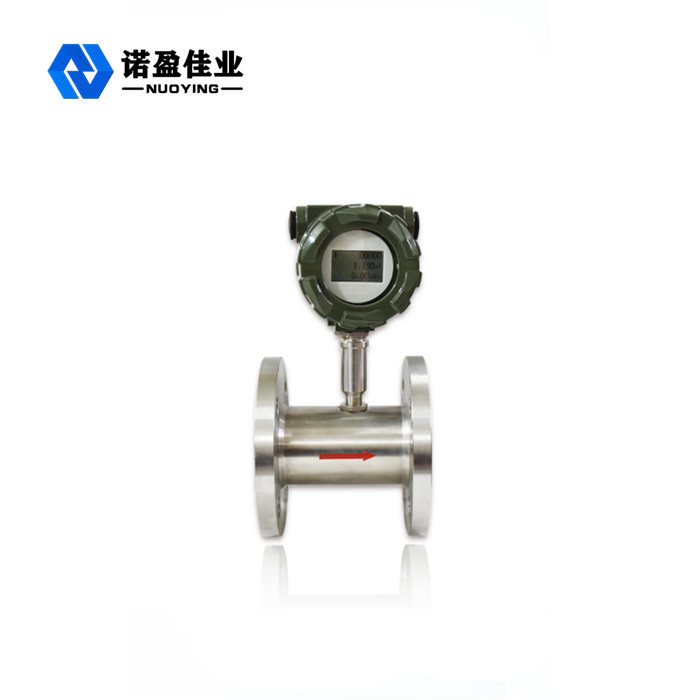

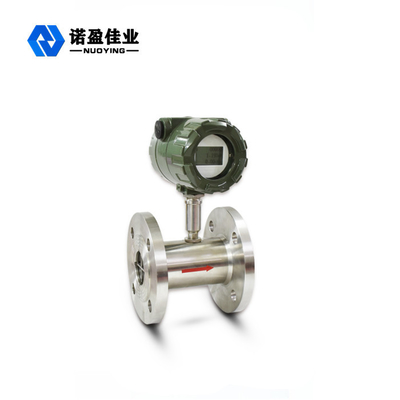

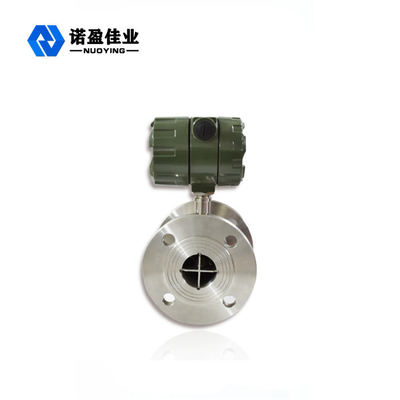

4-20ma Output Flange Type Stainless Steel Liquid Flowmeter Water Turbine Flow Meter
4-20ma Output Flange Type Stainless Steel Liquid Flowmeter Water Turbine Flow Meter Description:
Turbine Flow Meter (Abbr. TUF) is a main type of Impeller Flowmeter also including the Anemoscope and Water meter. TUF is made up of Sensor and Conversion-Show. The Sensor reacts to the average velocity of fluid with multi-blades rotor so as to speculating the flow value and the accumulative flow value. The velocity (or circles) of rotor can be picked up by the way of mechanism, electromagnetic induction, photo electricity, before displaying and transmitting the records by reading device.
Turbine Flowmeter draw the leading technology integrating with advanced design to produce the new generation of turbine flowmeter with the features of simple structure, light weight, high accuracy, good repeatability, flexible reaction, convenient installation/maintenance/application etc.. It is widely applied to measuring the liquid of which kinematic viscosity is under 5*10-6m2/s and have no impurity of fiber, grain etc., and no corrosive interaction with the stainless steel 1Cr18Ni9Ti,2Cr13,and A12O3, and hard alloy in seal pipes. The liquid of kinematic above 5*10-6m2/s can be measured after real liquid calibration of flowmeter. It can be used in value control, siren when excess, if co-ordination with special display instrument. So it is the ideal instrument of measuring flow value and saving energy.
4-20ma Output Flange Type Stainless Steel Liquid Flowmeter Water Turbine Flow Meter Parameters:
Model | NYLWGY-N | NYLWGY-A | NYLWGY-N Explosion type | NYLWGY-A Explosion type | NYLWGY-B | NYLWGY- C |
Signal output | pulse | 4-20mA | pulse | 4-20mA | without | 4-20mA/pulse |
Power supply | +24VDC±15% | +24VDC±15% | 24VDC±15% | 24VDC±15% | lithium battery | 24VDC±15% |
Accuracy | 1.0~0.5 | 1.0~0.5 | 1.0~0.5 | |||
Measuring range | Standard | Standard | Standard or extended | |||
Monitor | without | without | within | |||
Communication Interface | without | without | RS485 | |||
Material | stainless steel | stainless steel | stainless steel | |||
Explosion | without | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 | |||
Protection class | IP60 | IP65 | IP65 | |||
Power consumption | <1W | <1W | <1W | |||
Instrument pass through | DN4~DN250 | DN4~DN250 | DN4~DN250 | |||
Medium temperature | -20℃~120℃ | -20℃~120℃ | -20℃~120℃ | |||
Ambient temperature | -30℃~60℃ | -30℃~60℃ | -30℃~60℃ |
4-20ma Output Flange Type Stainless Steel Liquid Flowmeter Water Turbine Flow Meter Parameters:
1.High accuracy (regular accuracy±1%R, ±0.5%R, highest accuracy±0.2% R);
2.Good repeatability (short-term one reaches 0.05%--0.2%), priority to be used in trade settlement for its extremely high accuracy in the regular calibration or on-line calibration.
3.Pulse frequency signal output is applicable to totality calculation and computer connection with no zero drift and strong anti-interference capacity.
4.High frequency (3-4kHz) can be achieved, and has high resolution.
5.Wide range ratio: medium or large diameter may reach 1:20, and small diameters are 1:10.
6.Compact and light weight structure, convenient installation and maintenance, extensive application ability.
7.Application to high pressure measurement with its unnecessary opening hole to be made into high pressure instruments.
8.Complete tailored version sensors can be designed to different kinds of types according to users special needs. For instance, low temperature type, high pressure type, sanitary type, etc.
9.Insertion type can be made, that is applicable to large normal diameters measurement for its little pressure loss, low price, unnecessary s ping flow to take out it, and convenient installation and maintenance.
