Product Details:
|
| Material: | Stainless Steel | Accuracy: | 0.5% |
|---|---|---|---|
| Type: | Variable Area Water Flowmeters | Display: | LCD |
| Connection: | Flange | Medium: | Non Corrosive Liquid |
| High Light: | LCD Mechanical Turbine Flow Meter,digital water flow meter 2 inch,3.6V Oil Flow Meter |
||

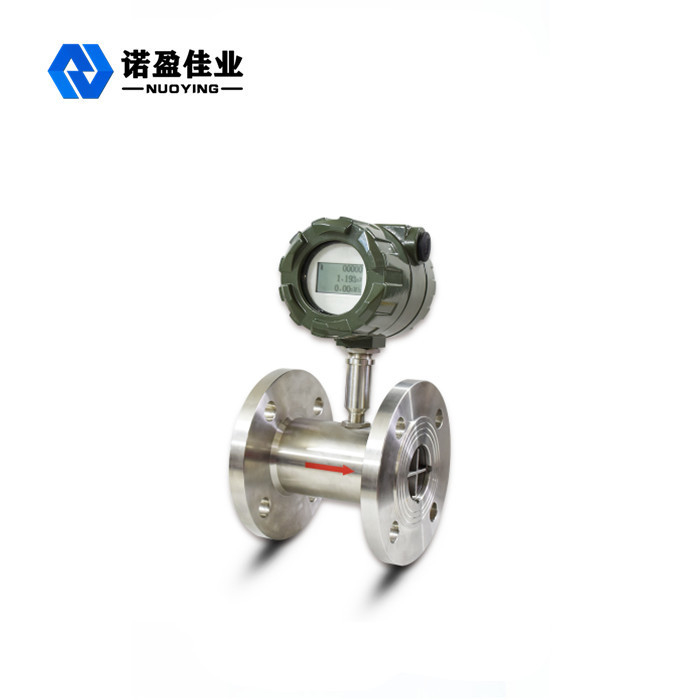

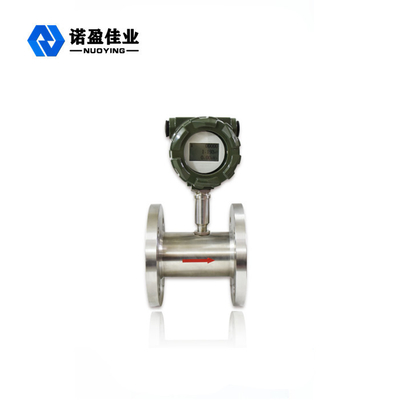

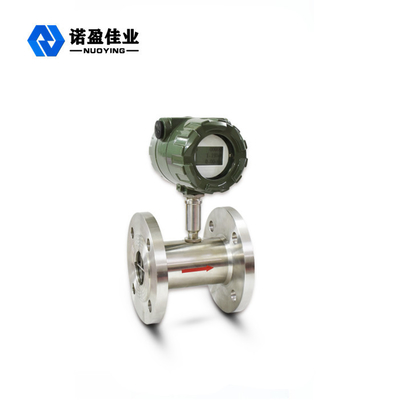

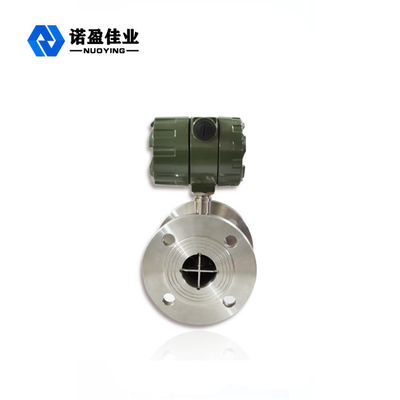

LCD Digital Pulse 2 Inch Fuel Oil Mechanical Water Alcohol Liquid Turbine Flow Meter
LCD Digital Pulse 2 Inch Fuel Oil Mechanical Water Alcohol Liquid Turbine Flow Meter Description:
Liquid turbine flow meter is widely used in petroleum, chemical industry, electric power, metallurgy, urban liquid supply measuring various liquid flow rate, is the oil Field and city liquid distribution measurement and trade measurement of the preferred products.The liquid turbine flowmeter is an optimized design that absorbs domestic and foreign flow instrument cash technology. It has the advantages of simple structure, high accuracy, and convenient installation and maintenance.Used to measure the low-viscosity liquids in closed conduits instantaneous volume flow and volume in petroleum, chemical industry, metallurgy, aviation and scientific research departments have been widely used.
LCD Digital Pulse 2 Inch Fuel Oil Mechanical Water Alcohol Liquid Turbine Flow Meter Parameters:
| Main power | DC24V / 3.6V Litthuim Battery | |
| Caliber&connection | Thread connection: DN4,6,10,15,20,25,32,40; | |
| Flange connection: DN (15,20,25,32,40)50,65,80,100,125,150,200; | ||
| Accuracy | ±0.1%,±0.5%,±0.2%(Optional) | |
| Range ratio | 1:10;1:15;1:20 | |
| Sensor material | SS304 stainless steel,SS316(L)stainless steel,etc. | |
| Woring temperature | Medium temperature:-20℃~+120℃ | |
| Ambient temperature:-20℃~+20℃ | ||
| Relative humidity:5%~90% | ||
| Atmospheric pressure:86KPA~106KPA | ||
| Signal output | Pulse ,4~20ma | |
| Communication output | RS485,HART | |
| Protection Class | IP65 or higher (Can be customized) | |
| Ex-proof grade | ExiaΙΙCT4 or ExdΙΙBT6 | |
LCD Digital Pulse 2 Inch Fuel Oil Mechanical Water Alcohol Liquid Turbine Flow Meter Features:
1.High accuracy, generally up to ± 1% R, ± 0.5% R, high precision type can reach ± 0.2% R.
2.Good repeatability, short-term repeatability can reach 0.05 ~ 0.2%, it is the preferred flow meter in trade settlement.
3.Output pulse frequency signal, suitable for total measurement and computer connection, strong anti-interference ability.
4.Wide range, medium and large caliber up to 1:20, small caliber up to 1:10.
5.Compact and lightweight structure, easy installation and maintenance, large circulation capacity.
6.Applicable for high-pressure measurement. There is no need to make holes in the body of the meter;
7.Can be made into a plug-in type, suitable for large-caliber measurement, small pressure loss, low price, and can be taken out continuously.
8.Explosion-proof type flow meter can used in corresponding explosion- proof area.
