Cast Aluminum Radar Level Transmitter Parabolic Antenna For Tank Height Measurement

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

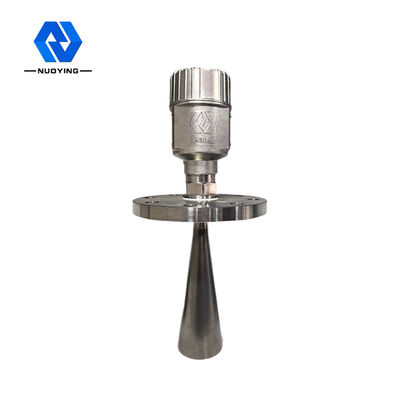

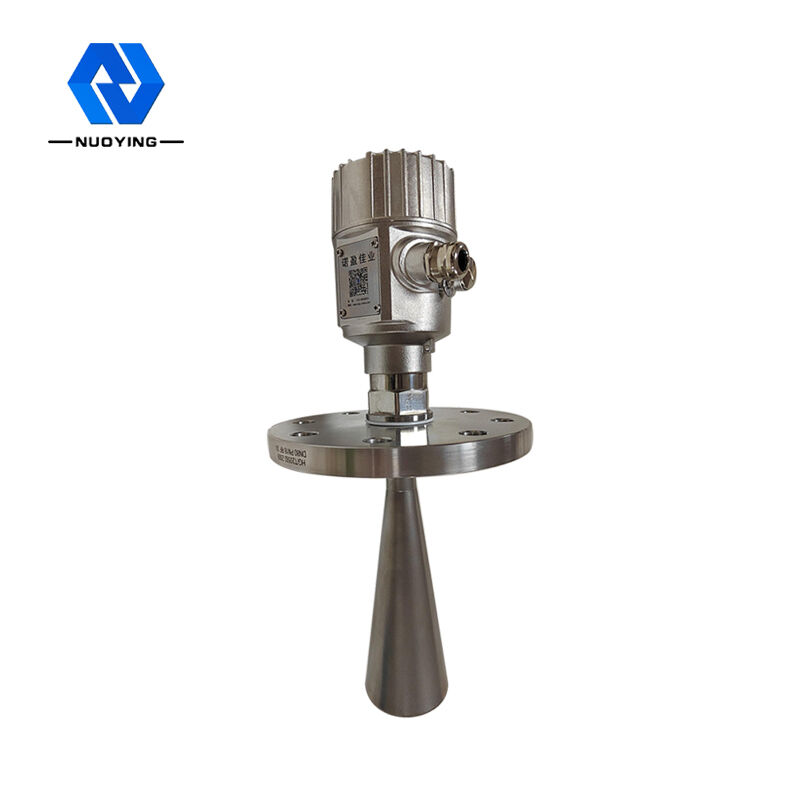

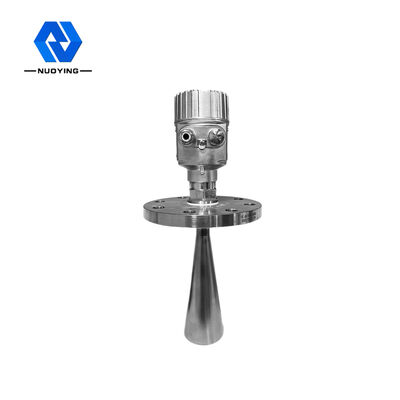

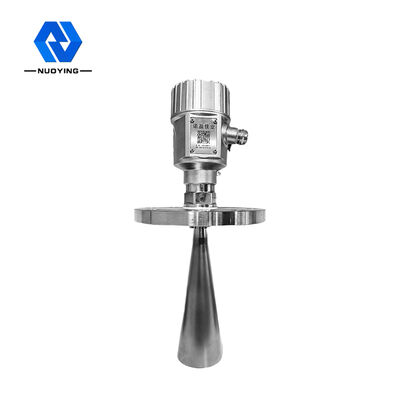

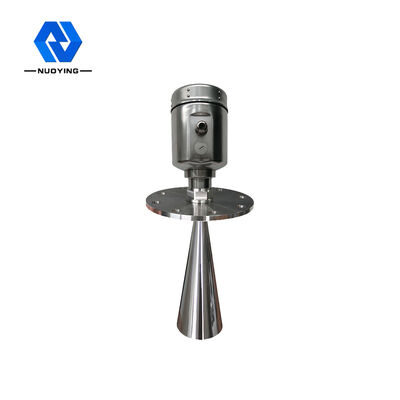

Cast Aluminum Radar Level Transmitter Parabolic Antenna For Tank Height Measurement

Cast Aluminum Radar Level Transmitter Parabolic Antenna For Tank Height Measurement
Cast Aluminum Radar Level Transmitter Parabolic Antenna For Tank Height Measurement

Large Image :  Cast Aluminum Radar Level Transmitter Parabolic Antenna For Tank Height Measurement

Product Details:
Place of Origin: Xi'an
Brand Name: nuoyingjiaye
Certification: CE
Model Number: NYRD-810
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $400 to $1800
Packaging Details: carton
Payment Terms: T/T
Supply Ability: 500 pcs/ pre month

Cast Aluminum Radar Level Transmitter Parabolic Antenna For Tank Height Measurement

Description
Antenna Material: 304 316L 316L: Parabolic
Case Material: Cast Aluminum Case Echo Sampling: 100 Times/s
Operating Temperature: -40~80℃ Measuring Range: 80m
Power: 3w
High Light:

Parabolic Antenna Radar Level Sensor

,

Cast Aluminum Radar Level Gauge

,

Tank Height Measurement Guided Wave Radar

Cast Aluminum Radar Level Transmitter Parabolic Antenna For Tank Height Measurement



Radar Level Meter Working Principle



Measurement principle The radar level meter transmits a microwave pulse signal with a narrow J and very low energy through an antenna. This pulse signal is transmitted in space at the speed of light and is reflected when it encounters the measured medium. The reflected signal is received by the instrument, and the pulse signal is transmitted and the pulse signal is received. The time interval is proportional to the distance between the reference plane and the surface of the measured medium. The distance between the antenna and the surface of the medium can be measured by measuring the time interval between transmission and reception.



Description of Radar Level Meter
High Light:

Parabolic Antenna Radar Level Gauge

Tank Height Measurement Radar Level Gauge

Parabolic Antenna radar tank gauge



Radar Level Meter Technical Parameter



Typical application Monitoring Solids, dust, particles, etc
Transmit frequency 26GHz
Accuracy 3mm
Range 80m
Antenna material 304 316L (optional)
Echo sampling 100 times/s
Process temperature -40~130℃
Ambient humidity 0~90%
Resolution 1mm
Process connection Flange or bracket installation
Electrical Interface M20×1. 5, ½ " NPT
Signal output 4...20mA/HART/RS485/Modbus...
Supply power 24V DC (optional)
Power 3W
Explosion-proof grade ExiaⅡCT6(optional)
Protection class IP67



Note: Products can be customized according to the specific requirements of users!
