|Antenna Form:||Cable Type，pole Type (optional)||Length:||≤20 Meters|
|Measuring Point:||Thread，Flange(optional)||Ambient Temperature:||6-16 Points|
|Temperature Measurement Range:||-40℃ - + 120 ℃||Material:||Stainless Steel|
|Power Supply:||24V DC||Communication Mode:||RS485 MODBUS|
Pole Antenna Temperature Transducer,
Intelligent Temperature Indicator Transmitter,
Multi Point Pressure Temperature Sensor 24V
NT93420 intelligent multi-point temperature transmitter
NT93420 Temperature Transmitter Sensor Operating Principle
The NT93420 intelligent multi-point temperature transmitter can provide the measurement of the multi-point temperature under the liquid level and the multi-point temperature on the liquid level. Through the measured values of these temperature points, it is possible to calculate The average temperature under the liquid level, the average temperature above the liquid level, and the average temperature in the tank provide the basis for accurate calculation of the liquid quality.
NT93420 Temperature Transmitter Sensor Technical Parameter

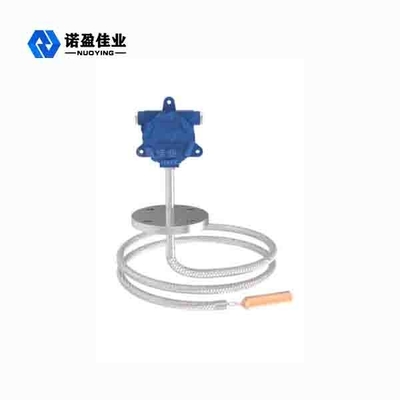

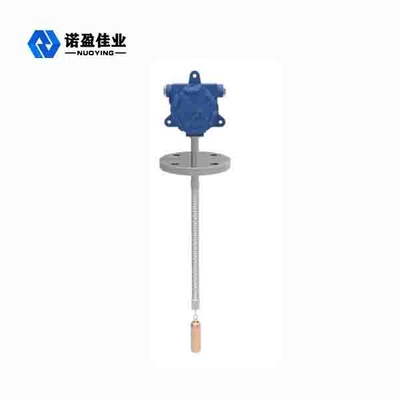

|Antenna form||Cable type,pole type (optional)|
|Power supply||24V DC|
|Measuring point||6-16 points|
|Communication mode||RS485 MODBUS|
|Temperature measurement range||-40℃ - + 120 ℃|
|Operating temperature||-40℃ - + 60 ℃|
|Flange mounting||DN80, PN10, DN50, PN10, or to order(Can be customized upon request)|
※ Note: Products can be customized according to the specific requirements of users!
NT93420 intelligent multi-point temperature transmitter is suitable for various liquid media in the temperature range of -40℃～120℃. The number and length of temperature points can be customized according to user needs. The explosion-proof form of the NT93420 multi-point thermometer is explosion-proof, which can operate reliably in a variety of flammable and explosive occasions. It is suitable for temperature detection of various liquid storage tanks in petroleum, chemical, metallurgy, electric power, national defense and other departments.
