Product Details:
|
| Product Name: | Hard Insulating RF Admittance Level Transmitter Rod Type | Type: | Rod |
|---|---|---|---|
| Output: | 4-20mA | Power: | 24VDC |
| Measuring Range: | 0-6m | Process Temperature: | -40～150℃ |
| Protection Class: | IP67 | Material: | SS 304 |
| High Light: | Rod Type Admittance Type Level Sensor,Insulating Rf Admittance Level Sensor,Hard RF Admittance Level Transmitter |
||

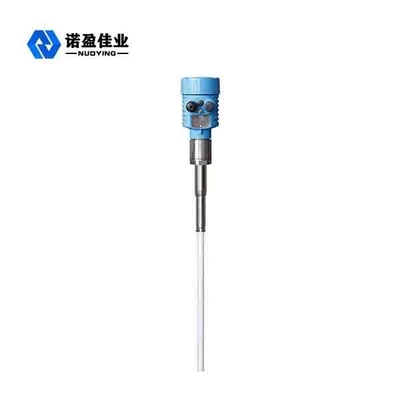

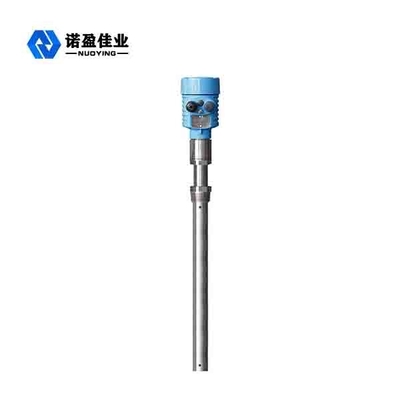

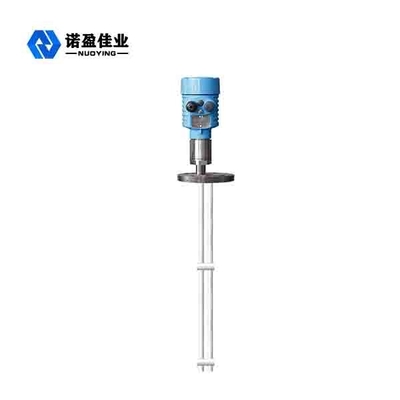

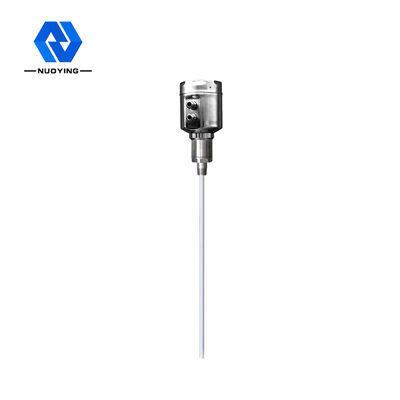

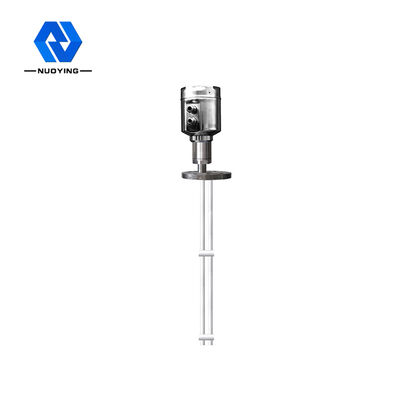

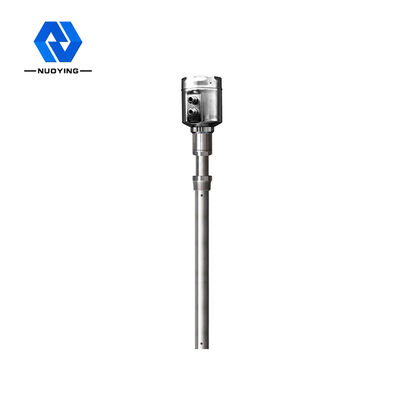

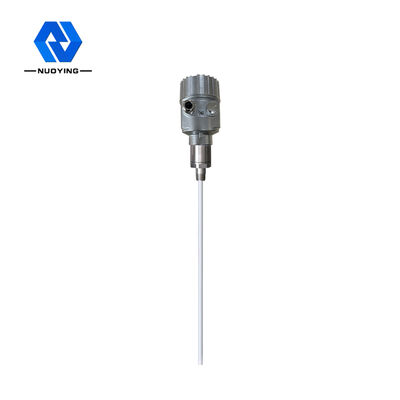

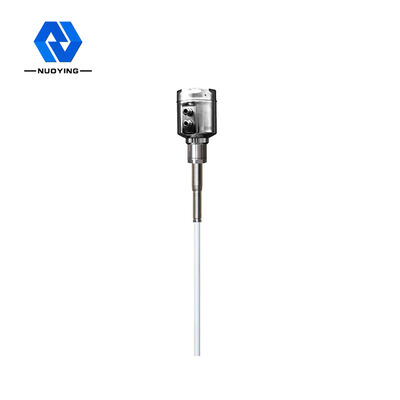

Hard Insulating RF Admittance Level Transmitter Rod Type
The working principle of Admittance Level Transmitter
Radio frequency admittance measurement technology is a level measurement technology with unique advantages. Although the concept is very similar to the general capacitive measurement technology, the RF admittance technology adds a Driving-Shield circuit and a chopper circuit in the electronic unit, so it can realize the independent measurement of impedance and capacitive reactance. It can be calculated by the laws of physics that the magnitude of the impedance and capacitive reactance of any hanging material is equal, so the effect caused by the hanging material can be measured and eliminated from the total output by the phase shift of the oscillating circuit.
Technical Parameter of RF Admittance Level Transmitter
| Applications | Interface, power - off, strong mixing occasions |
| Probe type | Hard insulating rod |
| Measuring Range | 0~6m |
| Process temperature | -40～150℃ |
| Ambient temperature | -40 ℃ ~ + 70 ℃ |
| Storage temperature | -20 ℃ ~ + 65 ℃ |
| Process pressure | -0.1～2.5MPa |
| Power supply | (13-35)vDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process connection | Thread/Flange(selective) |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6(selective) |
| Delay: | 0 ~ 30 s adjustable |
