Product Details:
|
| Typical Application: | Solids, Particles And Dust | Antenna Material: | 316L(optional) |
|---|---|---|---|
| Measuring Range: | 35m | Power Supply: | 24VDC(Two Lines, Four Lines) |
| Medium Temperature: | -40~+250℃ | Process Connection: | Bracket, Flange(optional) |
| Process Pressure: | -0.1~4.0MPa | Antenna Form: | Horn Type |
| Highlight: | Particles Radar Type Level Transmitter,Dust Radar Level Switch,35m Radar Level Sensor |
||

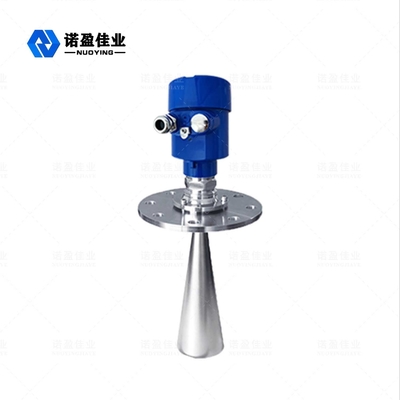

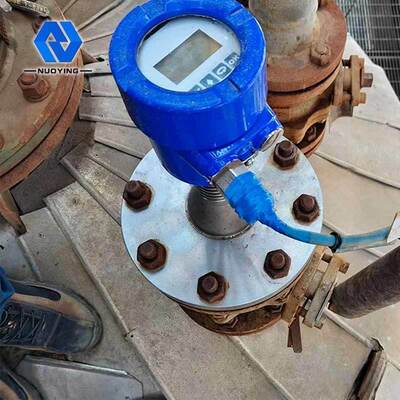

Discounted Horn Type Solid 26GHz NYRD809 Radar Level Transmitter
26GHz NYRD809 Radar Level Transmitter Working Principle
The radar level antenna emits a narrow microwave pulse and transmits it down through the antenna. After the pulse touches the surface of the medium being measured, it is reflected back and accepted by the antenna system again, transmitting the signal to the electronic circuit part automatically converted into a object position signal(because the pulse propagation speed is extremely fast, The time it takes for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous.)
26GHz NYRD809 Radar Level Transmitter Design Feature

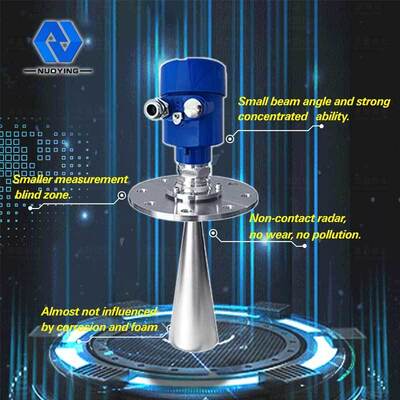

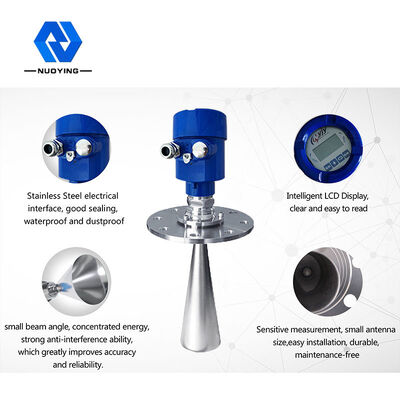

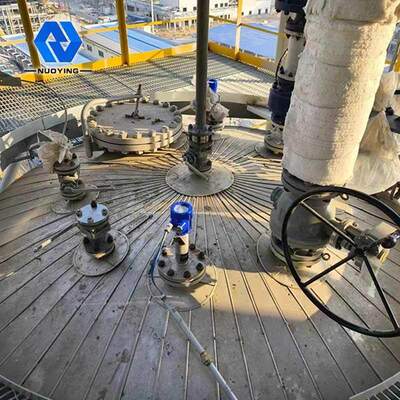

1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
26GHz NYRD809 Radar Level Transmitter Techincal Parameters
| Typical application | Solids, particles and strong dust. |
| Antenna material | 316L(optional) |
| Measuring range | 35m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines) |
| Medium temperature | -40~+250℃ |
| Process connection | bracket, flange(optional) |
| Process pressure | -0.1~4.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.

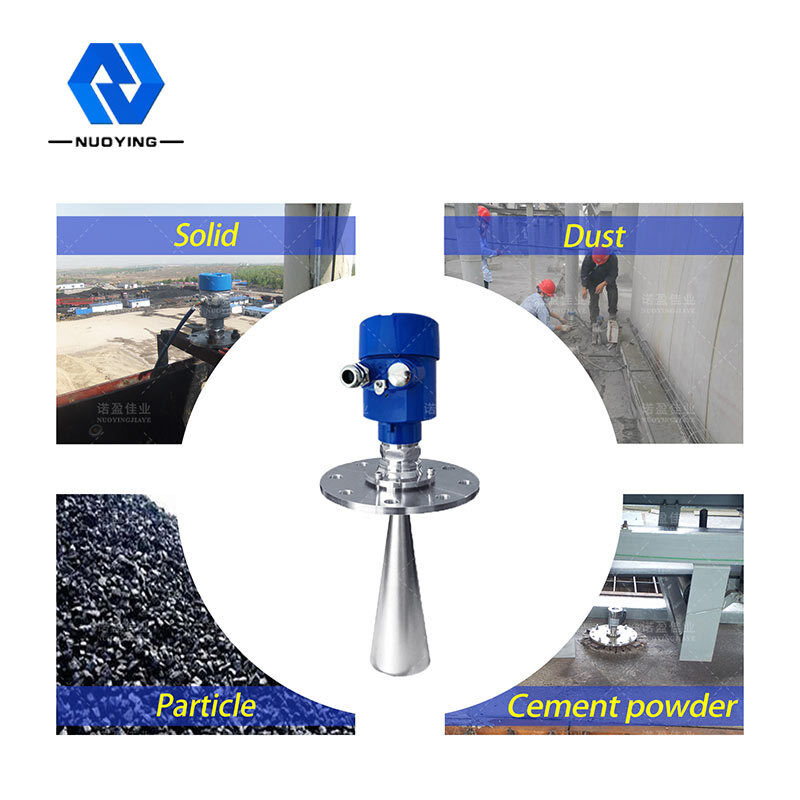

26GHz NYRD808 Radar Level Transmitter Application Field
1.Power plants: Reservoirs, steam ladles, etc.
2.Oilfield: Three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
3.Chemical: Raw material silo, ammonia tank, asphalt storage tank, etc.
4.Metallurgy: Raw material silos, auxiliary material silos, etc.
5.Foodstuffs: Raw sugar storage tank, etc.
6.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
7.Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
8.Other: Quarry, coal mine, environmental protection and other industries.
